VBsemi ElecDatasheet (PDF)

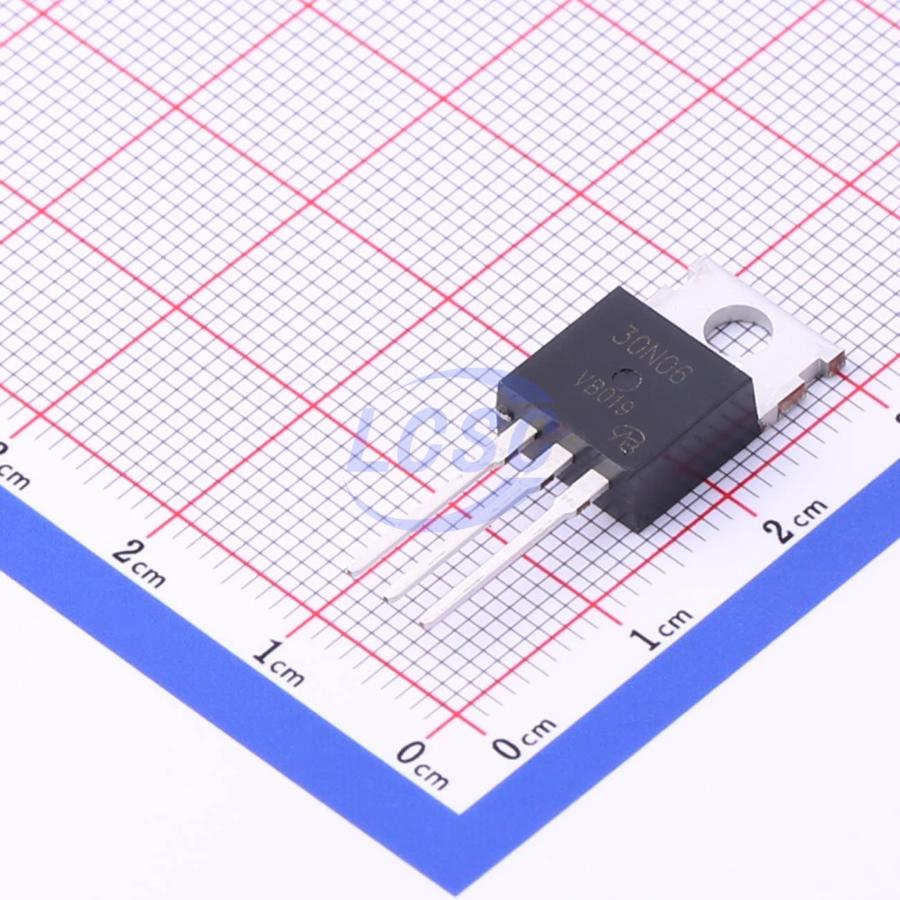

VBZM30N06
N-Channel 60V 50A 150W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 60V 50A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZM30N06
- Store part #
- C700708
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C700708
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.86 | ₹72.86 |
| 10+ | ₹58.46 | ₹584.60 |
| 50+ | ₹49.00 | ₹2,450.00 |
| 100+ | ₹41.26 | ₹4,126.00 |
| 500+ | ₹37.82 | ₹18,910.00 |
| 1,000+ | ₹35.89 | ₹35,890.00 |
1 × ₹72.86
₹72.86
excl. GST
₹85.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBZM30N06
₹72.86 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 920pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 1.9nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 170pF
- RDS(on)
- 24mΩ@10V;28mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 66nC@5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.76 g
Overview
Key features
- Halogen-free According to IEC 61249-2 Definition
- Surface Mount
- Available in Tape and Reel
- Dynamic dV/dt Rating
- Logic-Level Gate Drive
- Fast Switching
- Compliant to RoHS Directive 2002/95/EC
