VBsemi ElecDatasheet (PDF)

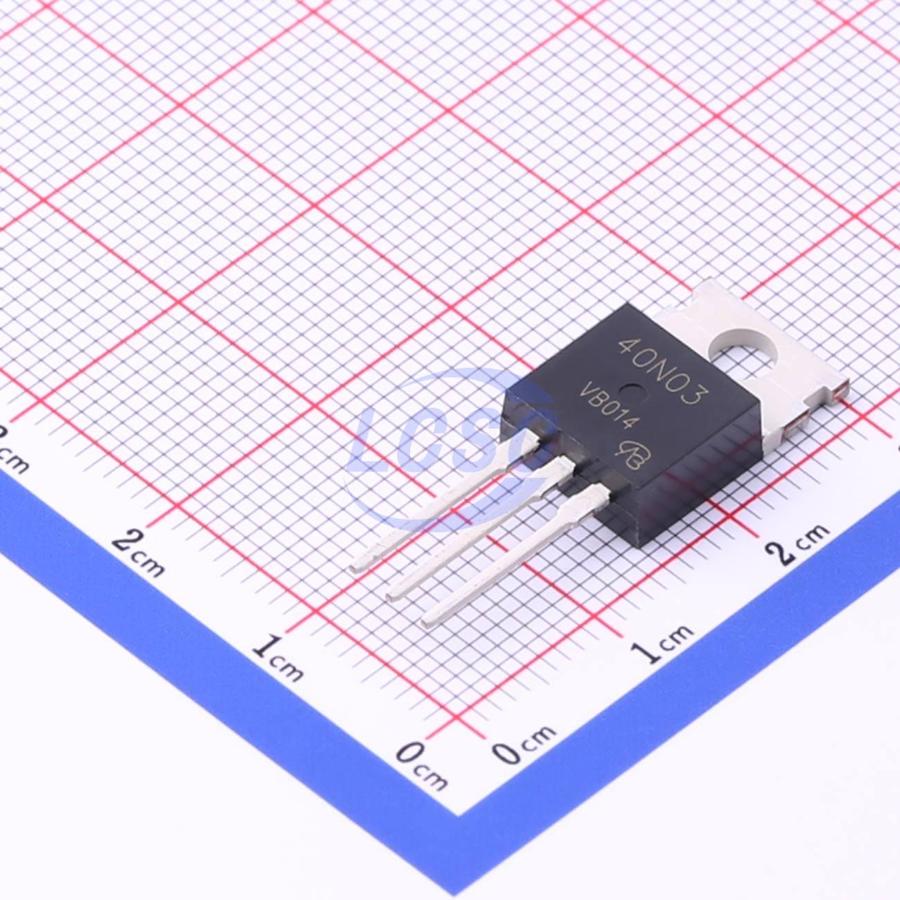

VBZM40N03
N-Channel 30V 80A 3.75W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 30V 80A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZM40N03
- Store part #
- C700710
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C700710
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.87 | ₹71.87 |
| 10+ | ₹57.09 | ₹570.90 |
| 50+ | ₹45.71 | ₹2,285.50 |
| 100+ | ₹37.93 | ₹3,793.00 |
| 500+ | ₹34.33 | ₹17,165.00 |
| 1,000+ | ₹32.14 | ₹32,140.00 |
1 × ₹71.87
₹71.87
excl. GST
₹84.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBZM40N03
₹71.87 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 525pF
- Current - Continuous Drain(Id)
- 80A
- Ciss-Input Capacitance
- 1.6nF
- Pd - Power Dissipation
- 3.75W
- Reverse Transfer Capacitance (Crss)
- 370pF
- RDS(on)
- 6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.72 g
Overview
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NDP603AL-VB#C20755257VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹75.62 · 20 in stock | View |
 | FDP6030BL-VB#C20755654VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹77.94 · 20 in stock | View |
 | 2SK1388-VB#C29778724VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹72.47 · 10 in stock | View |
 | P40NF03L-VB#C20755138VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹75.62 · 20 in stock | View |
 | CEP3120-VB#C20755422VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 9 | ₹72.26 · 9 in stock | View |
