VBsemi ElecDatasheet (PDF)

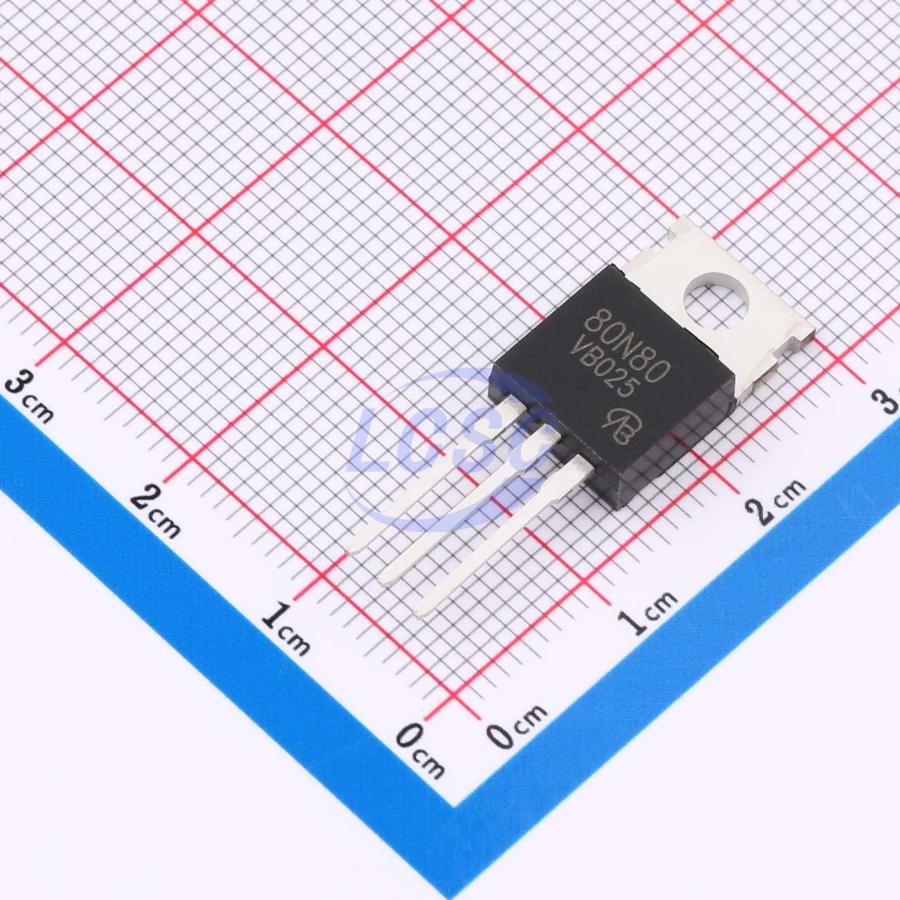

VBZM80N80
N-Channel 80V 100A 180W Through Hole TO-220AB-3
TO-220AB-3RoHSActive
MOSFET N-CH 80V 100A TO-220AB-3
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZM80N80
- Store part #
- C700727
- Package / case
- TO-220AB-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C700727
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹165.27 | ₹165.27 |
| 10+ | ₹136.53 | ₹1,365.30 |
| 50+ | ₹117.97 | ₹5,898.50 |
| 100+ | ₹100.01 | ₹10,001.00 |
| 500+ | ₹92.03 | ₹46,015.00 |
| 1,000+ | ₹88.43 | ₹88,430.00 |
1 × ₹165.27
₹165.27
excl. GST
₹195.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBZM80N80
₹165.27 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 80V
- Output Capacitance(Coss)
- 1.12nF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 3.855nF
- Pd - Power Dissipation
- 180W
- Reverse Transfer Capacitance (Crss)
- 376pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.79 g
Overview
Applications
- Primary-side switching
- Synchronous rectification
- DC/AC inverter
- LED backlighting
Key features
- Trench power MOSFET
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
