VBsemi ElecDatasheet (PDF)

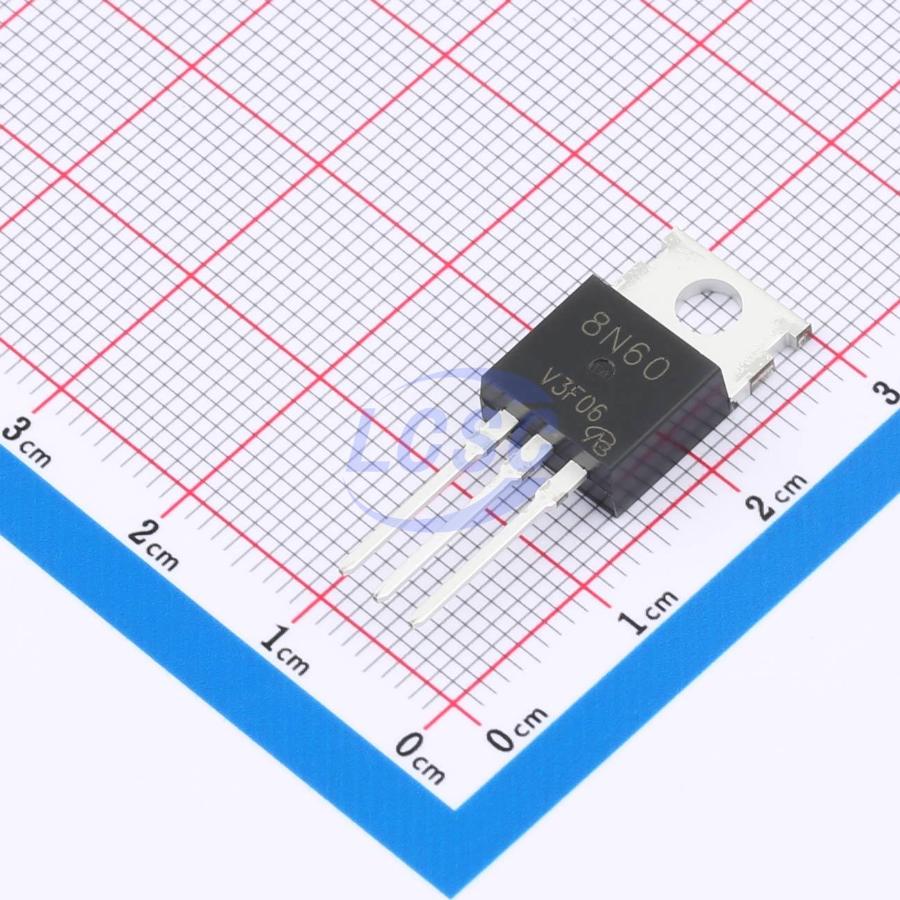

VBZM8N60
N-Channel 600V 8A 170W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 600V 8A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZM8N60
- Store part #
- C700729
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C700729
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.19 | ₹107.19 |
| 10+ | ₹87.64 | ₹876.40 |
| 50+ | ₹70.86 | ₹3,543.00 |
| 100+ | ₹61.28 | ₹6,128.00 |
| 500+ | ₹55.50 | ₹27,750.00 |
| 1,000+ | ₹52.50 | ₹52,500.00 |
1 × ₹107.19
₹107.19
excl. GST
₹126.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBZM8N60
₹107.19 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 1.4nF
- Pd - Power Dissipation
- 170W
- Reverse Transfer Capacitance (Crss)
- 7.1pF
- RDS(on)
- 780mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 49nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.78 g
Overview
Applications
- Switch mode power supply (SMPS)
- Uninterruptible power supply
- High speed power switching
Key features
- Low gate charge Qg results in simple drive requirement
- Improved gate, avalanche and dynamic dV/dt ruggedness
- Fully characterized capacitance and avalanche voltage and current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IKP06N60T-VB#C19188206VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 16 | ₹144.10 · 16 in stock | View |
 | IRF830APBF-VB#C19190153VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 67 | ₹108.87 · 67 in stock | View |
 | IRFBC40PBF-VB#C19626730VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 47 | ₹125.83 · 47 in stock | View |
 | NP05N50C 2SK3305-VB#C19632136VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹110.93 · 5 in stock | View |
 | SSP7N60-VB#C20417511VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 16 | ₹109.65 · 16 in stock | View |
