VISHAYDatasheet (PDF)

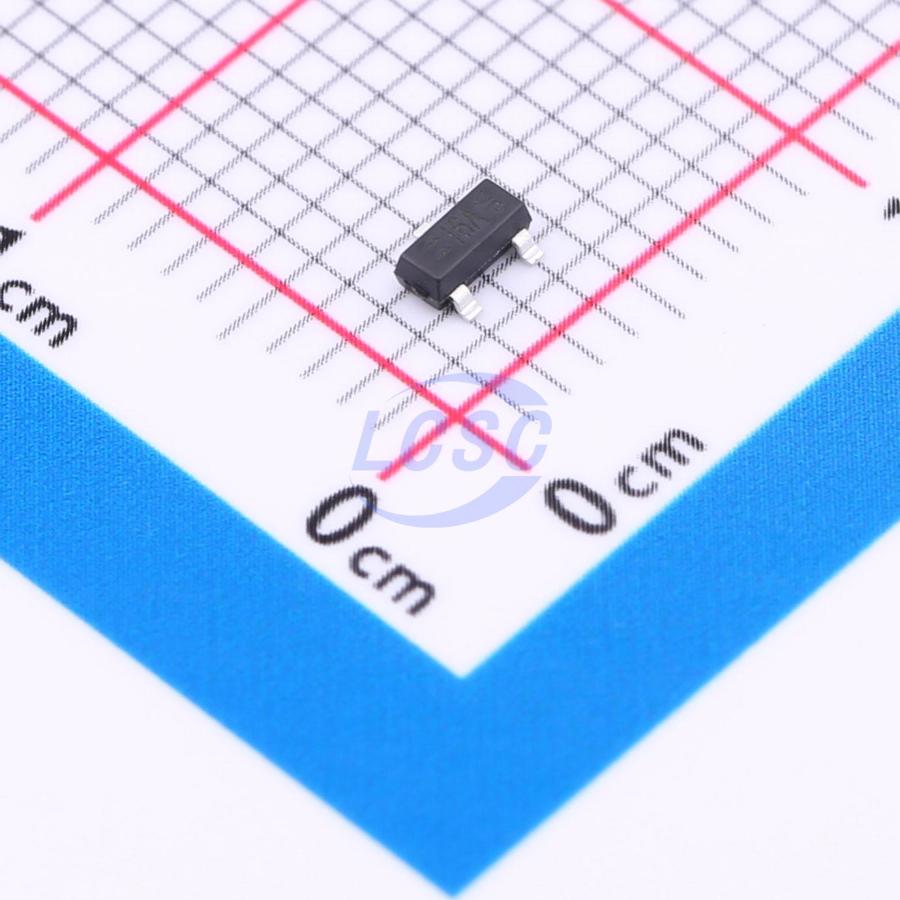

VCAN16A2-03S-E3-08
28VC Clamp 5A@8/20us Ipp ESD DIODE SOT-23-3
SOT-23-3ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- VCAN16A2-03S-E3-08
- Store part #
- C1851980
- Package / case
- SOT-23-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C1851980
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.95 | ₹89.75 |
| 50+ | ₹17.56 | ₹878.00 |
| 150+ | ₹17.30 | ₹2,595.00 |
| 500+ | ₹17.04 | ₹8,520.00 |
5 × ₹17.95
₹89.75
excl. GST
₹105.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
VCAN16A2-03S-E3-08
₹89.75 for 5 + GST
Specifications
- Clamping Voltage
- 28V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 145W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 18.6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 50nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.015 g
Overview
Key features
- For CAN applications
- Small SOT-23 package Pb-free
- 2-line ESD protection e3
- Working range ± 16 V
- Low leakage current IR < 0.05 μA RoHS COMPLIANT
- Low load capacitance CD < 18.5 pF
- ESD immunity acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge
- ESD capability according to AEC-Q101: human body model: class H3B: > 8 kV
- e3 - pins plated with tin (Sn)
- AEC-Q101 qualified available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VCAN16A2-03SHE3-08#C1851981VISHAY · SOT-23-3 | VISHAY | SOT-23-3 | 3 | ₹75.86 · 3 in stock | View |
 | SM15C#C22368657Wild Goose · SOT-23 | Wild Goose | SOT-23 | 820 | ₹7.62 · 820 in stock | View |
