VISHAYDatasheet (PDF)

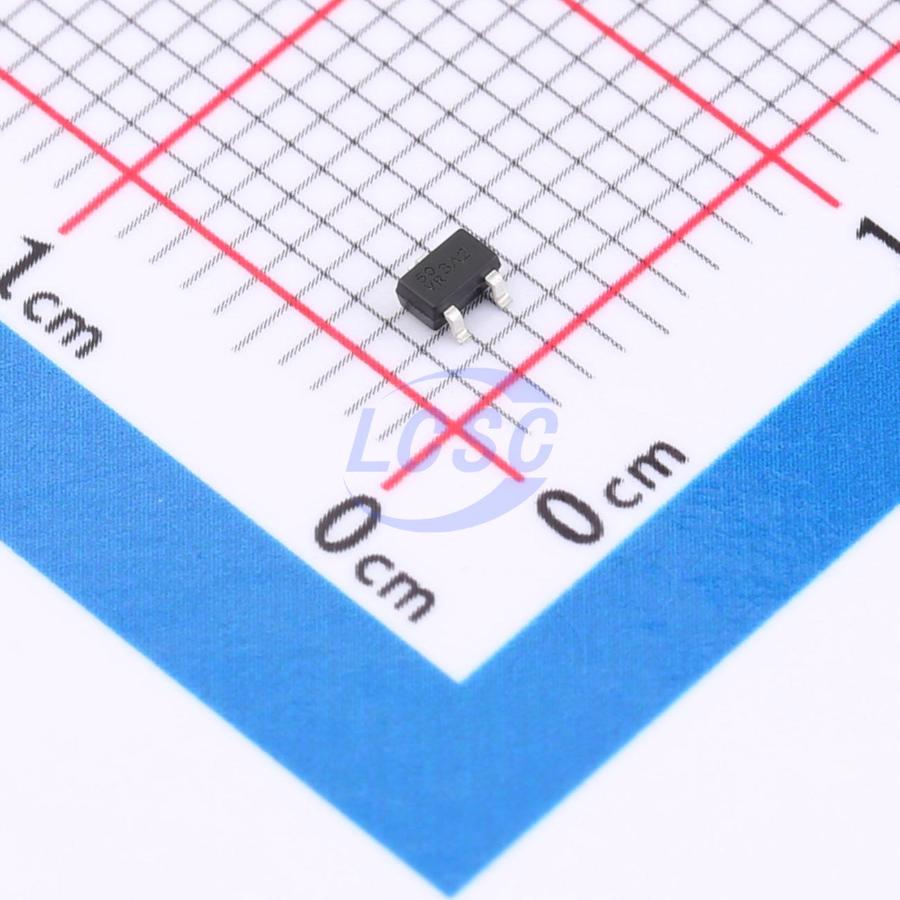

VCAN33A2-03GHE3-08
56VC Clamp 2.5A@8/20us Ipp ESD DIODE SOT-323
SOT-323ROHS3 CompliantActive
ESD DIODE 33VWM 56VC SOT-323
- Manufacturer
- VISHAY
- Manufacturer part #
- VCAN33A2-03GHE3-08
- Store part #
- C1851982
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C1851982
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.63 | ₹188.15 |
| 50+ | ₹29.87 | ₹1,493.50 |
| 150+ | ₹26.54 | ₹3,981.00 |
| 500+ | ₹22.40 | ₹11,200.00 |
| 2,500+ | ₹20.55 | ₹51,375.00 |
| 5,000+ | ₹19.45 | ₹97,250.00 |
5 × ₹37.63
₹188.15
excl. GST
₹222.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
VCAN33A2-03GHE3-08
₹188.15 for 5 + GST
Specifications
- Clamping Voltage
- 46V
- Peak Pulse Current (Ipp)
- 2.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 140W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 40V
- type
- ESD
- Reverse Leakage Current (Ir)
- 50nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 33V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.163 g
Overview
Key features
- For CAN-bus applications
- Small SOT-323 package Pb-free
- T_J max. = 175 °C e3
- 2-line ESD protection
- Working range ± 33 V RoHS COMPLIANT
- Low leakage current I_R < 0.05 μA
- Low load capacitance C_D < 9.5 pF
- ESD immunity acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge
- ESD capability according to AEC-Q101: human body model: class H3B: > 8 kV
- e3 - pins plated with tin (Sn)
- AEC-Q101 qualified available
