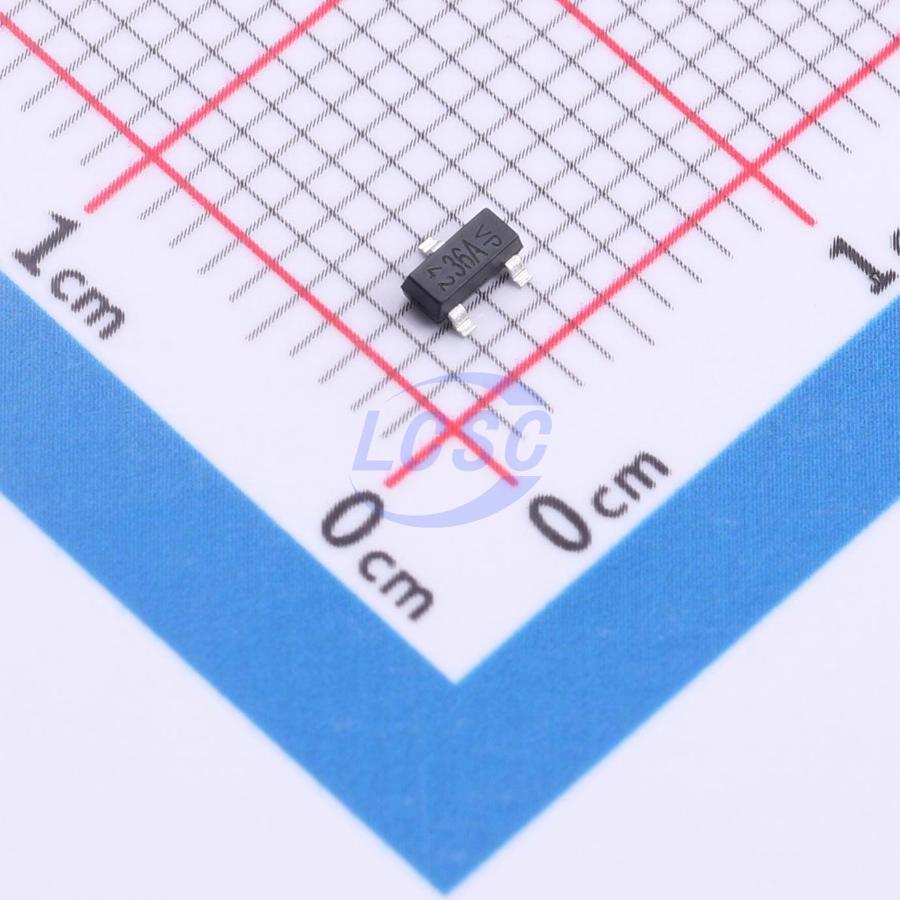

VCAN36A2-03S-E3-08
63VC Clamp 2.4A@8/20us Ipp TVS DIODE SOT-23-3
SOT-23-3ROHS3 CompliantActive
TVS DIODE 36VWM 55VC SOT-23-3
- Manufacturer
- VISHAY
- Manufacturer part #
- VCAN36A2-03S-E3-08
- Store part #
- C3713290
- Package / case
- SOT-23-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C3713290
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.21 | ₹136.05 |
| 50+ | ₹21.51 | ₹1,075.50 |
| 150+ | ₹19.08 | ₹2,862.00 |
| 500+ | ₹16.03 | ₹8,015.00 |
| 3,000+ | ₹14.67 | ₹44,010.00 |
| 6,000+ | ₹13.87 | ₹83,220.00 |
5 × ₹27.21
₹136.05
excl. GST
₹160.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VCAN36A2-03S-E3-08
₹136.05 for 5 + GST
Specifications
- Clamping Voltage
- 55V
- Peak Pulse Current (Ipp)
- 2.4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W
- Number of Channels
- 2
- Voltage - Breakdown
- 39V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 50nA
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.059 g
Overview
Key features
- For CAN and FLEX-bus applications
- Small SOT-23 package
- 2-line ESD protection
- Working range ± 36 V
- Low leakage current IR < 0.05 μA
- Low load capacitance CD < 10 pF
- ESD immunity acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge
- ESD capability according to AEC-Q101: human body model: class H3B: > 8 kV
- e3 - pins plated with tin (Sn)
- AEC-Q101 qualified available
