TECH PUBLIC

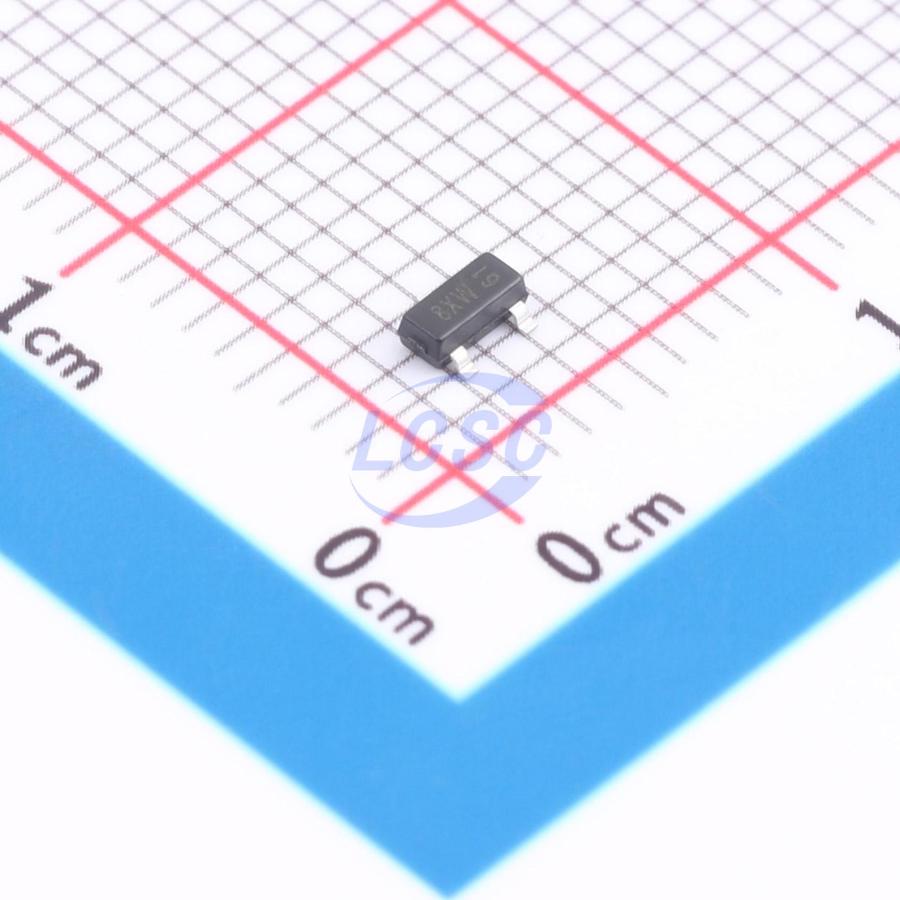

VCAN36A2-03S(TP)

72V 3A@60ns 180W@8/20us 38V Bidirectional 36V SOT-23 TVS Diodes

SOT-23RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: VCAN36A2-03S(TP)
Store part #: C53340850
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,990 in stock

#C53340850

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
5+	₹10.69	₹53.45
50+	₹8.40	₹420.00
150+	₹7.26	₹1,089.00
500+	₹6.42	₹3,210.00
3,000+	₹5.73	₹17,190.00
6,000+	₹5.38	₹32,280.00

Quantity (min 5, multiples of 5)

5 × ₹10.69

₹53.45

excl. GST

₹63.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

VCAN36A2-03S(TP)

₹53.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 72V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 3A@60ns
Peak Pulse Power Dissipation (Ppp): 180W@8/20us
Voltage - Breakdown: 38V
Number of Channels: 2
type: TVS
Reverse Leakage Current (Ir): 100nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1 g

Overview

Applications

Industrial control
Personal digital assistants
Laptop and handheld devices
CAN bus protection
Automotive applications

Key features

Low operating voltage: 36V
Ultra-low capacitance: 4pF
Ultra-low leakage: nanoamp level
Low clamping voltage
IEC 61000-4-2 (ESD) immunity test
Air discharge: ±30kV
Contact discharge: ±30kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
3-pin lead-free package
Lead-free devices
Response time typically < 1 ns
Package: SOT-23
Lead finish: Matte tin
Case material: "Green" molding compound
IEC 61000-4-2 (ESD) immunity test
