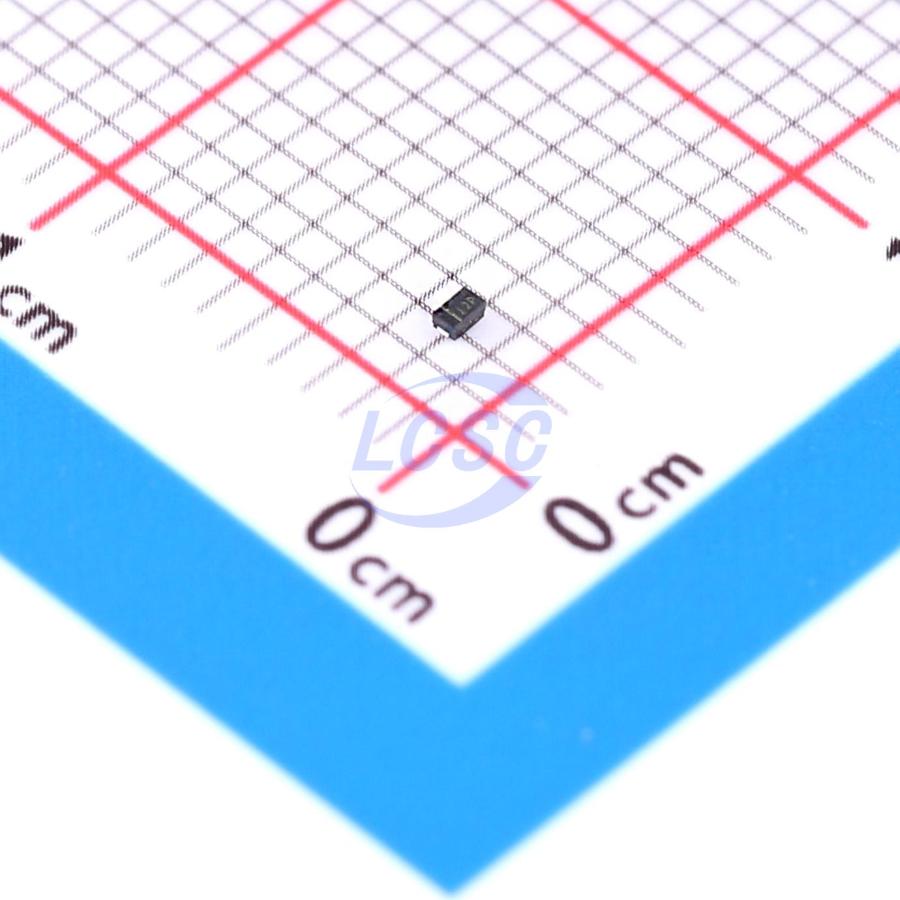

VCUT0714BHD1HG3-08
15VC 30VC Clamp 3.6A@8/20us 2A@8/20us Ipp TVS DIODE DFN1006-2A
- Manufacturer
- VISHAY
- Manufacturer part #
- VCUT0714BHD1HG3-08
- Store part #
- C3714907
- Package / case
- DFN1006-2A
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C3714907
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.72 | ₹163.60 |
| 50+ | ₹32.18 | ₹1,609.00 |
| 150+ | ₹31.80 | ₹4,770.00 |
| 500+ | ₹31.45 | ₹15,725.00 |
5 × ₹32.72
₹163.60
excl. GST
₹193.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
VCUT0714BHD1HG3-08
₹163.60 for 5 + GST
Specifications
- Clamping Voltage
- 15V;30V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 3.6A@8/20us;2A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 50W;61W
- Number of Channels
- 1
- Voltage - Breakdown
- 7.3V;14.5V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 7V;14V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
The VCUT0714BHD1 is a bidirectional but asymmetrical (BiAs) ESD protection device which clamps positive and negative overvoltage transients to ground. Connected between the signal or data line and the ground the VCUT0714BHD1 offers a high isolation (low leakage current, small capacitance) within the specified working range of -7 V to +14 V or -14 V and +7 V. Due to the short leads and small package size of the tiny DFN1006-2A package the line inductance is very low, so that fast transients like an ESD strike can be clamped with minimal over- or undershoots.
Key features
- Ultra compact DFN1006-2A
- AEC-Q101 qualified available
- Low package height
- 1-line ESD protection
- Working range -7 V up to +14 V or -14 V up to +7 V
- Low leakage current <0.1 μA
- Low load capacitance typical CD = 8 pF
- ESD immunity acc. IEC 61000-4-2 ± 25 kV contact discharge ± 30 kV air discharge
- e3 - Sn Tin plated exposed side wall of lead frame - Soldering can be checked by standard vision inspection - AOI = automated optical inspection - No X-ray necessary
