AnaSemDatasheet (PDF)

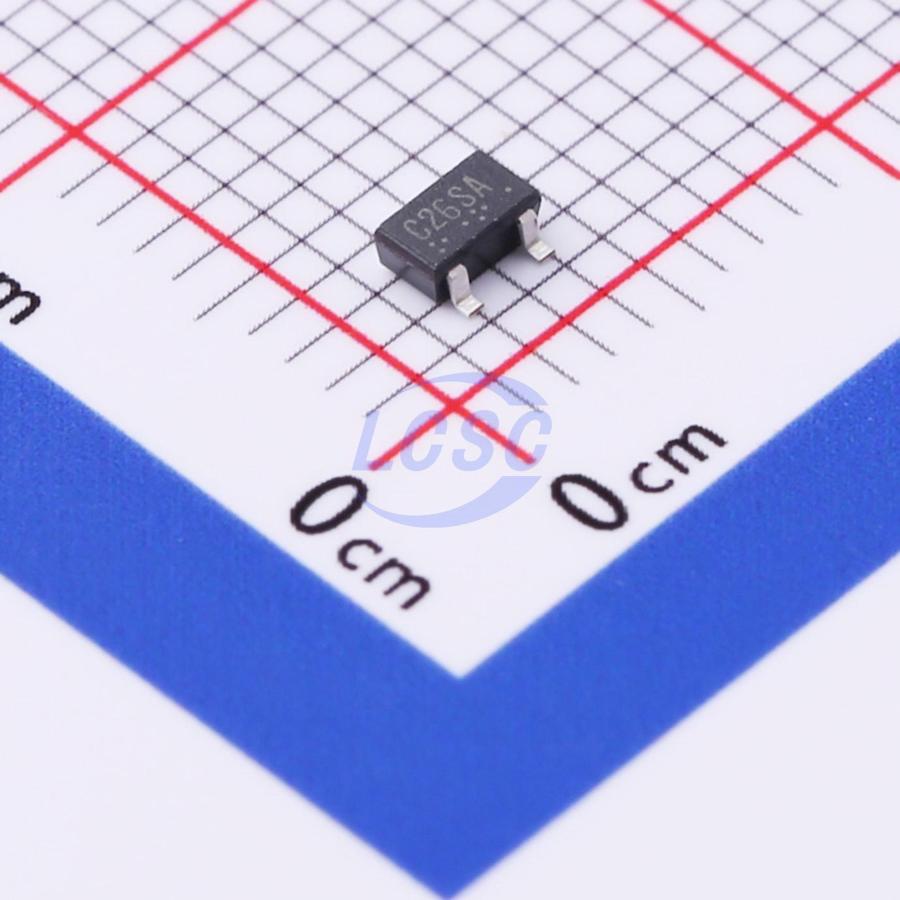

VDD261MCTA
SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
Low voltage, Low power, High detect accuracy CMOS Voltage Detector
- Manufacturer
- AnaSem
- Manufacturer part #
- VDD261MCTA
- Store part #
- C697876
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C697876
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.19 | ₹91.90 |
| 100+ | ₹7.36 | ₹736.00 |
| 300+ | ₹6.44 | ₹1,932.00 |
| 3,000+ | ₹5.76 | ₹17,280.00 |
| 6,000+ | ₹5.20 | ₹31,200.00 |
| 9,000+ | ₹4.92 | ₹44,280.00 |
10 × ₹9.19
₹91.90
excl. GST
₹108.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VDD261MCTA
₹91.90 for 10 + GST
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The VDD series are delay circuit built-in voltage detectors with low voltage, low power consumption and high accuracy. The accuracy of the detection voltage is detected based on a voltage reference of high accuracy that the temperature coefficient is controlled. The detection voltage is made in high accuracy by using the laser trimming technology. Because the delay circuit is built-in, delay time can be set without any external components.
Applications
- Reset of microprocessor
- Power-on reset of system
- Charge detection of battery
- Battery back-up of memory
- Monitoring of battery life time
- Delay circuit
Key features
- Detection voltage range: 1.8V ~ 6.0V (selectable with a step of 0.1V)
- Operating voltage range: 0.7V ~ 6.0V
- High accuracy detection voltage: ±1% (/DET = 1.8V ~ 6.0V)
- Detection voltage temperature characteristics: Typ. ±20ppm/°C (VDET = 1.8V ~ 6.0V)
- Delay time: S/10 ~ 50ms, M/50 ~ 200ms, L/80 ~ 400ms
- Output types: CMOS or N-channel open drain
- Low current consumption: Typ. 0.6μA (VIN = 1.5V)
- Operating temperature range: -40°C ~ +85°C
- Small package: SOT - 23 (2.9×2.8×1.1mm)
