VISHAYDatasheet (PDF)

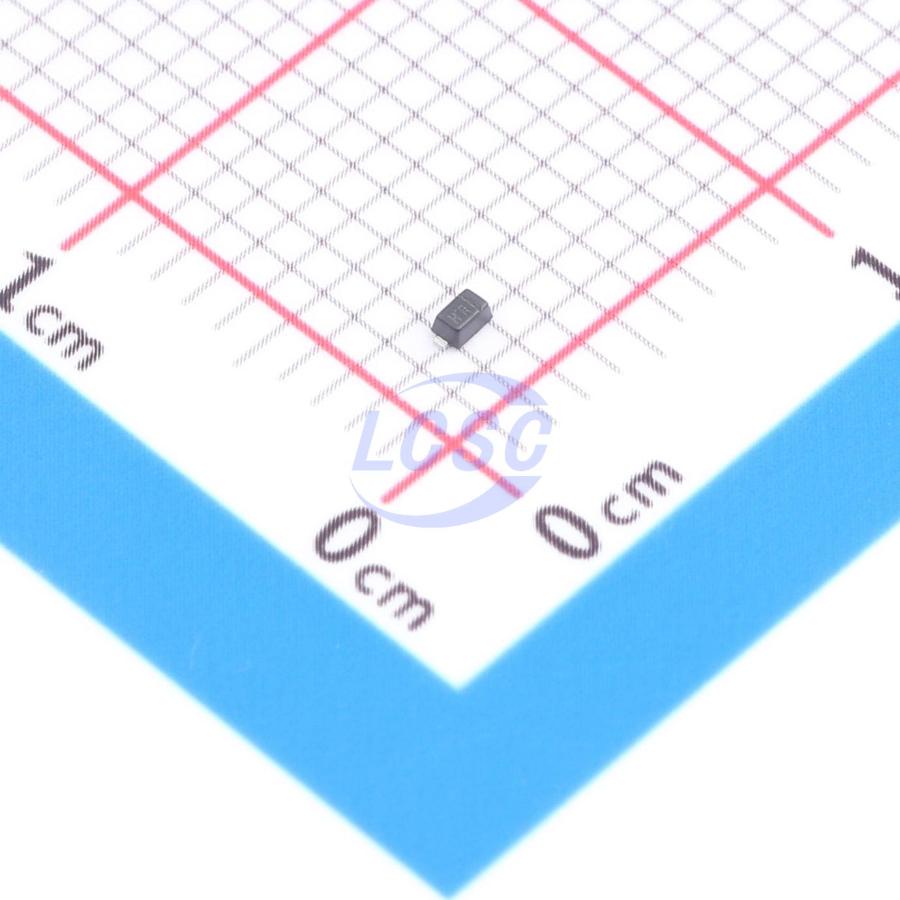

VESD05B1-02VHG3-08
9.5VC Clamp 3.5A@8/20us Ipp TVS DIODE SOD-523
SOD-523ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- VESD05B1-02VHG3-08
- Store part #
- C3700753
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,510 in stock
#C3700753
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.08 | ₹120.40 |
| 50+ | ₹23.67 | ₹1,183.50 |
| 150+ | ₹23.40 | ₹3,510.00 |
| 500+ | ₹23.14 | ₹11,570.00 |
5 × ₹24.08
₹120.40
excl. GST
₹142.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
VESD05B1-02VHG3-08
₹120.40 for 5 + GST
Specifications
- Clamping Voltage
- 9.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 3.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 40W
- Number of Channels
- 1
- Voltage - Breakdown
- 6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 10nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.008 g
