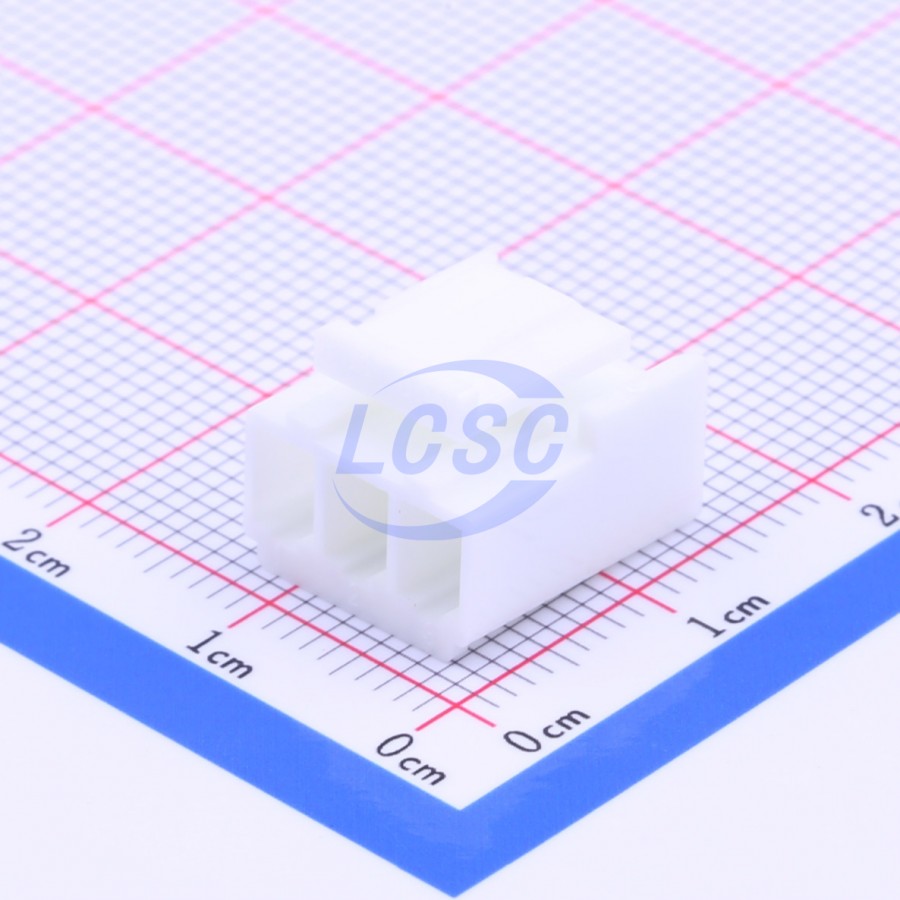

VHR-3N
Connector Housing 3 Position 3.96mm Pitch Single Row VH Series PA6 -25℃~+85℃
PopularP=3.96mmROHS3 CompliantActive
CONN HOUSING 3POS 3.96mm SINGLE ROW VH
- Manufacturer
- JST
- Manufacturer part #
- VHR-3N
- Store part #
- C157899
- Package / case
- P=3.96mm
- Category
- Rectangular Connector Housings
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
31,740 in stock
#C157899
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.34 | ₹43.40 |
| 100+ | ₹3.41 | ₹341.00 |
| 300+ | ₹2.99 | ₹897.00 |
| 1,000+ | ₹2.69 | ₹2,690.00 |
| 5,000+ | ₹2.55 | ₹12,750.00 |
| 10,000+ | ₹2.47 | ₹24,700.00 |
10 × ₹4.34
₹43.40
excl. GST
₹51.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
VHR-3N
₹43.40 for 10 + GST
Specifications
- Pitch
- 3.96mm
- Flame Retardant Rating
- UL94V-0
- Number of Rows
- 1
- With Wings
- Without Fins
- Operating Temperature
- -25℃~+85℃
- Reference Series
- VH
- Holes Structure
- 1x3P
- Color
- White
- Plastic Material
- PA6
- Number of PINs Per Row
- 3
- With Locker
- Locking
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.626 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VH-3Y#C22435543DLL · P=3.96mm | DLL | P=3.96mm | 1,820 | ₹5.97 · 1,820 in stock | View |
 | VH3.96-3Y#C22451295SHOU HAN · P=3.96mm | SHOU HAN | P=3.96mm | 35,550 | ₹2.42 · 35,550 in stock | View |
 | HC-VH-3Y#C2982062HCTL · P=3.96mm | HCTL | P=3.96mm | 1,840 | ₹5.01 · 1,840 in stock | View |
 | A3963H-3P#C339607CJT(Changjiang Connectors) · P=3.96mm | CJT(Changjiang Connectors) | P=3.96mm | 18,260 | ₹4.96 · 18,260 in stock | View |
 | HX VH3.96-3P#C34373545hanxia · P=3.96mm | hanxia | P=3.96mm | 10,400 | ₹2.62 · 10,400 in stock | View |
