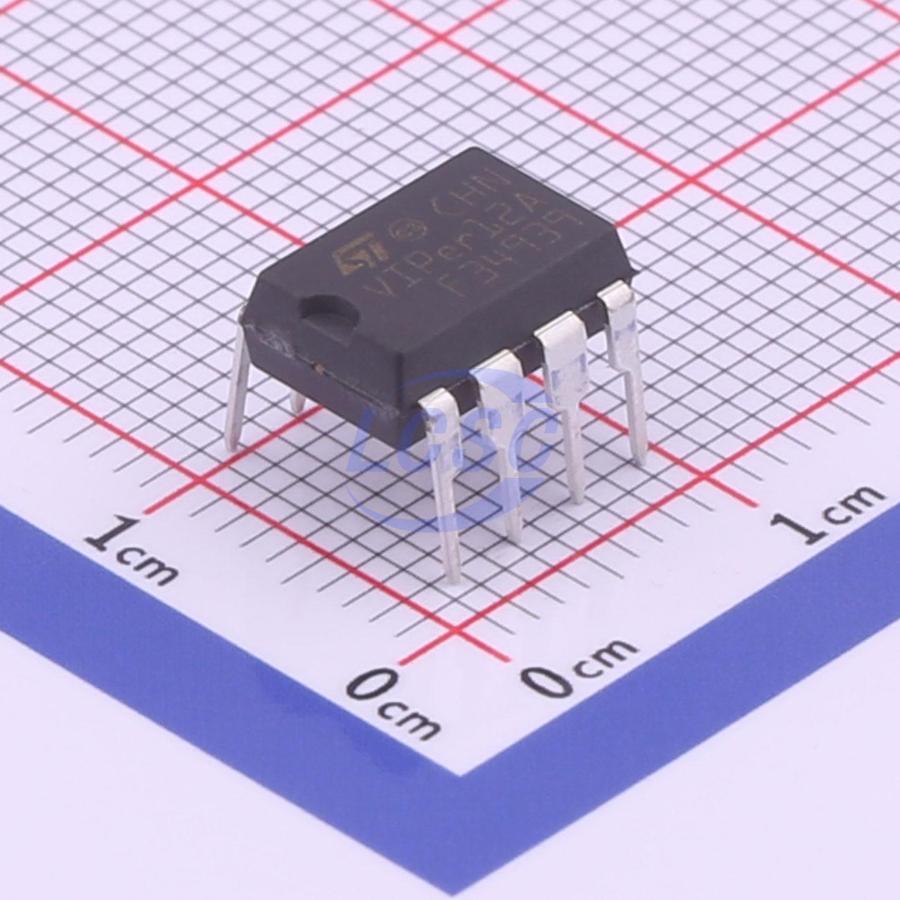

VIPER12ADIP-E
60kHz 9V~38V 730V Flyback DIP-8 AC DC Converters, Offline Switchers RoHS
DIP-8ROHS3 CompliantActive
Low power offline switched-mode power supply primary switcher
- Manufacturer
- ST
- Manufacturer part #
- VIPER12ADIP-E
- Store part #
- C5317
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
79,489 in stock
#C5317
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.03 | ₹71.03 |
| 10+ | ₹55.18 | ₹551.80 |
| 50+ | ₹45.62 | ₹2,281.00 |
| 100+ | ₹38.67 | ₹3,867.00 |
| 500+ | ₹36.71 | ₹18,355.00 |
| 1,000+ | ₹35.63 | ₹35,630.00 |
1 × ₹71.03
₹71.03
excl. GST
₹83.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
VIPER12ADIP-E
₹71.03 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Frequency - Switching
- 60kHz
- Voltage - Supply
- 9V~38V
- Voltage - Breakdown
- 730V
- Topology
- Flyback
- Features
- High voltage direct start;Light load efficient mode;Under-voltage lockout;Over Voltage Protection;Over Current Protection;Overtemperature protection (OTP)
- Working Mode
- PWM Modulation
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.92 g
Overview
The VIPER12A combines a dedicated current mode PWM controller with a high voltage power MOSFET on the same silicon chip. Typical applications cover off line power supplies for battery charger adapters, standby power supplies for TV or monitors, auxiliary supplies for motor control, etc. The internal control circuit offers the following benefits: Large input voltage range on the VDD pin accommodates changes in auxiliary supply voltage (This feature is well adapted to battery charger adapter configurations), automatic burst mode in low load condition and overvoltage protection in HICCUP mode.
Applications
- Off line power supplies for battery charger adapters
- Standby power supplies for TV or monitors
- Auxiliary supplies for motor control
Key features
- Fixed 60 kHz switching frequency
- 9 V to 38 V wide range VDD voltage
- Current mode control
- Auxiliary undervoltage lockout with hysteresis
- High voltage start-up current source
- Overtemperature, overcurrent and overvoltage protection with auto-restart
- Typical power capability:
- European (195 - 265 Vac) 8 W for SO-8, 13 W for DIP-8
- European (85 - 265 Vac) 5 W for SO-8, 8 W for DIP-8
