ROHMDatasheet (PDF)

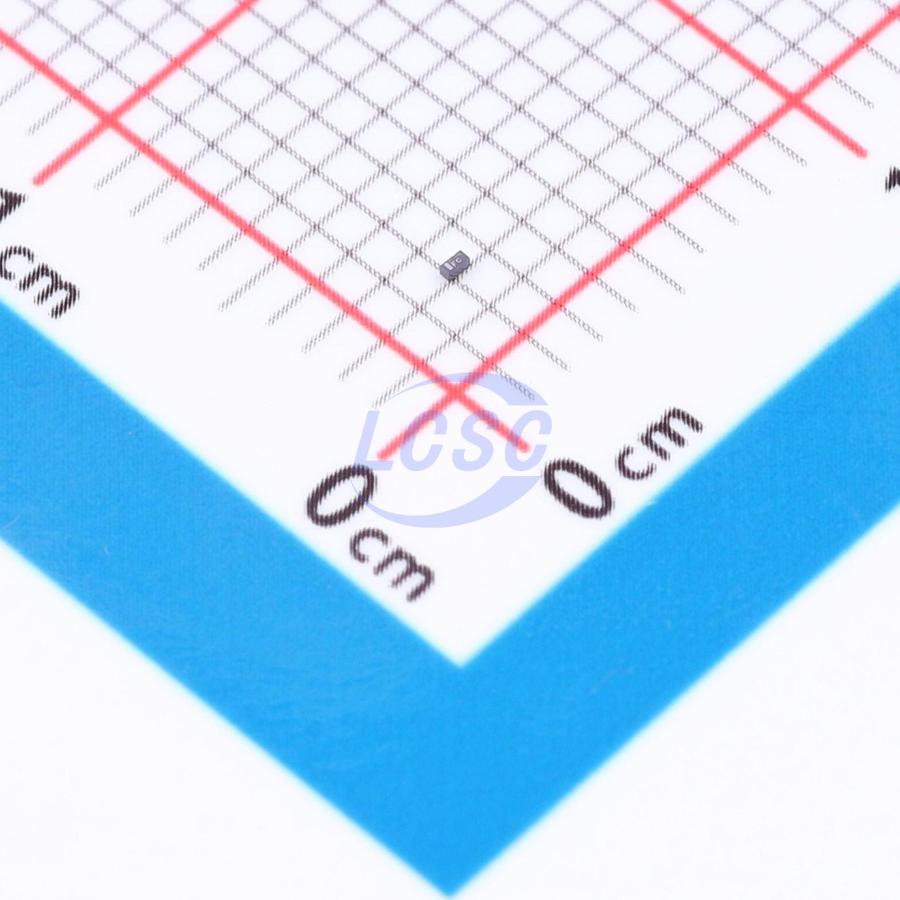

VS12VBA1HST15R
14VC Clamp 5A@8/20us Ipp TVS DIODE SOD-962
SOD-962ROHS3 CompliantActive
TVS DIODE 12VWM 14VC SOD-962
- Manufacturer
- ROHM
- Manufacturer part #
- VS12VBA1HST15R
- Store part #
- C3711499
- Package / case
- SOD-962
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
115 in stock
#C3711499
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.51 | ₹92.55 |
| 50+ | ₹14.43 | ₹721.50 |
| 150+ | ₹12.40 | ₹1,860.00 |
| 500+ | ₹10.86 | ₹5,430.00 |
| 2,500+ | ₹9.63 | ₹24,075.00 |
| 5,000+ | ₹9.02 | ₹45,100.00 |
5 × ₹18.51
₹92.55
excl. GST
₹109.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
VS12VBA1HST15R
₹92.55 for 5 + GST
Specifications
- Clamping Voltage
- 14V
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 70W
- Voltage - Breakdown
- 12.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.009 g
Overview
Applications
- Mobile phones & accessories
- Portable electronic devices
- Data cables
- Audio & video equipment
Key features
- High reliability
- Bidirectional ESD protection
- ESD protection rating ±8kV (IEC61000-4-2 contact)
- Dimensional tolerance ±10um
