ROHMDatasheet (PDF)

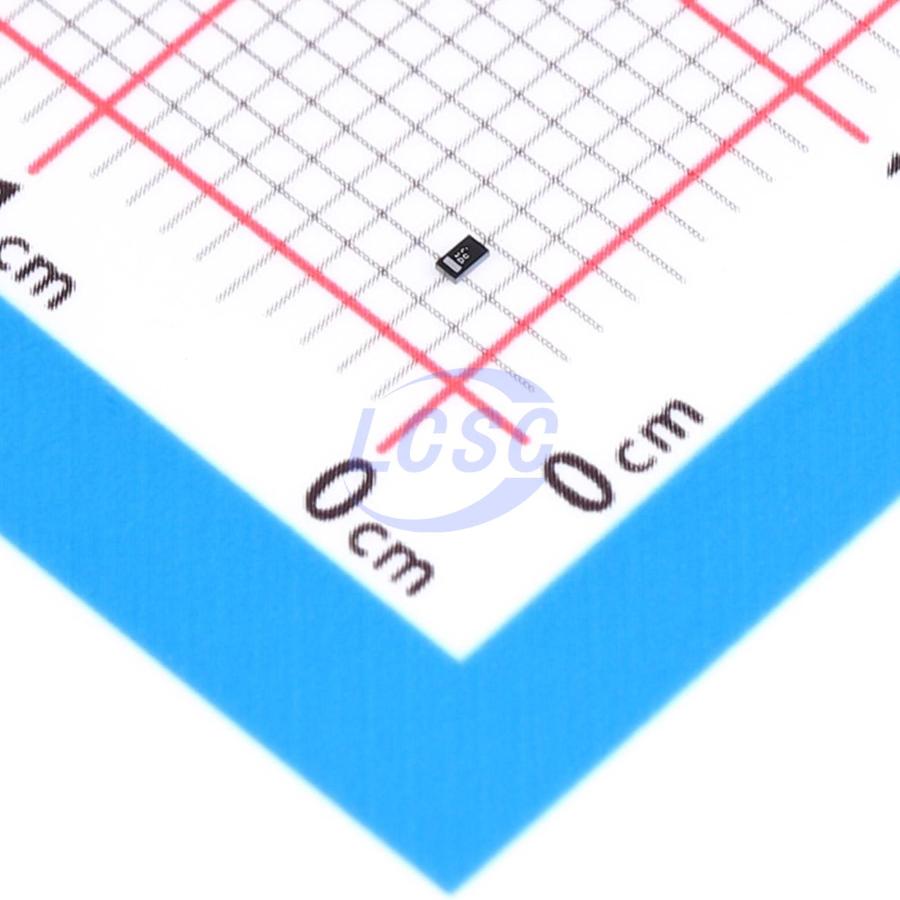

VS4V5BU1QST18R
12VC Clamp 50A@8/20us Ipp ESD DIODE SMD1006
SMD1006ROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- VS4V5BU1QST18R
- Store part #
- C1849716
- Package / case
- SMD1006
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
230 in stock
#C1849716
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.61 | ₹53.05 |
| 50+ | ₹10.33 | ₹516.50 |
| 150+ | ₹10.16 | ₹1,524.00 |
| 500+ | ₹9.98 | ₹4,990.00 |
5 × ₹10.61
₹53.05
excl. GST
₹62.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 18,000 per reel
VS4V5BU1QST18R
₹53.05 for 5 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 50A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 600W@8/20us
- Voltage - Breakdown
- 6.5V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 4.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 18,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.001 g
Overview
Applications
- Battery protection
- Portable Electronics
- Cellular Handsets
Key features
- High reliability
- Bi-directional ESD protection
- Dimension tolerance±10um
