VISHAYDatasheet (PDF)

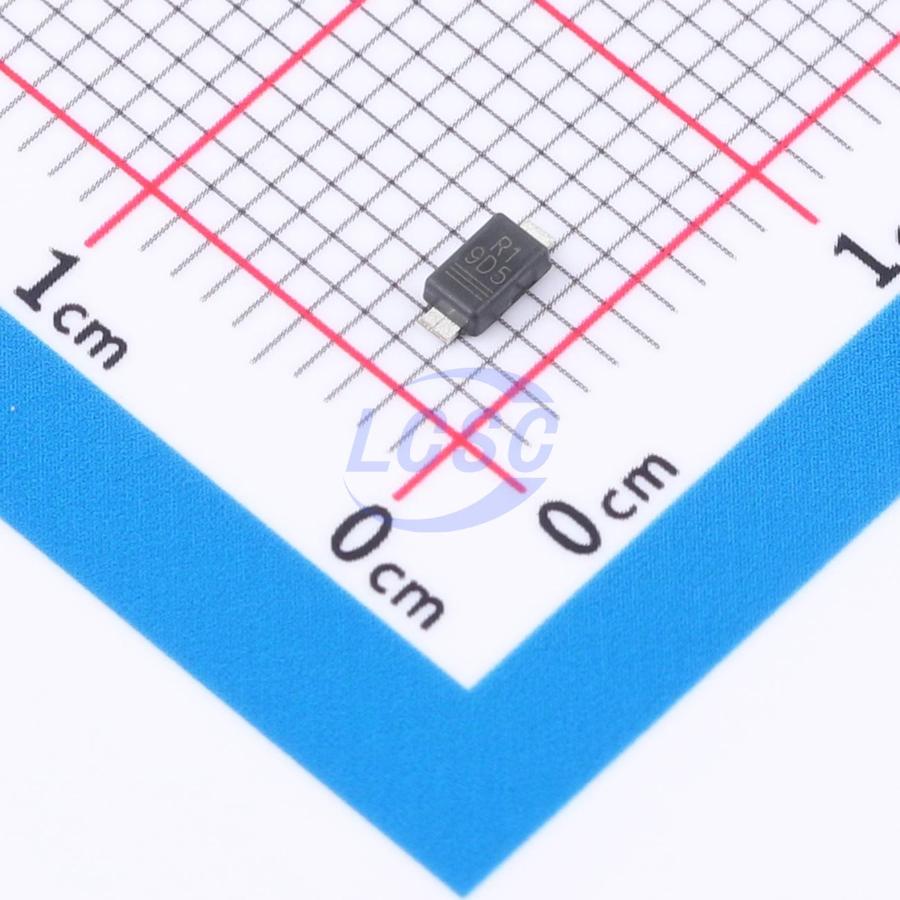

VTVS28ASMF-HM3-08
47VC Clamp 8.21A@10/1000us Ipp TVS DIODE DO-219AB(SMF)
DO-219AB(SMF)ROHS3 CompliantActive
TVS DIODE 27.9VWM 47VC DO-219AB(SMF)
- Manufacturer
- VISHAY
- Manufacturer part #
- VTVS28ASMF-HM3-08
- Store part #
- C1974389
- Package / case
- DO-219AB(SMF)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C1974389
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.34 | ₹166.70 |
| 50+ | ₹32.76 | ₹1,638.00 |
| 150+ | ₹32.37 | ₹4,855.50 |
| 500+ | ₹31.99 | ₹15,995.00 |
5 × ₹33.34
₹166.70
excl. GST
₹196.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VTVS28ASMF-HM3-08
₹166.70 for 5 + GST
Specifications
- Clamping Voltage
- 47V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 8.21A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 34.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 50nA
- Reverse Stand-Off Voltage (Vrwm)
- 27.9V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.001 g
Overview
Key features
- 400 W peak pulse power capability with a Available 10/1000 μs waveform
- Tolerance of the avalanche breakdown voltage ± 5 % VTVSxxxA... ± 2 % VTVSxxxG... e3
- Low-profile package RoHS
- Wave and reflow solderable COMPLIANT
- ESD-protection acc. IEC 61000-4-2 HALOGEN ± 30 kV contact discharge FREE ± 30 kV air discharge
- Excellent clamping capability
- “Low-Noise” technology - very fast response time
- AEC-Q101 qualified available
- Compatible to SOD-123W package case outline or SOD-123F and SOD-123FL
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VTVS28ASMF-M3-08#C1856678VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 585 | ₹46.73 · 585 in stock | View |
 | VTVS31GSMF-HM3-08#C1981563VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 100 | ₹121.37 · 100 in stock | View |
 | VTVS31ASMF-M3-08#C1856682VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 25 | ₹32.78 · 25 in stock | View |
| VTVS28ASMF-HM3-18#C1985003VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹17.36 · 0 in stock | View | |
| VTVS28ASMF-M3-18#C1978195VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹15.27 · 0 in stock | View | |
