VISHAYDatasheet (PDF)

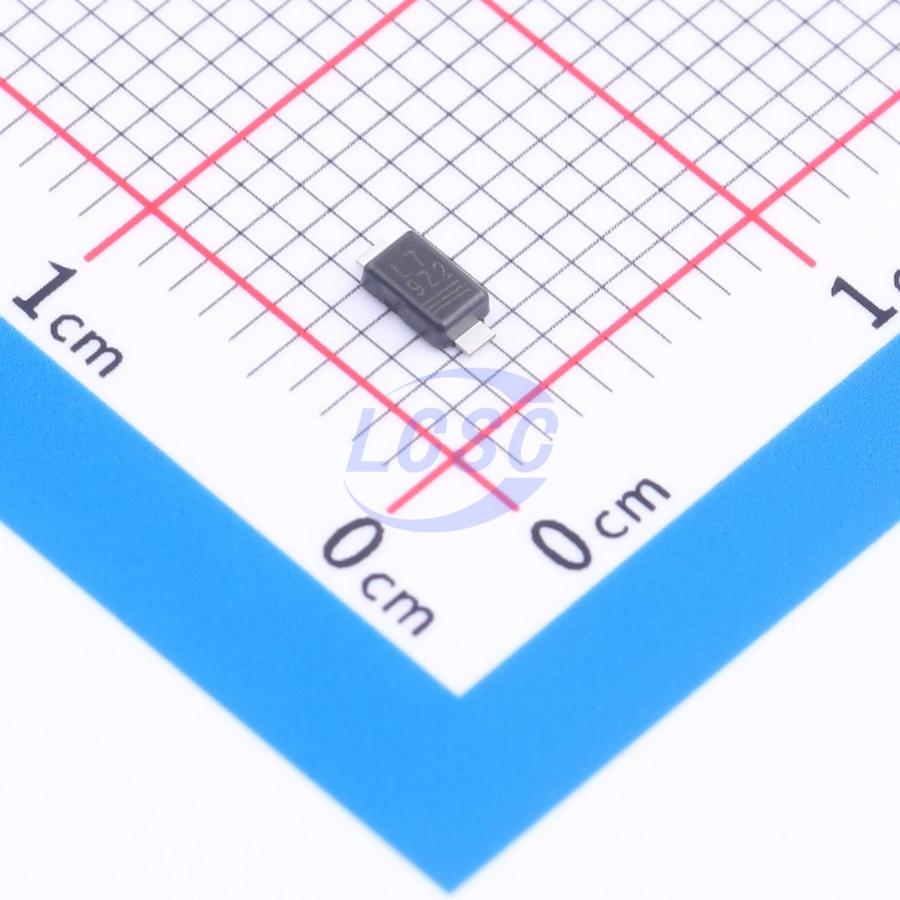

VTVS3V3GSMF-HM3-08
8.9VC Clamp 43.99A@10/1000us Ipp TVS DIODE DO-219AB(SMF)
DO-219AB(SMF)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- VTVS3V3GSMF-HM3-08
- Store part #
- C1981341
- Package / case
- DO-219AB(SMF)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C1981341
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.01 | ₹75.01 |
| 10+ | ₹73.73 | ₹737.30 |
| 30+ | ₹72.87 | ₹2,186.10 |
| 100+ | ₹72.01 | ₹7,201.00 |
1 × ₹75.01
₹75.01
excl. GST
₹88.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30,000 per reel
VTVS3V3GSMF-HM3-08
₹75.01 for 1 + GST
Specifications
- Clamping Voltage
- 8.9V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 43.99A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 6.84V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 50nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 30,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.316 g
Overview
Key features
- 400 W peak pulse power capability with a Available 10/1000 μs waveform
- Tolerance of the avalanche breakdown voltage ± 5 % VTVSxxxA... ± 2 % VTVSxxxG... e3
- Low-profile package RoHS
- Wave and reflow solderable COMPLIANT
- ESD-protection acc. IEC 61000-4-2 HALOGEN ± 30 kV contact discharge FREE ± 30 kV air discharge
- Excellent clamping capability
- “Low-Noise” technology - very fast response time
- AEC-Q101 qualified available
- Compatible to SOD-123W package case outline or SOD-123F and SOD-123FL
