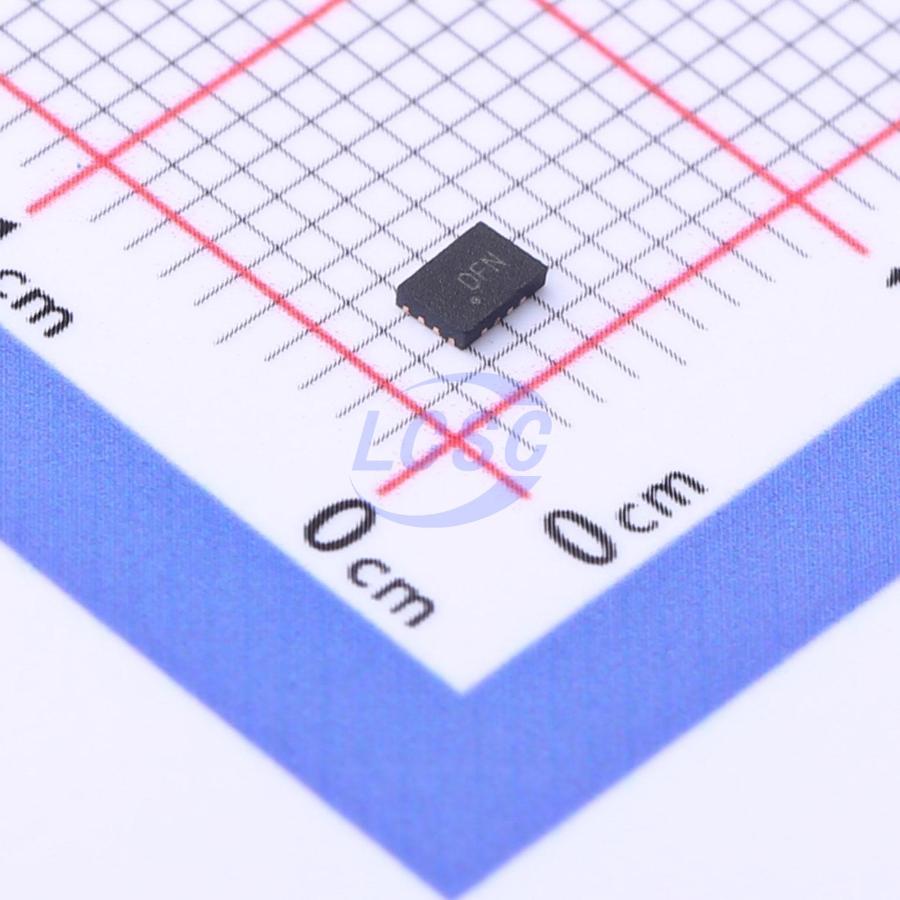

WILLSEMI

WAS4735Q-16/TR

4 7.5Ω 2.3V~5.5V QFN1826-16L(1.8x2.6) Analog Switches, Multiplexers, Demultiplexers

QFN1826-16L(1.8x2.6)RoHSActive

4:1 High speed Switch

Manufacturer: WILLSEMI
Manufacturer part #: WAS4735Q-16/TR
Store part #: C2939861
Package / case: QFN1826-16L(1.8x2.6)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,275 in stock

#C2939861

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹35.36	₹176.80
50+	₹31.26	₹1,563.00
150+	₹29.50	₹4,425.00
500+	₹27.32	₹13,660.00
3,000+	₹26.34	₹79,020.00
6,000+	₹25.75	₹1,54,500.00

Quantity (min 5, multiples of 5)

5 × ₹35.36

₹176.80

excl. GST

₹208.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

WAS4735Q-16/TR

₹176.80 for 5 + GST

Specifications

Features: Bidirectional analog channel;Fault protection
Operating Temperature: -40℃~+85℃
Number of Channels: 4
Ron: 7.5Ω
Voltage - Supply: 2.3V~5.5V
Propagation Delay: 2.2ns
Con: 6.5pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.031 g

Overview

The WAS4735Q is a bi-directional, low power, high-speed 4:1 switch that operates from a single +2.3V to +5.5V power supply. The WAS4735Q is designed for switching of high-speed (-3dB bandwidth 1.2GHz) signals in handset and consumer applications, such as cell phones, digital cameras, and notebooks with hubs or controllers with limited USB I/Os. The WAS4735Q has low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480Mbps), MHL video 720p/60fps and 1080i/30fps. Each switch is bi-directional and offers little attenuation of the high-speed signals at the outputs. Its bandwidth is quite marginal to pass high-speed differential signals (2.4Gbps) with good signal integrity. The WAS4735Q is featured with special circuitry on the D+/D-, which allows the device to withstand a VBUS short to D+ or D- when the USB devices are either powered off or on. The WAS4735Q is available in QFN1826-16L package. Standard products are Pb-Free and halogen-Free.
