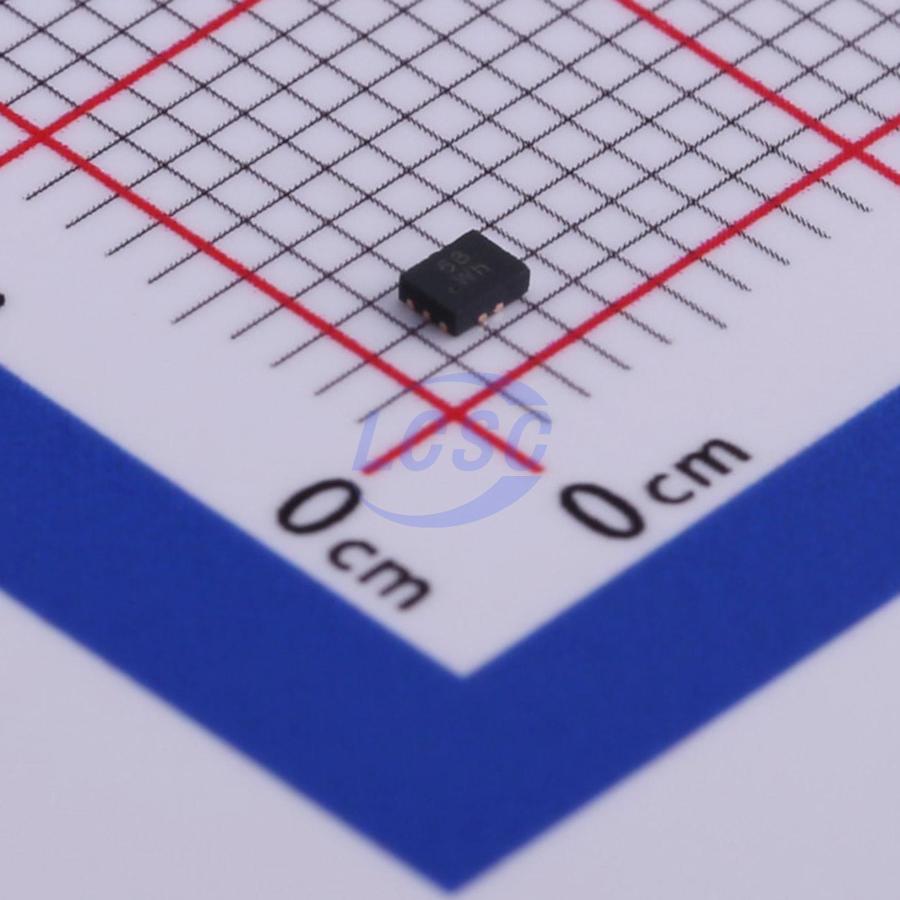

WILLSEMI

WAS4768Q-10/TR

2.5V~4.5V 7Ω QFN-10(1.8x1.4) Analog Switches, Multiplexers, Demultiplexers

QFN-10(1.8x1.4)RoHSActive

DPDT USB2.0 Hi-Speed (480Mbps) and HiFi Audio Switches with Negative Swing Capability

Manufacturer: WILLSEMI
Manufacturer part #: WAS4768Q-10/TR
Store part #: C506158
Package / case: QFN-10(1.8x1.4)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,970 in stock

#C506158

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹58.68	₹58.68
10+	₹46.73	₹467.30
30+	₹41.52	₹1,245.60
100+	₹34.99	₹3,499.00
500+	₹32.16	₹16,080.00
1,000+	₹30.43	₹30,430.00

Quantity (min 1)

1 × ₹58.68

₹58.68

excl. GST

₹69.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

WAS4768Q-10/TR

₹58.68 for 1 + GST

Specifications

Features: Fault protection
Operating Temperature: -40℃~+85℃
Voltage - Supply: 2.5V~4.5V
Ron: 7Ω
Con: 5pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.03 g

Overview

The WAS4768Q is a high performance, Double-Pole, Double Throw (DPDT) multiplexer that combines a low-distortion audio and a USB2.0 High-Speed (HS) switch path. This configuration enables audio and USB data to share a common connector port. The architecture is designed to allow audio signals to swing below ground. This means a analog audio over USB-C connector can be used for personal media players and portable peripheral devices. With Max. 24V high voltage range of USB_Sel pin, WAS4768Q can be configured for automatic USB communication with USB_Sel tie to VBUS directly. The WAS4768Q includes a over voltage protection of D+/R & D-/L pin with 4.75V OVLO threshold to protect internal port. Typical applications involve switching in portables and consumer applications such as mobile phone, tablet, laptop, portable media players. The WAS4768Q is available in QFN1418-10L package. Standard products are Pb-Free and halogen-Free.

Applications

USB Type C

Key features

Single Supply Voltage : 2.5~ 4.5V
USB_Sel Pin Voltage : 24V
D+/R & D-/L Pin OVP Threshold : 4.75V
Audio Path On-Resistance : 2.5Ω
THD+N@ 32Ωload & 0.7Vrms : -105dB
Signal-to-Noise (SNR) Ratio : 115dBA
USB Path -3dB Bandwidth : 900MHz
USB Path On-Resistance : 6.5Ω
Audio Swing Range (RL=1KΩ) : 2.5Vrms Built-In shunt function of Audio Paths to Inhibit Audio Pop and Click
