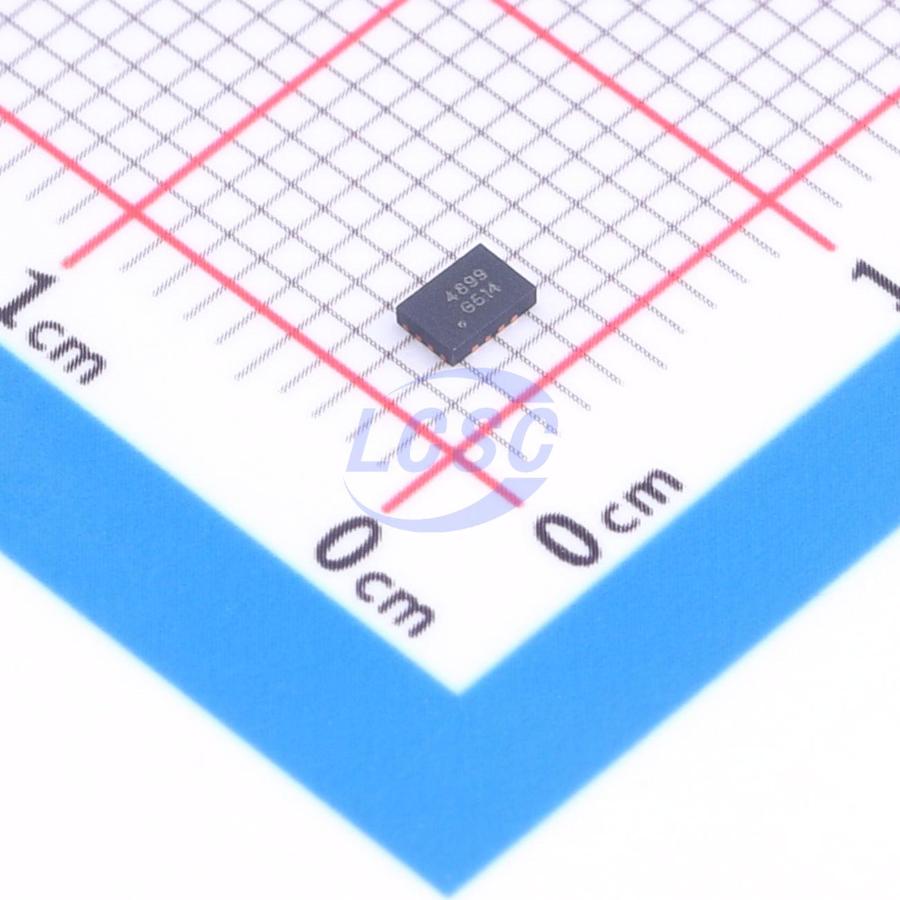

waferbest

WB4899

27Ω@1.65V 4 1.65V~5.5V UTQFN-16L(1.8x2.6) Analog Switches, Multiplexers, Demultiplexers

UTQFN-16L(1.8x2.6)RoHSActive

Manufacturer: waferbest
Manufacturer part #: WB4899
Store part #: C53374635
Package / case: UTQFN-16L(1.8x2.6)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,850 in stock

#C53374635

Stock & price checked 22 h ago

Quantity	Unit price	Pack price
5+	₹40.81	₹204.05
50+	₹32.22	₹1,611.00
150+	₹28.54	₹4,281.00
500+	₹23.95	₹11,975.00
3,000+	₹21.90	₹65,700.00
6,000+	₹20.67	₹1,24,020.00

Quantity (min 5, multiples of 5)

5 × ₹40.81

₹204.05

excl. GST

₹240.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

WB4899

₹204.05 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Glitch-free switching
Operating Temperature: -40℃~+85℃
Ron: 27Ω@1.65V
Number of Channels: 4
Voltage - Supply: 1.65V~5.5V
Con: 8pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1 g

Overview

WB4899 is a high-speed, low-voltage, dual independent double-pole double-throw (DPDT) CMOS analog switch designed to operate from a +1.65V to +5.5V single supply. It features high bandwidth (350 MHz) and low on-resistance (3.5Ω at 4.5V). The WB4899 is configured as a DPDT device with two logic control inputs, each controlling an independent multiplexer/demultiplexer. This configuration can also be used as a dual differential 2-to-1 multiplexer/demultiplexer.
