WILLSEMI

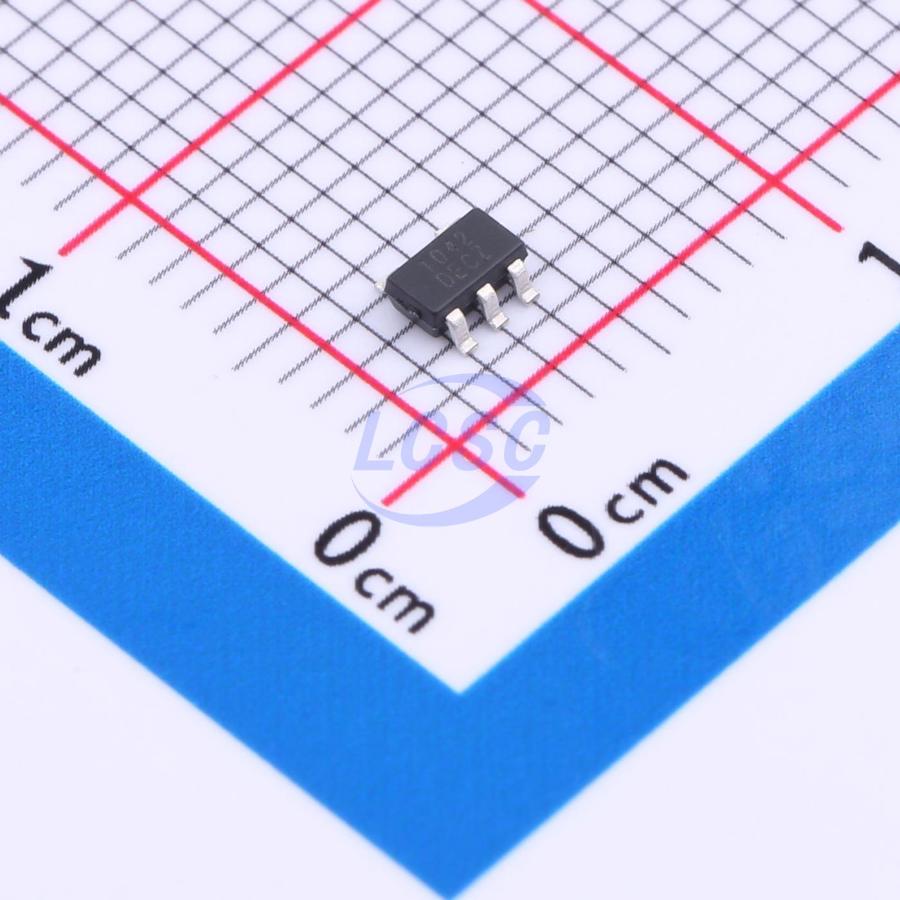

WD1042E-5/TR

1.5MHz Step-down type Adjustable 1A SOT-23-5L Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-5LROHS CompliantActive

High Efficiency Synchronous Step-Down DC-DC Converter

Manufacturer: WILLSEMI
Manufacturer part #: WD1042E-5/TR
Store part #: C2939857
Package / case: SOT-23-5L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,435 in stock

#C2939857

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹10.74	₹53.70
50+	₹8.64	₹432.00
150+	₹7.58	₹1,137.00
500+	₹6.79	₹3,395.00
3,000+	₹6.17	₹18,510.00
6,000+	₹5.85	₹35,100.00

Quantity (min 5, multiples of 5)

5 × ₹10.74

₹53.70

excl. GST

₹63.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

WD1042E-5/TR

₹53.70 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 1.5MHz
Number of Outputs: 1
Function: Step-down type
Features: Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 1A
Quiescent Current: 40uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.05 g

Overview

The WD1042 is a high efficiency, synchronous step down DC-DC converter optimized for battery powered portable applications. It supports up to 1.0A output current. With a wide input voltage range of 2.5V to 5.5V, the device supports applications powered by single Li-ion battery with extended voltage range, two and three alkaline cell, 3.3V and 5V input voltage range. The WD1042 operates at 1.5MHz fixed switching frequency with Pulse-Width-Modulation (PWM) and enters Pulse-Skipping-Modulation (PSM) operation at light load current to maintain high efficiency over the entire load current range. The switching frequency is internally set at 1.5MHz, allowing the use of tiny surface mount inductor and input/output capacitors. Low output voltage is easily supported with the 0.6V feedback reference voltage. The WD1042 is available in SOT-23-5L package. Standard product is Pb-free and Halogen-free.
