WILLSEMI

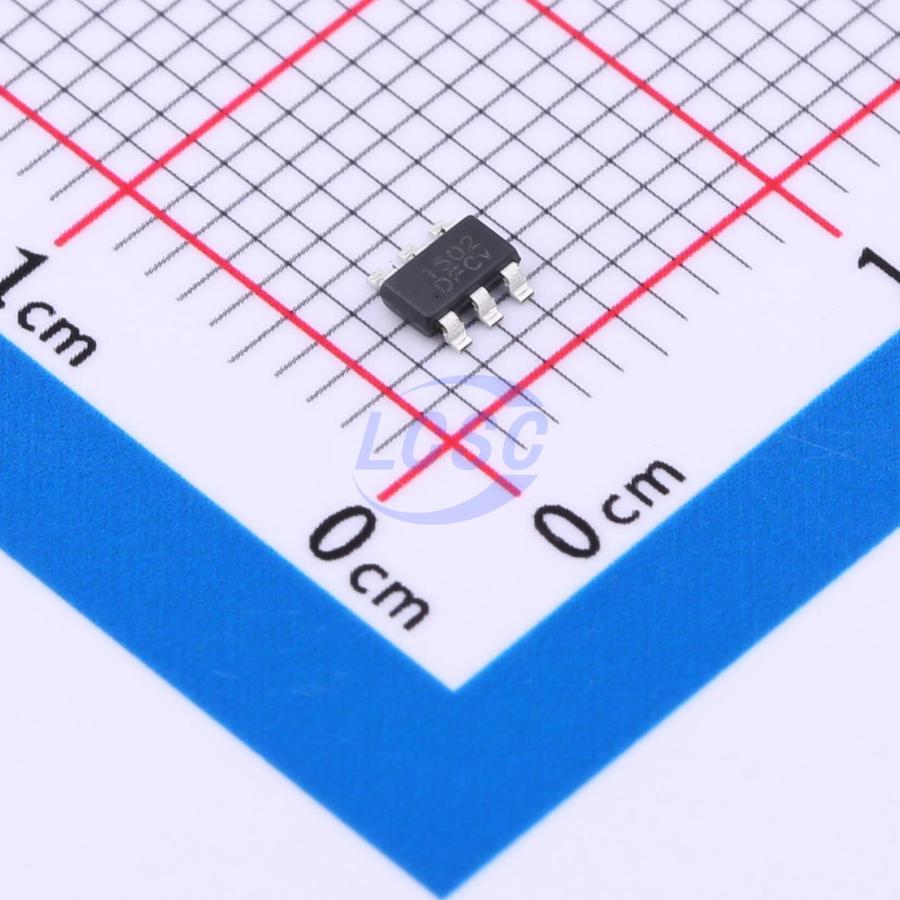

WD1502F-6/TR

650kHz Step-down type Adjustable 2A TSOT-23-6L Voltage Regulators - DC DC Switching Regulators

TSOT-23-6LRoHSActive

28V, 2A, Synchronous Step-Down DC-DC Converter

Manufacturer: WILLSEMI
Manufacturer part #: WD1502F-6/TR
Store part #: C2931307
Package / case: TSOT-23-6L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,800 in stock

#C2931307

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹50.86	₹254.30
50+	₹38.30	₹1,915.00
150+	₹32.93	₹4,939.50
500+	₹26.21	₹13,105.00
3,000+	₹23.22	₹69,660.00
6,000+	₹21.43	₹1,28,580.00

Quantity (min 5, multiples of 5)

5 × ₹50.86

₹254.30

excl. GST

₹300.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

WD1502F-6/TR

₹254.30 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 650kHz
Number of Outputs: 1
Function: Step-down type
Features: Cycle-by-cycle current limiting;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~28V
Switch tube (built-in/external): Built-in
Output Current: 2A
Quiescent Current: 60uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.049 g

Overview

WD1502 is a high efficiency, synchronous step down DC-DC converter. It can deliver up to 2A of continuous output current with operating at an input range of 4.5V~28V. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. WD1502 operates at 650 kHz fixed switching frequency with Pulse-Width-Modulation (PWM) and enters Pulse-Skipping-Modulation (PSM) operation at light load current to maintain high efficiency and low output ripple over the entire load current range. The WD1502 has short-circuit protection, thermal protection, and input under voltage lockout. The WD1502 is available in TSOT-23-6L package. Standard products is Pb-Free and Halogen-Free.
