WILLSEMI

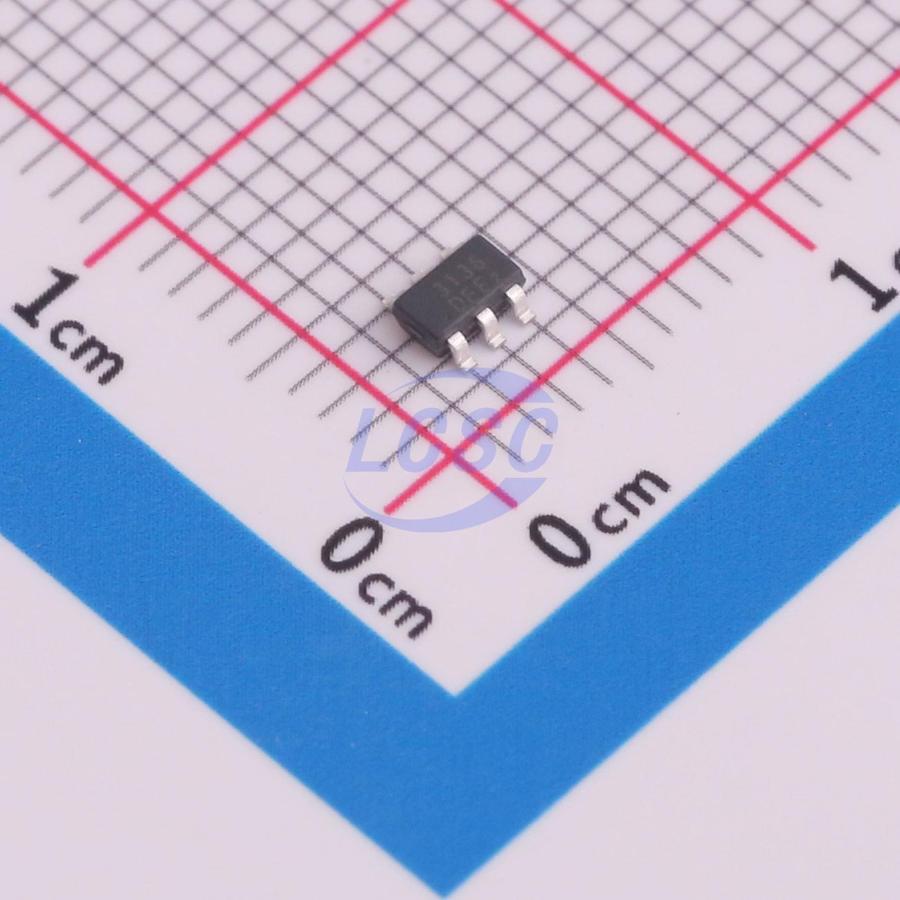

WD3136E-6/TR

800kHz~1.2MHz Boost Adjustable 2.4V~24V 3A SOT-23-6L Voltage Regulators - DC DC Switching Regulators

SOT-23-6LRoHSActive

24V DC-DC Step-Up Regulator

Manufacturer: WILLSEMI
Manufacturer part #: WD3136E-6/TR
Store part #: C2939862
Package / case: SOT-23-6L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,375 in stock

#C2939862

Stock & price checked 18 h ago

Quantity	Unit price	Pack price
5+	₹38.64	₹193.20
50+	₹30.76	₹1,538.00
150+	₹27.39	₹4,108.50
500+	₹23.17	₹11,585.00
3,000+	₹21.29	₹63,870.00
6,000+	₹20.16	₹1,20,960.00

Quantity (min 5, multiples of 5)

5 × ₹38.64

₹193.20

excl. GST

₹227.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

WD3136E-6/TR

₹193.20 for 5 + GST

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Number of Outputs: 1
Frequency - Switching: 800kHz~1.2MHz
Function: Boost
Features: Cycle-by-cycle current limiting;Overcurrent Protection;Light load efficient mode
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.4V~20V
Switch tube (built-in/external): Built-in
Output Voltage: 2.4V~24V
Output Current: 3A
Quiescent Current: 250uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.047 g

Overview

The WD3136E is a high efficiency, high power, peak current mode step-up converter integrated 32V power MOSFET with 3A (Typ.) current limit. It could support up to maximum 24V output. The boost converter WD3136E runs in Pulse-Width Modulation (PWM) mode at 1MHz fixed switching frequency to reduce output ripple and improve conversion efficiency. It allows for the use of small external components. At light load, the converter enters Skipping Mode to maintain a high efficiency over a wide load current range. The build-in soft start circuitry minimizes the inrush current at start-up. The WD3136E is available in SOT-23-6L package. Standard product is Pb-free and Halogen-free.
