BXCONNDatasheet (PDF)

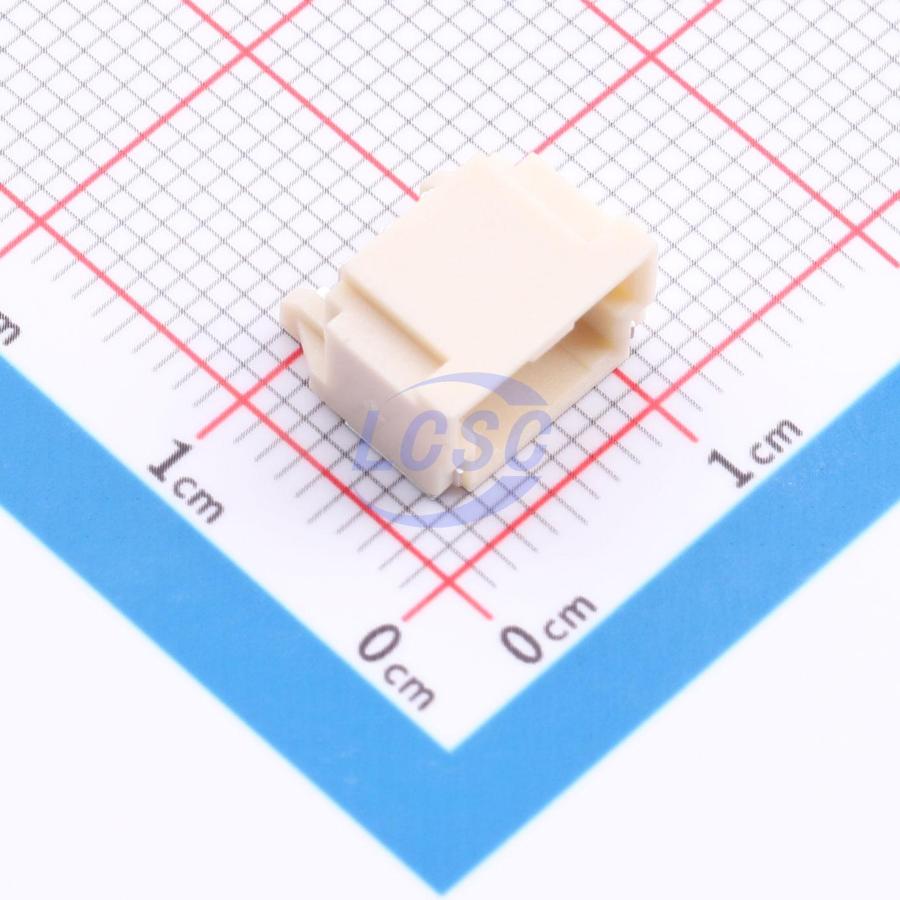

WF-MX200B3P
Surface Mount, Right Angle 125V 3 1 2mm 2A 3P -25℃~+85℃ Tin 1x3P SMD,P=2mm,Surface Mount,Right Angle Headers, Male Pins RoHS
SMD,P=2mm,Surface Mount,Right AngleROHS CompliantActive
- Manufacturer
- BXCONN
- Manufacturer part #
- WF-MX200B3P
- Store part #
- C53340498
- Package / case
- SMD,P=2mm,Surface Mount,Right Angle
- Category
- Headers, Male Pins
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C53340498
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.57 | ₹72.85 |
| 50+ | ₹11.59 | ₹579.50 |
| 150+ | ₹10.11 | ₹1,516.50 |
| 600+ | ₹8.98 | ₹5,388.00 |
| 2,400+ | ₹8.10 | ₹19,440.00 |
| 4,800+ | ₹7.65 | ₹36,720.00 |
5 × ₹14.57
₹72.85
excl. GST
₹85.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 600 per reel
WF-MX200B3P
₹72.85 for 5 + GST
Specifications
- Connector Type
- Surface Mount, Right Angle
- Voltage Rating (Max)
- 125V
- Contact Material
- Copper alloy
- Number of PINs Per Row
- 3
- Number of Rows
- 1
- Pitch
- 2mm
- Current Rating
- 2A
- Flame Retardant Rating
- UL94V-0
- Number of PINs
- 3P
- Operating Temperature
- -25℃~+85℃
- Contact Plating
- Tin
- Plastic Material
- PA9T
- X-Length of Bottom Edge on Board (Spacing Line)
- 12.6mm
- Pin Structure
- 1x3P
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 600 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.714 g
Overview
Key features
- Smooth plastic surface, free of flash, sink marks, defects, and cracks
- Temperature range: -25°C ~ 85°C
- Rated voltage: 125V AC/DC
- Rated current: 2.0A AC/DC (AWG#24, max OD 1.4mm)
- Contact resistance: ≤40mΩ
- Insulation resistance: >1000MΩ
- Dielectric withstanding voltage: 500V AC/min
