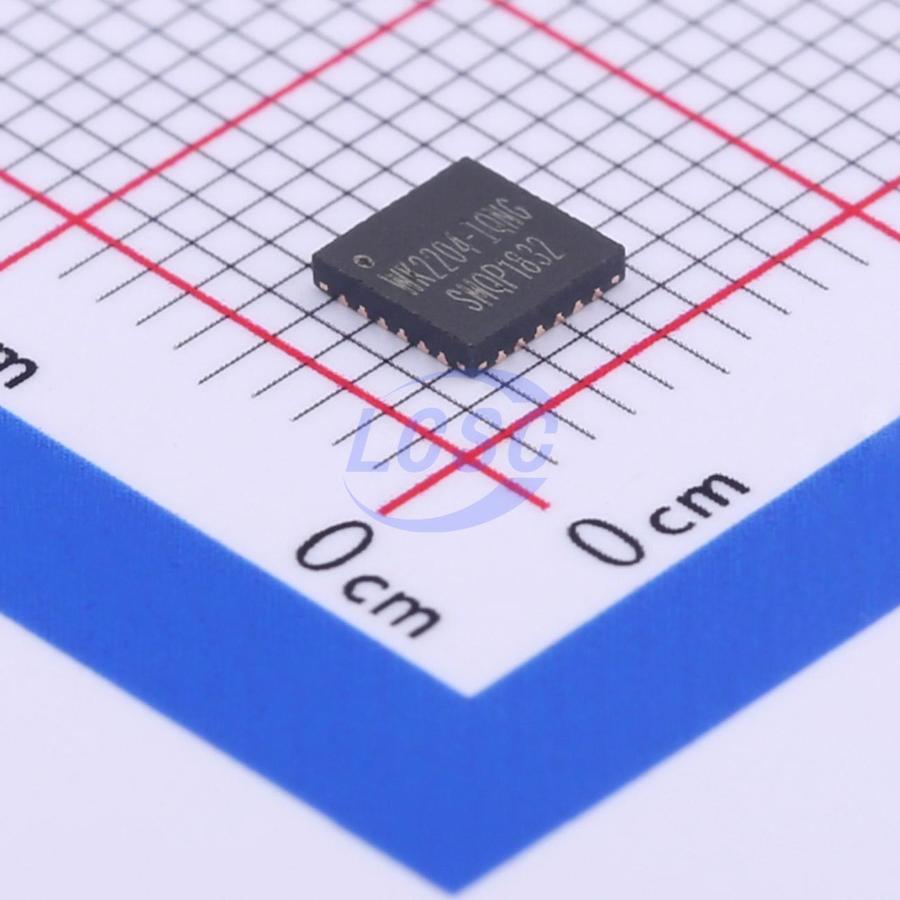

WK2204-IQNG

WK2204 is a low-power, four-channel universal asynchronous transceiver supporting UART, SPI, and I²C bus interfaces, and is the first device of its kind to feature 256-level FIFOs. Via mode selection, the device can operate in any of the host interface modes, extending the selected host interface into four enhanced UART sub-channels. Each sub-channel's UART can be independently configured with baud rate, word length, and parity format, supporting a maximum communication rate of 1.5 Mbps. Each sub-channel can also be independently configured to support advanced operating modes including IrDA infrared communication, RS-485 automatic transceiver control, 9-bit network address auto-detection, and software or hardware automatic flow control. Each sub-channel features independent 256-level transmit and receive FIFOs with user-programmable FIFO interrupt trigger levels and timeout interrupt capability. The chip is available in a QFN24 lead-free package, operates over a supply voltage range of 2.0V ~ 3.6V, and supports configurable auto-sleep and wake-up functionality.

Applications

• Multi-port serial server / multi-port serial card
• Industrial/automation RS-485 field control
• Wireless data transmission via 2G/3G/4G
• Telematics platform / vehicle GPS positioning system
• Automatic meter reading (AMR) system
• POS / tax-control POS / financial terminals
• DSP / embedded systems

Key features

• Multiple host interfaces supported: UART, SPI, or I²C selectable
• Large hardware TX/RX buffers with 256-level FIFO support
• Low-power design with configurable auto-sleep and auto-wake modes (microsecond-level wake-up)
• Wide operating voltage range: 2.0V ~ 3.6V
• Simplified configuration registers and control words for easy and reliable operation
• Industrial-grade product available
• High-speed CMOS process; sub-UART rate up to 1.5 Mbps (at 3.3V) and 1 Mbps (at 2.5V)
• RoHS-compliant lead-free QFN24 package
• Each sub-UART is full-duplex, independently enabled or disabled via software
• Independently configurable baud rates; sub-UART up to 1.5 Mbps
• Independent character format per sub-UART (data length, stop bits, parity mode)
• Comprehensive sub-UART status query functionality
• Software reset supported for individual sub-UARTs
• Independent 256-level TX FIFO per sub-UART with programmable TX FIFO trigger level
• Independent 256-level RX FIFO per sub-UART with programmable RX FIFO trigger level
• Software FIFO enable and flush supported
• FIFO status and counter output provided
• Hardware automatic flow control with RTS and CTS
• Software automatic flow control with XON/XOFF; XON/XOFF characters programmable with auto send/recognition
• Automatic RS-485 TX/RX control via RTS
• RS-485 network address auto-recognition
• RS-485 data length programmable as 8-bit or 9-bit
• Parity error, framing error, overflow error, and line break error detection
• Start bit error detection supported
• Built-in SIR-compliant IrDA infrared TX/RX codec; transfer speed up to 115.2 kbps
• Sub-UART RX FIFO timeout interrupt
• Line break error interrupt supported
• Standard 3-wire UART host interface requiring only RX, TX, and GND
• Baud rate auto-detection up to 1.5 Mbps
• Selectable odd parity, even parity, and no parity modes
• Address-line-free serial port expansion via built-in protocol processor for multi-UART extension
• UART host interface configurable to infrared mode via pin setting
• Continuous TX/RX up to 16 bytes supported
• SPI host interface up to 10 Mbps; slave mode only; SPI mode 0 supported; continuous TX/RX up to 256 bytes
• I²C host interface up to 1 Mbps; slave mode only; continuous TX/RX up to 256 bytes
