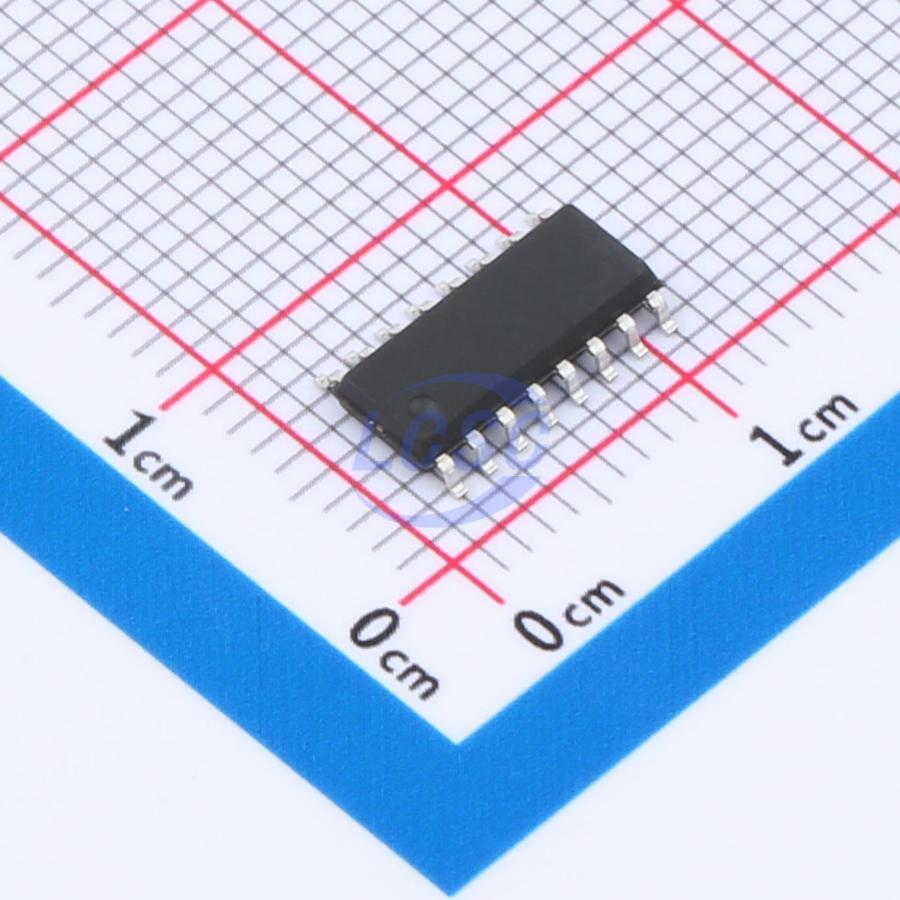

WS2411P8ES16
RISC 32 Bit 32MHz SOP-16 Microcontrollers
SOP-16RoHSActive
High-performance, low-power 2.4G SOC chip
- Manufacturer
- wisesun
- Manufacturer part #
- WS2411P8ES16
- Store part #
- C19185745
- Package / case
- SOP-16
- Category
- Microcontrollers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,960 in stock
#C19185745
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.33 | ₹156.65 |
| 50+ | ₹27.27 | ₹1,363.50 |
| 150+ | ₹25.53 | ₹3,829.50 |
| 500+ | ₹23.36 | ₹11,680.00 |
| 2,500+ | ₹22.40 | ₹56,000.00 |
| 5,000+ | ₹21.82 | ₹1,09,100.00 |
5 × ₹31.33
₹156.65
excl. GST
₹184.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
WS2411P8ES16
₹156.65 for 5 + GST
Specifications
- ADC (Bit)
- 10bit
- Operating Temperature
- -40℃~+105℃
- Voltage - Supply
- 2.3V~3.6V
- Program Memory Type
- OTP
- Program Storage Size
- 8KB
- CPU Core
- RISC
- Core Size
- 32 Bit
- CPU Maximum Speed
- 32MHz
- Oscillator Type
- Built-in+External
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.29 g
Overview
Key features
- Microcontroller:
- 32-bit high-performance RISC core
- 16MHz/32MHz clock
- 16KB OTP
- 6KB SRAM
- Peripherals:
- 1x UART interface with hardware flow control
- 1x SPI Master, up to 16M
- 6-channel PWM output
- 2x general-purpose timers
- 1x Real-Time Clock (RTC)
- 1x quadrature decoder
- 10-bit ADC, 1Mbps, 4-channel
- Digital peripherals mappable to any GPIO
- All GPIOs support interrupts
- Integrated WatchDog
- Integrated voltage detector
- Integrated temperature sensor
- Integrated high-precision 32KHz RC oscillator
- MCU active current: 1.7mA @ 16MHz
- MCU sleep current: 0.6μA (IO wake-up, RAM on), 1μA (32KHz on, RAM on)
- RX current: 16mA
- TX current: 11mA @ -12dBm, 15mA @ +0dBm, 21mA @ +5dBm, 29mA @ +10dBm
- RF:
- -96dBm RX sensitivity
- Adjustable output power: -12dBm ~ +10dBm
- Single-ended RF interface
- Temperature range: -40 ~ 105℃
- 2.4G features:
- Data rate: 250kbps, 1Mbps, 2Mbps
- Packet format: normal mode, enhanced mode
- Low-power supply voltage range: 2.3V to 3.6V
- Tools and development environment:
- Keil compiler
- JLINK
