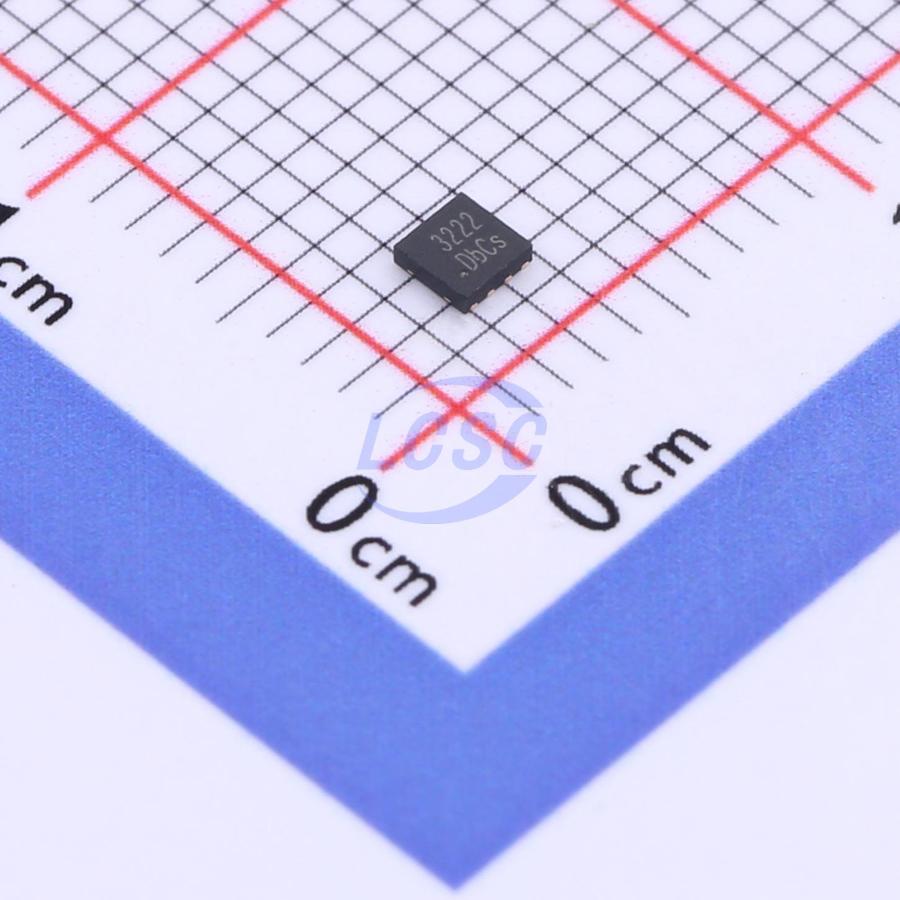

WILLSEMI

WS3222D-8/TR

Load Switch 3A WDFN-8-EP(2x2) Voltage Regulators - DC DC Switching Regulators RoHS

WDFN-8-EP(2x2)ROHS CompliantActive

Over-Voltage-Protection Load Switch with Adjustable OVLO threshold

Manufacturer: WILLSEMI
Manufacturer part #: WS3222D-8/TR
Store part #: C239703
Package / case: WDFN-8-EP(2x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,420 in stock

#C239703

Stock & price checked 32 h ago

Quantity	Unit price	Pack price
5+	₹43.06	₹215.30
50+	₹34.00	₹1,700.00
150+	₹30.11	₹4,516.50
500+	₹25.27	₹12,635.00
3,000+	₹23.10	₹69,300.00
6,000+	₹21.80	₹1,30,800.00

Quantity (min 5, multiples of 5)

5 × ₹43.06

₹215.30

excl. GST

₹254.05 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

WS3222D-8/TR

₹215.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Features: Overvoltage protection;Over temperature protection;Under-voltage lockout;Output discharge function
Type: Load Switch
Maximum Continuous Current: 3A
Operating Voltage: 2.5V~28V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.029 g

Overview

The WS3222 is an Over-Voltage-Protection (OVP) load switch with adjustable OVLO threshold voltage. The device will switch off internal MOSFET to disconnect IN to OUT to protect load when any of input voltage over the threshold. When the OVLO input set below the external OVLO select voltage, the WS3222 automatically chooses the internal fixed OVLO threshold voltage. The over voltage protection threshold voltage can be adjusted with external resistor divider and the OVLO threshold voltage range is 4~15V. The Over temperature protection (OTP) function monitors chip temperature to protect the device.
