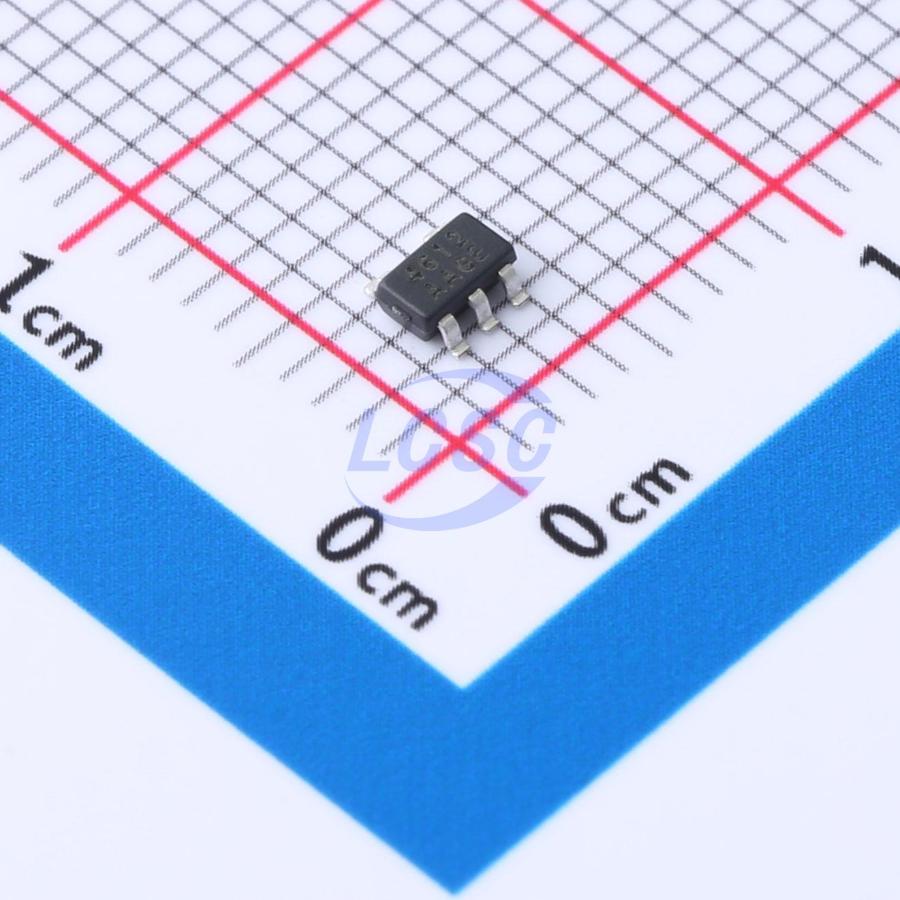

WILLSEMI

WS4612EAA-5/TR

SOT-23-5L Analog Switches, Multiplexers, Demultiplexers RoHS

SOT-23-5LROHS CompliantActive

60mΩ, Current Limited, Power Distribution Switch

Manufacturer: WILLSEMI
Manufacturer part #: WS4612EAA-5/TR
Store part #: C719418
Package / case: SOT-23-5L
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,010 in stock

#C719418

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹20.97	₹104.85
50+	₹16.99	₹849.50
150+	₹14.99	₹2,248.50
500+	₹13.49	₹6,745.00
3,000+	₹11.80	₹35,400.00
6,000+	₹11.21	₹67,260.00

Quantity (min 5, multiples of 5)

5 × ₹20.97

₹104.85

excl. GST

₹123.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

WS4612EAA-5/TR

₹104.85 for 5 + GST

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.049 g

Overview

The WS4612 is a high-side switch with ultra-low ON resistance P-MOSFET. Integrated current-limit function can limit inrush current for heavy capacitive load, over load current, and short-circuit current to protect power source. The WS4612 is also integrated reverse protection function to eliminate any reverse current flow across the switch when the device is off. Output auto-discharge function makes output voltage off quickly while the device shutdown. Thermal shutdown function can protect the device and load. The WS4612 is available in SOT-23-5L packages. Standard product is Pb-free and Halogen-free.
