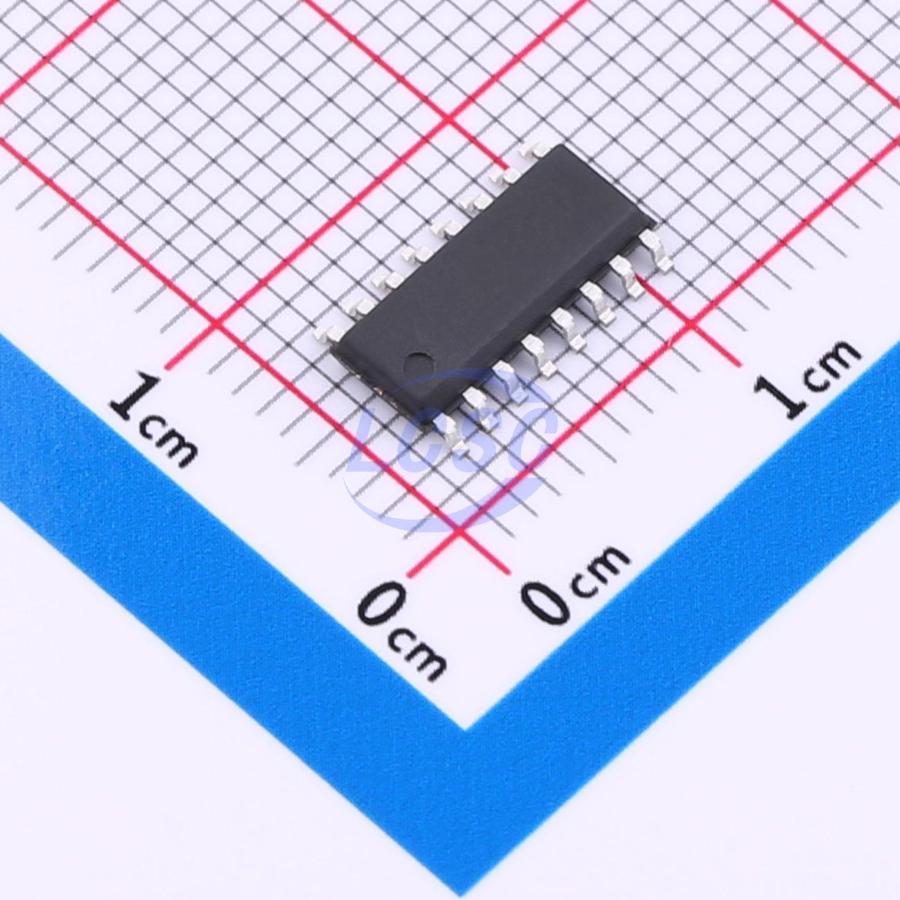

WS8000P16E02AS16

RISC 32 Bit 32MHz SOP-16 Microcontrollers

SOP-16RoHSActive

Low-power SOC chip compliant with BLE 5.0

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,923 in stock

#C19185737

Stock & price checked 6 days ago

Quantity (min 1)

1 × ₹42.20

₹42.20

excl. GST

₹49.80 incl. 18% GST

WS8000P16E02AS16

₹42.20 for 1 + GST

Specifications

Microcontroller: 32-bit high-performance RISC core, 16MHz/32MHz clock, 96KB ROM, 16KB OTP, 16KB SRAM
Peripherals: 1× UART with hardware flow control; 1× SPI Master up to 16M; 6-channel PWM output; 2× general-purpose timers, 1× RTC; 1× quadrature decoder; 10-bit ADC, 1Mbps, 4-channel; digital peripherals mappable to any GPIO; all GPIOs interrupt-capable; integrated WatchDog; integrated voltage detector; integrated temperature sensor; integrated high-precision 32KHz RC oscillator
RF: Low-power BLE 5.0, -96dBm RX sensitivity, adjustable TX power from -12dBm to +10dBm, single-ended RF interface
2.4G features: Data rates 250kbps, 1Mbps, 2Mbps; packet formats: normal mode, enhanced mode
Low power: Operating voltage 2.3V to 3.6V; MCU active current 1.75mA @ 16MHz; MCU sleep current: 0.7μA (IO wake-up, RAM on), 0.9μA (32KHz on, RAM on); RX current 16mA; TX current: 11mA @ -12dBm, 15mA @ 0dBm, 21mA @ +5dBm, 29mA @ +10dBm
Average sleep power consumption: connectable advertising at 1s interval 49μA; non-connectable advertising at 1s interval 32μA; connection keep-alive at 1s interval 23μA
Temperature range: -40℃ to 105℃
Package: SOP16, SOP8
Tools and development environment: Keil compiler, JLINK
