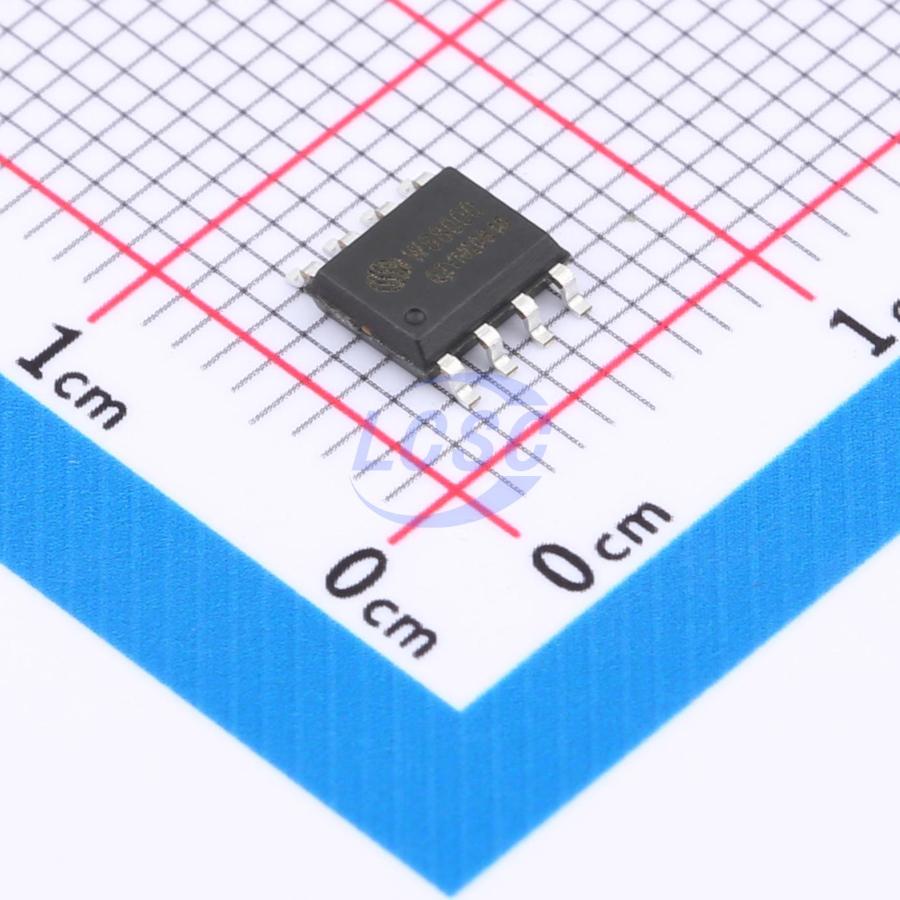

WS8000P16ES8
RISC 32 Bit 32MHz SOP-8 Microcontrollers
SOP-8RoHSActive
Low-power SOC chip compliant with BLE 5.0
- Manufacturer
- wisesun
- Manufacturer part #
- WS8000P16ES8
- Store part #
- C19185736
- Package / case
- SOP-8
- Category
- Microcontrollers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,000 in stock
#C19185736
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.00 | ₹155.00 |
| 50+ | ₹26.96 | ₹1,348.00 |
| 200+ | ₹25.23 | ₹5,046.00 |
| 500+ | ₹23.07 | ₹11,535.00 |
| 2,500+ | ₹22.11 | ₹55,275.00 |
| 5,000+ | ₹21.54 | ₹1,07,700.00 |
5 × ₹31.00
₹155.00
excl. GST
₹182.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 100 per tube
WS8000P16ES8
₹155.00 for 5 + GST
Specifications
- ADC (Bit)
- 10bit
- Operating Temperature
- -40℃~+105℃
- Voltage - Supply
- 2.3V~3.6V
- Program Memory Type
- OTP
- Program Storage Size
- 16KB
- CPU Core
- RISC
- Core Size
- 32 Bit
- CPU Maximum Speed
- 32MHz
- Oscillator Type
- Built-in+External
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.147 g
Overview
Key features
- Microcontroller:
- 32-bit high-performance RISC core
- 16MHz/32MHz clock
- 96KB ROM
- 16KB OTP
- 16KB SRAM
- Peripherals:
- 1× UART with hardware flow control
- 1× SPI Master, up to 16M
- 6-channel PWM output
- 2× general-purpose timers
- 1× RTC
- 1× quadrature decoder
- 10-bit ADC, 1Mbps, 4-channel
- Digital peripherals mappable to any GPIO
- All GPIOs support interrupts
- Integrated WatchDog
- Integrated voltage detection
- Integrated temperature sensor
- Integrated high-accuracy 32KHz RC oscillator
- RF:
- Low-power BLE 5.0 compliant
- -96dBm receive sensitivity
- Adjustable output power: -12dBm to +10dBm
- Single-ended RF interface
- 2.4G features:
- Data rate: 250kbps, 1Mbps, 2Mbps
- Packet format: normal mode, enhanced mode
- Low Power:
- Operating voltage: 2.3V to 3.6V
- MCU active current: 1.75mA @ 16MHz
- MCU sleep current: 0.7μA (IO wake-up, RAM on), 0.9μA (32KHz on, RAM on)
- RX current: 16mA
- TX current: 11mA @ -12dBm, 15mA @ +0dBm, 21mA @ +5dBm, 29mA @ +10dBm
- Connectable advertising at 1s interval: 49μA
- Non-connectable advertising at 1s interval: 32μA
- Connection maintenance at 1s interval: 23μA
- Temperature range: -40℃ to 105℃
- Tools and development environment:
- Keil compiler
- JLINK
