wisesun

WS8100F5ES1

RISC 32 Bit 32MHz SOP-16 Microcontrollers

SOP-16RoHSSold out at source

High-performance, low-power SOC chip compliant with BLE 5.0

Manufacturer: wisesun
Manufacturer part #: WS8100F5ES1
Store part #: C19185739
Package / case: SOP-16
Category: Microcontrollers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,970 in stock

#C19185739

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹74.22	₹74.22
10+	₹65.63	₹656.30
50+	₹61.56	₹3,078.00
100+	₹57.27	₹5,727.00
500+	₹54.69	₹27,345.00
1,000+	₹53.41	₹53,410.00

Quantity (min 1)

1 × ₹74.22

₹74.22

excl. GST

₹87.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

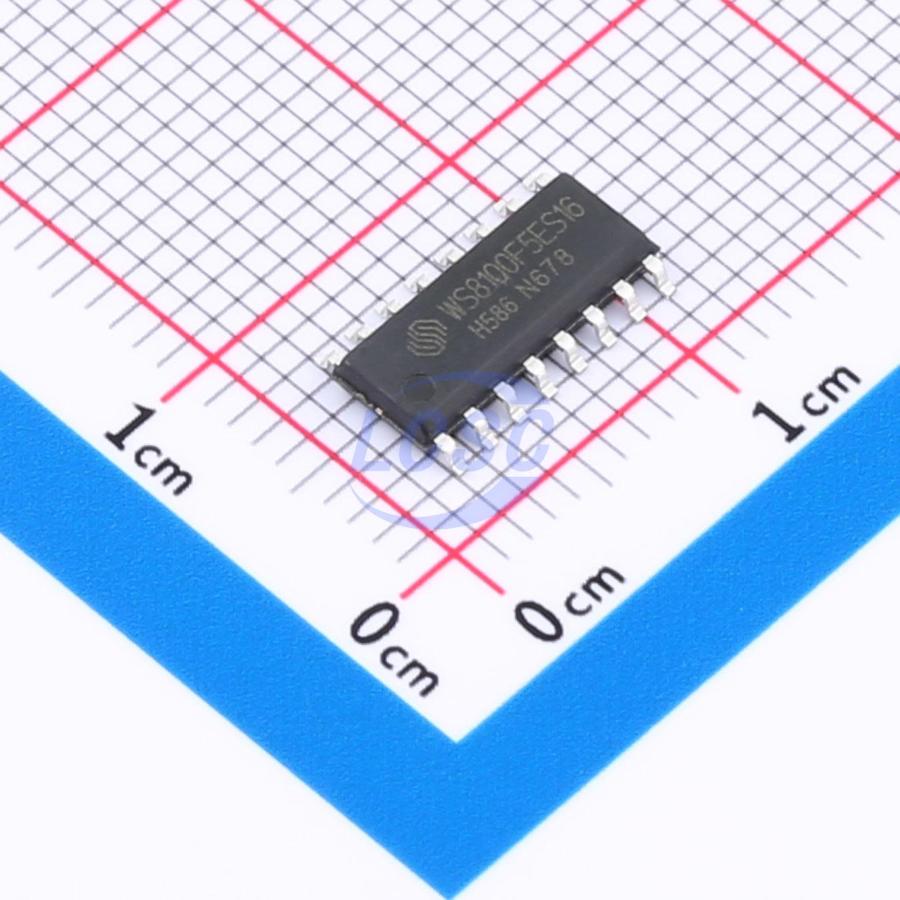

WS8100F5ES1

₹74.22 for 1 + GST

Specifications

ADC (Bit): 10bit
Operating Temperature: -40℃~+105℃
Voltage - Supply: 1.8V~3.6V
Program Memory Type: FLASH
Program Storage Size: 512KB
CPU Core: RISC
Core Size: 32 Bit
CPU Maximum Speed: 32MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: RoHS
Lifecycle: Sold out at source
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.16 g

Overview

WS8100 is a high-performance, low-power BLE SOC compliant with BLE 5.0 specification. It integrates an on-chip Balun, eliminating the need for impedance matching networks, external crystal load capacitors, and an external 32KHz crystal oscillator, maximizing BOM cost savings. An on-chip high-efficiency DC-DC buck converter enables ultra-low power consumption, making it ideal for cost-sensitive, low-power applications such as wearables, IoT, remote controls, transparent transmission, POS, Homekit, and Beacon.

Applications

Mouse & keyboard
Bluetooth remote control
Mesh smart lighting
Item tracker
Wearable devices

Key features

Microcontroller:
32-bit high-performance RISC core
16MHz/32MHz clock
512KB/1MB Flash
40KB cache SRAM
2-pin cJTAG and JTAG debug
OTA support
Peripherals:
All digital peripheral pins mappable to any GPIO
2× UART with hardware flow control (CTS/RTS)
2× SSI (SPI, MICROWIRE, and TI)
I²C
2× PWM output
Four general-purpose timer modules
RTC
Keyboard controller
Quadrature decoder
AES-128 security module
Integrated voltage detection
Integrated temperature sensor
10-bit ADC, 1.3MSPS, 8-channel analog multiplexer
16MHz IO clock output support
High-precision 32KHz RC oscillator
RF:
2.4GHz RF transceiver, compliant with BLE 5.0
-97dBm receive sensitivity
Programmable output power: -20dBm ~ +7dBm
Single-ended RF interface
Package:
7mm × 7mm QFN48 (32 GPIOs)
4mm × 4mm QFN32 (17 GPIOs)
Software Features:
Integrated Host and Controller protocol stack
Low Power:
Operating voltage: 1.8V to 3.6V
On-chip DC-DC converter
MCU active current: 1.4mA @ 16MHz
MCU sleep current: 0.6uA (IO wakeup); 1.1uA (32KHz on, 24K RAM on); 1.0uA (32KHz on, 8K RAM on)
RX current: 8.5mA
TX current: 9.5mA @ +0dBm; 16mA @ +7dBm
Average sleep power consumption:
Connectable advertising at 1s interval: 24uA
Connection maintained at 1s interval: 12uA
Non-connectable advertising at 1s interval: 15uA
Tools and Development Environment:
Keil compiler
JLINK
