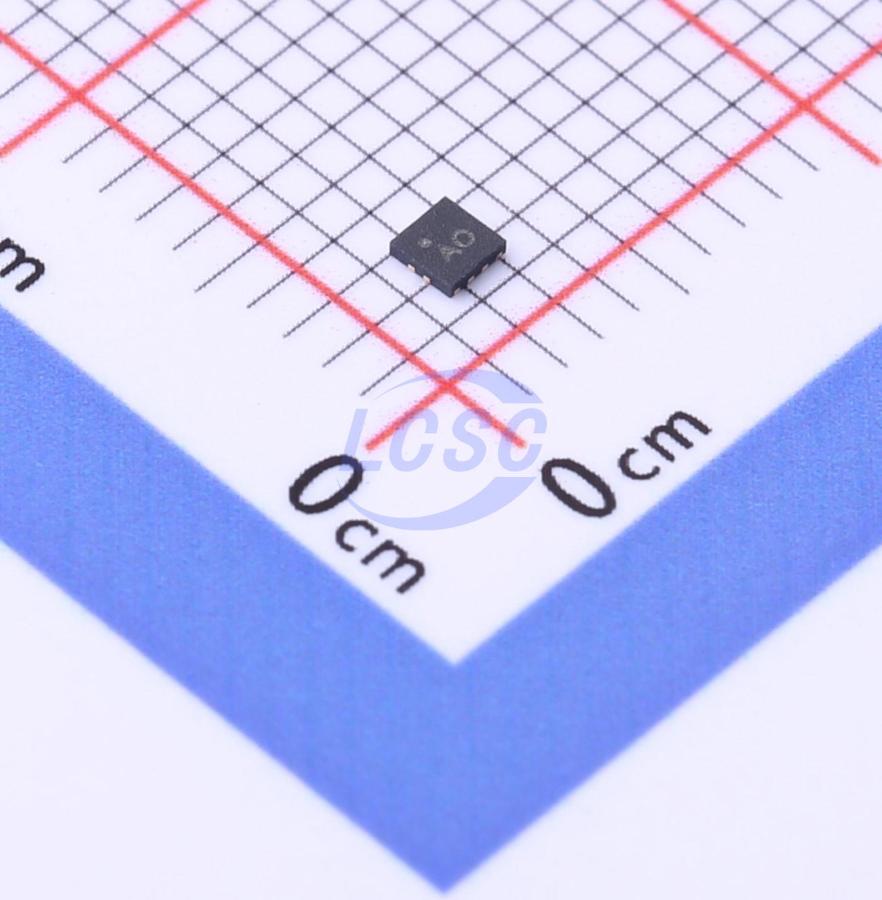

WILLSEMI

WUSB3801Q-12/TR

2 USB Type-C 1.2 QFN1616-12L(1.6x1.6) Interface Controllers

QFN1616-12L(1.6x1.6)RoHSActive

USB Type-C Configuration Channel Flippable Adapter

Manufacturer: WILLSEMI
Manufacturer part #: WUSB3801Q-12/TR
Store part #: C2931342
Package / case: QFN1616-12L(1.6x1.6)
Category: Interface Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,095 in stock

#C2931342

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹50.49	₹252.45
50+	₹40.36	₹2,018.00
150+	₹36.04	₹5,406.00
500+	₹30.63	₹15,315.00
3,000+	₹28.22	₹84,660.00
6,000+	₹26.78	₹1,60,680.00

Quantity (min 5, multiples of 5)

5 × ₹50.49

₹252.45

excl. GST

₹297.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

WUSB3801Q-12/TR

₹252.45 for 5 + GST

Specifications

Operating Temperature: -40℃~+125℃
Voltage - Supply: 2.7V~5.5V
Number of ports: 2
Features: Low-power mode
Quiescent Supply Current: 1uA
USB Protocol: USB Type-C 1.2
Current - Supply: 45uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.033 g

Overview

The WUSB3801 is a Type-C Configuration Channel Flippable Adapter chip with low power and high efficiency. The WUSB3801 supports channel identification of USB Type-C connector and auto detection of different power roles based on chip settings. This chip is compatible with USB Type-C Cable and Connector Specification Release 1.2 for varies of applications.

Applications

Smart-phones
Laptops
Tablets

Key features

USB Type-C Cable and Connector Specification Release 1.2 compatible
Global power saving and active mode
Pin or I²C controllable
Support auto CC ports configuration
Support SRC/SNK/DRP power mode
Support DRP with Try.SNK or Try.SRC
Support different current model controls and identifications (Default, 1.5A and 3.0A)
Accurate internal CC termination resistance and current source with high precision
High voltage EOS protection and DC 25V tolerance on CC1, CC2 and VBUSD pins
Wide single power supply range: 2.7 ~ 5.5V
QFN1616-12L packaging available (1.6x1.6x0.35mm)
