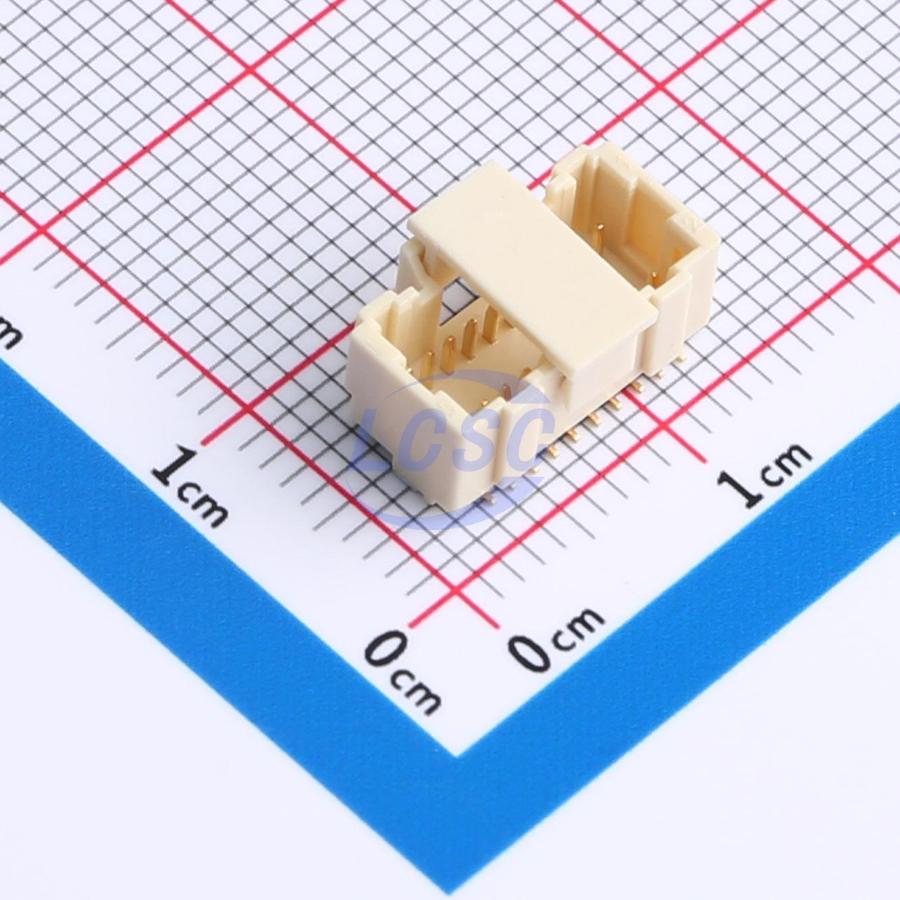

X1004WVS-2x10-9TV01 XKB Connection
XKB Connection

X1004WVS-2x10-9TV01

Connector Header 20 position 1mm Pitch Surface Mount,Vertical

SMD,P=1mmRoHSActive

CONN HEADER SMD 20POS 1mm

Manufacturer
XKB Connection
Manufacturer part #
X1004WVS-2x10-9TV01
Store part #
C5147184
Package / case
SMD,P=1mm
Category
Headers, Male Pins
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

198 in stock

#C5147184

Stock & price checked 3 days ago

QuantityUnit pricePack price
1+₹80.62₹80.62
10+₹65.41₹654.10
30+₹57.80₹1,734.00
100+₹50.21₹5,021.00
500+₹45.64₹22,820.00
800+₹43.46₹34,768.00

1 × ₹80.62

₹80.62

excl. GST

₹95.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 800 per reel

X1004WVS-2x10-9TV01

₹80.62 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Connector Type
Surface Mount,Vertical
Voltage Rating (Max)
50V
Contact Material
Brass
Number of PINs Per Row
10
Number of Rows
2
Pitch
1mm
Flame Retardant Rating
UL94V-0
Current Rating
800mA
Supplementary Features
Auxiliary Solder Pin
Operating Temperature
-40℃~+125℃
Number of PINs
20P
Contact Plating
Tin
Plastic Material
PA9T
X-Length of Bottom Edge on Board (Spacing Line)
12.3mm
Row Spacing
4mm
Pin Structure
2x10P

Packaging & compliance

RoHS
RoHS
Lifecycle
Active
Packaging
Tape & Reel (TR)
Standard pack
800 / Reel
Sold per
Piece
Minimum order
1
Unit weight
0.782 g
