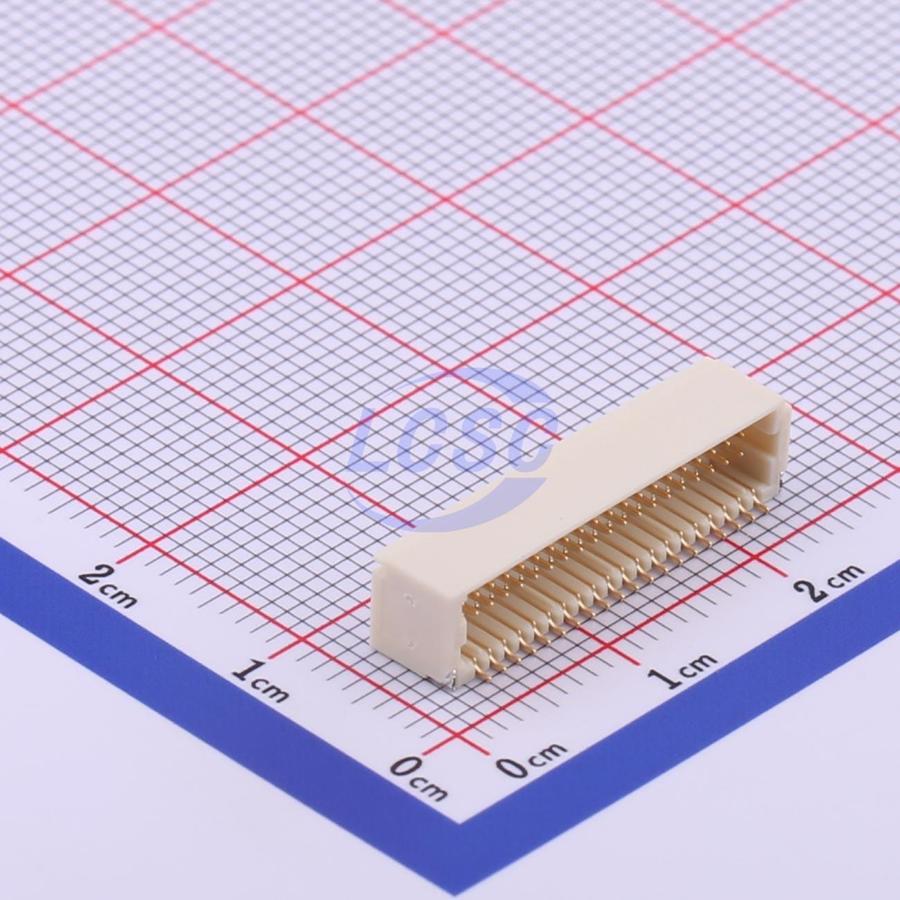

X1011WRS-2x20-9TV01
Connector Header 40 position 1mm Pitch 1A Surface Mount, Right Angle
SMD,P=1mm,Surface Mount,Right AngleRoHSActive
CONN HEADER SMD R/A 40POS 1mm
- Manufacturer
- XKB Connection
- Manufacturer part #
- X1011WRS-2x20-9TV01
- Store part #
- C718205
- Package / case
- SMD,P=1mm,Surface Mount,Right Angle
- Category
- Headers, Male Pins
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
362 in stock
#C718205
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.23 | ₹99.23 |
| 10+ | ₹80.58 | ₹805.80 |
| 30+ | ₹71.36 | ₹2,140.80 |
| 100+ | ₹62.15 | ₹6,215.00 |
| 500+ | ₹51.44 | ₹25,720.00 |
| 900+ | ₹48.65 | ₹43,785.00 |
1 × ₹99.23
₹99.23
excl. GST
₹117.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 900 per reel
X1011WRS-2x20-9TV01
₹99.23 for 1 + GST
Specifications
- Connector Type
- Surface Mount, Right Angle
- Voltage Rating (Max)
- 50V
- Contact Material
- Brass
- Number of PINs Per Row
- 20
- Number of Rows
- 2
- Pitch
- 1mm
- Flame Retardant Rating
- UL94V-0
- Current Rating
- 1A
- Supplementary Features
- Auxiliary Solder Pin
- Number of PINs
- 40P
- Contact Plating
- Tin
- Operating Temperature
- -25℃~+85℃
- Plastic Material
- PA9T
- X-Length of Bottom Edge on Board (Spacing Line)
- 23.1mm
- Row Spacing
- 4.1mm
- Pin Structure
- 2x20P
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 900 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.193 g
