X1311WV-27J-C40D24

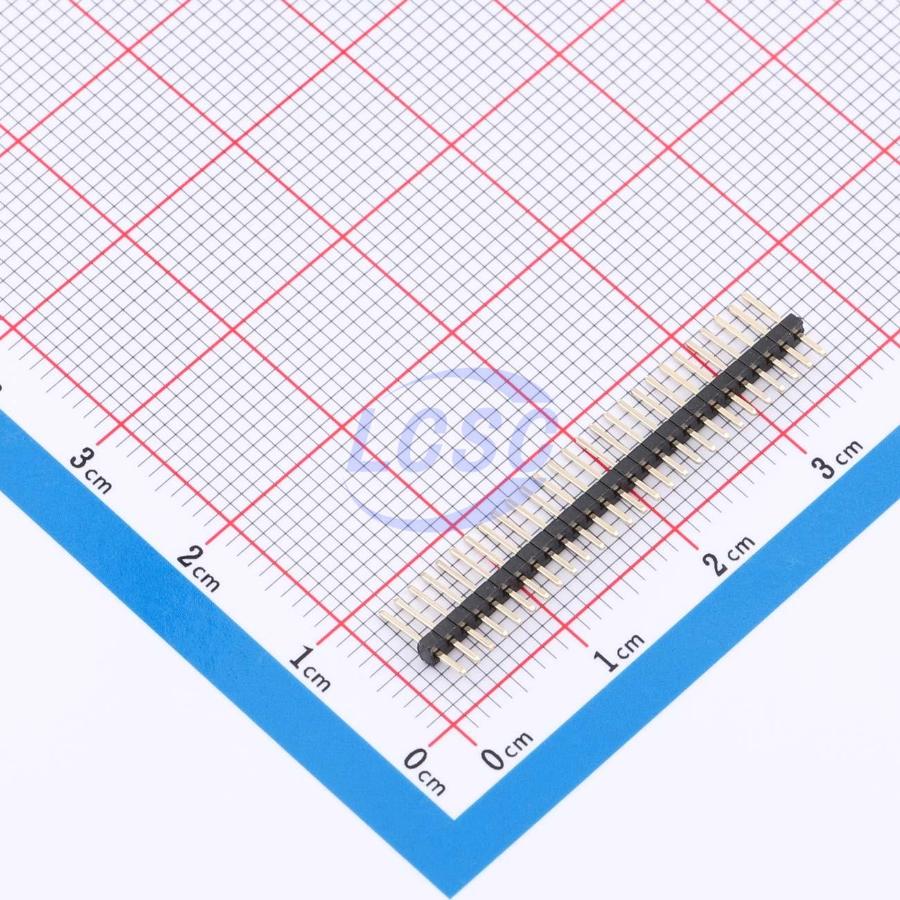

Pin Header 27 Position 1.27mm Pitch Single Row -40℃~+105℃
Through Hole,P=1.27mmRoHSActive
CONN HEADER 27POS 1.27mm SINGLE ROW TH
- Manufacturer
- XKB Connection
- Manufacturer part #
- X1311WV-27J-C40D24
- Store part #
- C5243707
- Package / case
- Through Hole,P=1.27mm
- Category
- Headers, Male Pins
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C5243707
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.93 | ₹249.65 |
| 50+ | ₹39.43 | ₹1,971.50 |
| 300+ | ₹34.93 | ₹10,479.00 |
| 600+ | ₹29.32 | ₹17,592.00 |
| 2,400+ | ₹26.82 | ₹64,368.00 |
| 5,100+ | ₹25.31 | ₹1,29,081.00 |
5 × ₹49.93
₹249.65
excl. GST
₹294.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 300 per bag
X1311WV-27J-C40D24
₹249.65 for 5 + GST
Specifications
- Connector Type
- Through Hole
- Voltage Rating (Max)
- 250V
- Contact Material
- Brass
- Number of Rows
- 1
- Pitch
- 1.27mm
- Circluar Pins/Square Pins
- Square pin
- Current Rating
- 3A
- Insulation Height
- 1mm
- Length of Mating Pin
- 4mm
- Length of End Connection Pin
- 2.4mm
- Operating Temperature
- -40℃~+105℃
- Contact Plating
- Gold
- Number of PINs
- 27P
- Color
- Black
- Pin Structure
- 1x27P
- Row Spacing
- 1.27mm
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 300 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.518 g
