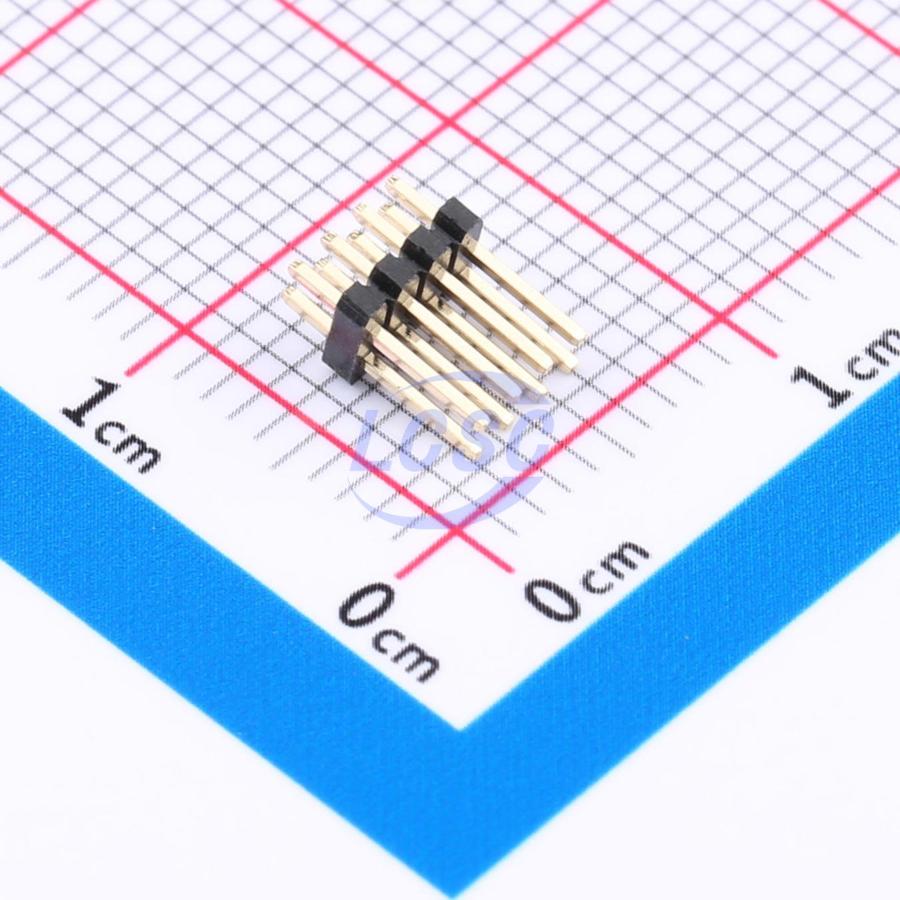

X1321WV-2x04J-C40D18
Pin Header 8 Position 1.27mm Pitch Dual Row -40℃~+105℃
Through Hole,P=1.27mmRoHSActive
CONN HEADER 8POS 1.27mm DUAL ROW TH
- Manufacturer
- XKB Connection
- Manufacturer part #
- X1321WV-2x04J-C40D18
- Store part #
- C5243449
- Package / case
- Through Hole,P=1.27mm
- Category
- Headers, Male Pins
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
350 in stock
#C5243449
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.51 | ₹72.55 |
| 50+ | ₹11.55 | ₹577.50 |
| 150+ | ₹10.05 | ₹1,507.50 |
| 1,000+ | ₹8.94 | ₹8,940.00 |
| 2,000+ | ₹8.04 | ₹16,080.00 |
| 5,000+ | ₹7.61 | ₹38,050.00 |
5 × ₹14.51
₹72.55
excl. GST
₹85.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
X1321WV-2x04J-C40D18
₹72.55 for 5 + GST
Specifications
- Connector Type
- Through Hole
- Voltage Rating (Max)
- 250V
- Contact Material
- Brass
- Number of Rows
- 2
- Pitch
- 1.27mm
- Circluar Pins/Square Pins
- Square pin
- Current Rating
- 3A
- Insulation Height
- 1mm
- Length of Mating Pin
- 4mm
- Length of End Connection Pin
- 1.8mm
- Operating Temperature
- -40℃~+105℃
- Contact Plating
- Gold
- Number of PINs
- 8P
- Color
- Black
- Pin Structure
- 2x4P
- Row Spacing
- 1.27mm
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.101 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | X1322WV-2x04H-C40D30-E80#C5243645XKB Connection · Through Hole,P=1.27mm | XKB Connection | Through Hole,P=1.27mm | 205 | ₹25.43 · 205 in stock | View |
