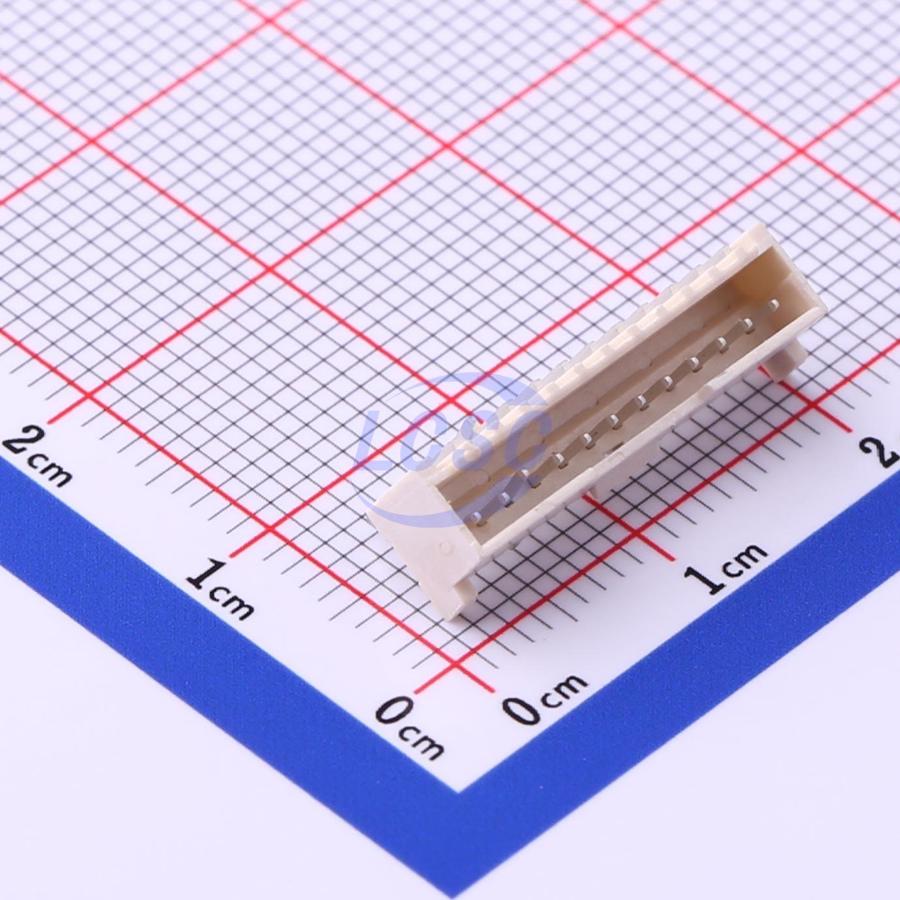

X1511WRS-12LHF-LPSW XKB Connection
XKB Connection

X1511WRS-12LHF-LPSW

Connector Header 12 position 1.5mm Pitch 3A Surface Mount, Right Angle

SMD,P=1.5mm,Surface Mount,Right AngleRoHSActive

CONN HEADER SMD R/A 12POS 1.5mm

Manufacturer
XKB Connection
Manufacturer part #
X1511WRS-12LHF-LPSW
Store part #
C692547
Package / case
SMD,P=1.5mm,Surface Mount,Right Angle
Category
Headers, Male Pins
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

320 in stock

#C692547

Stock & price checked 4 days ago

QuantityUnit pricePack price
5+₹46.27₹231.35
50+₹36.53₹1,826.50
150+₹32.36₹4,854.00
1,000+₹27.16₹27,160.00
2,000+₹24.85₹49,700.00
5,000+₹23.46₹1,17,300.00

5 × ₹46.27

₹231.35

excl. GST

₹272.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 1,000 per reel

X1511WRS-12LHF-LPSW

₹231.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Connector Type
Surface Mount, Right Angle
Voltage Rating (Max)
350V
Contact Material
Brass
Number of PINs Per Row
12
Number of Rows
1
Pitch
1.5mm
Flame Retardant Rating
UL94V-0
Current Rating
3A
Number of PINs
12P
Contact Plating
Tin
Operating Temperature
-55℃~+105℃
Plastic Material
LCP
X-Length of Bottom Edge on Board (Spacing Line)
19.8mm
Pin Structure
1x12P

Packaging & compliance

RoHS
RoHS
Lifecycle
Active
Packaging
Tape & Reel (TR)
Standard pack
1,000 / Reel
Sold per
Piece
Minimum order
5 (multiples of 5)
Unit weight
0.737 g
