XKB ConnectionDatasheet (PDF)

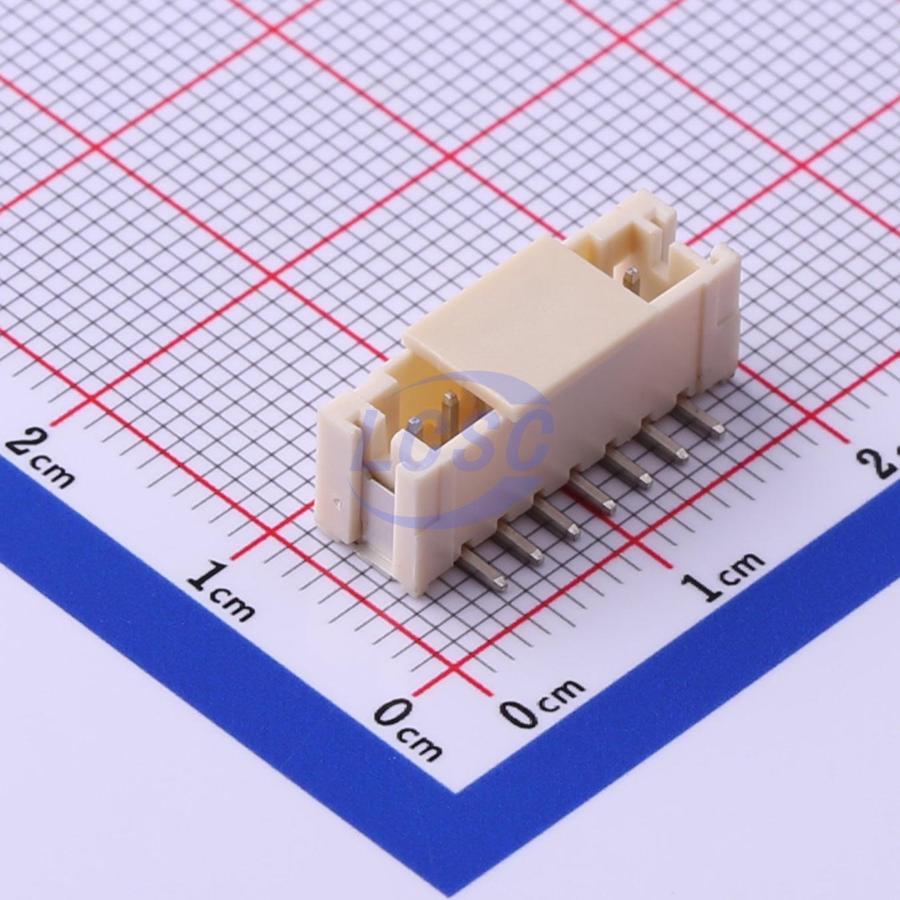

X2016WVS-07-9TSW
Connector Header 7 position 2mm Pitch 2A Surface Mount,Vertical
SMD,P=2mmRoHSActive
CONN HEADER SMD 7POS 2mm
- Manufacturer
- XKB Connection
- Manufacturer part #
- X2016WVS-07-9TSW
- Store part #
- C519164
- Package / case
- SMD,P=2mm
- Category
- Headers, Male Pins
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
120 in stock
#C519164
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.88 | ₹134.40 |
| 50+ | ₹21.49 | ₹1,074.50 |
| 150+ | ₹19.17 | ₹2,875.50 |
| 700+ | ₹15.08 | ₹10,556.00 |
| 2,800+ | ₹13.80 | ₹38,640.00 |
| 4,900+ | ₹13.02 | ₹63,798.00 |
5 × ₹26.88
₹134.40
excl. GST
₹158.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 700 per reel
X2016WVS-07-9TSW
₹134.40 for 5 + GST
Specifications
- Connector Type
- Surface Mount,Vertical
- Reference Series
- PH
- Voltage Rating (Max)
- 100V
- Contact Material
- Brass
- Number of PINs Per Row
- 7
- Number of Rows
- 1
- Pitch
- 2mm
- Flame Retardant Rating
- UL94V-0
- Current Rating
- 2A
- Number of PINs
- 7P
- Contact Plating
- Tin
- Operating Temperature
- -25℃~+85℃
- Plastic Material
- PA9T
- Pin Structure
- 1x7P
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 700 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.207 g
