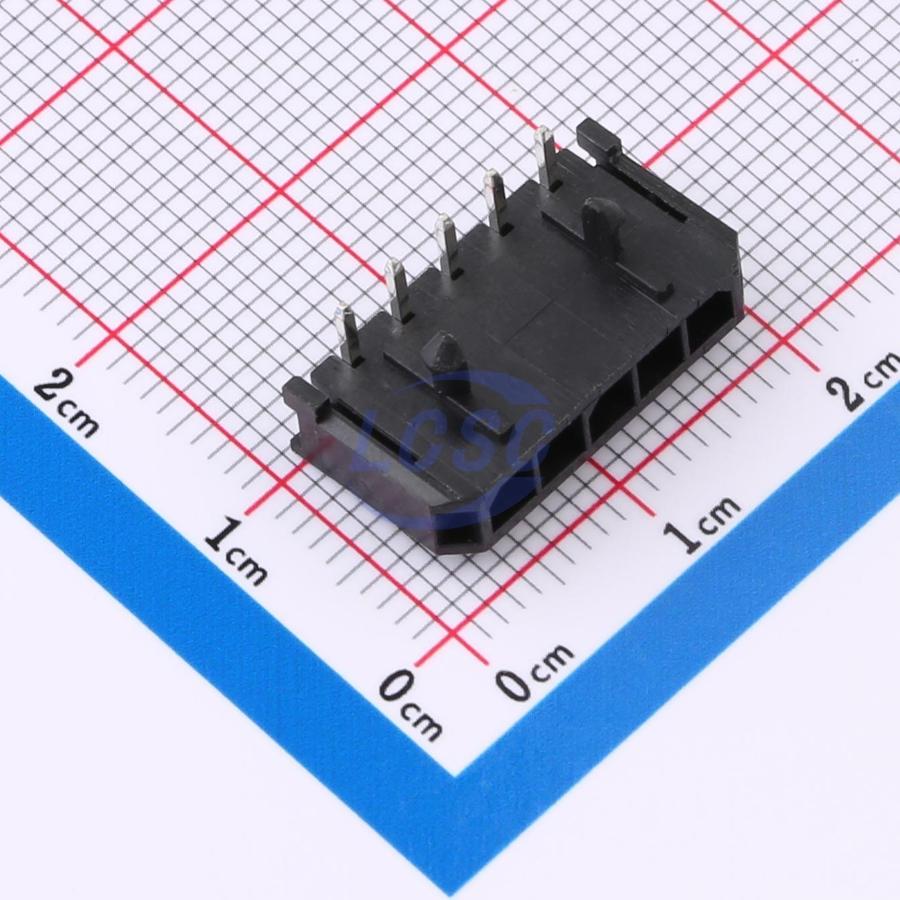

X3025WR-05-9TSN XKB Connection
XKB Connection

X3025WR-05-9TSN

Connector Header 5 position 3mm Pitch 5A Right Angle

Through Hole,Right Angle,P=3mmRoHSActive

CONN HEADER TH R/A 5POS 3mm

Manufacturer
XKB Connection
Manufacturer part #
X3025WR-05-9TSN
Store part #
C437074
Package / case
Through Hole,Right Angle,P=3mm
Category
Headers, Male Pins
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

305 in stock

#C437074

Stock & price checked 2 days ago

QuantityUnit pricePack price
5+₹34.31₹171.55
50+₹26.94₹1,347.00
150+₹23.79₹3,568.50
1,000+₹19.85₹19,850.00
2,000+₹18.09₹36,180.00
5,000+₹17.04₹85,200.00

5 × ₹34.31

₹171.55

excl. GST

₹202.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 1,000 per bag

X3025WR-05-9TSN

₹171.55 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Connector Type
Right Angle
Voltage Rating (Max)
250V
Contact Material
Brass
Number of PINs Per Row
5
Number of Rows
1
Pitch
3mm
Flame Retardant Rating
UL94V-0
Current Rating
5A
Supplementary Features
Harpoon Contact (Plastic)
Number of PINs
5P
Contact Plating
Tin
Operating Temperature
-45℃~+125℃
Plastic Material
PA9T
X-Length of Bottom Edge on Board (Spacing Line)
18.65mm
Pin Structure
1x5P

Packaging & compliance

RoHS
RoHS
Lifecycle
Active
Packaging
Bag-packed
Standard pack
1,000 / Bag
Sold per
Piece
Minimum order
5 (multiples of 5)
Unit weight
0.888 g
