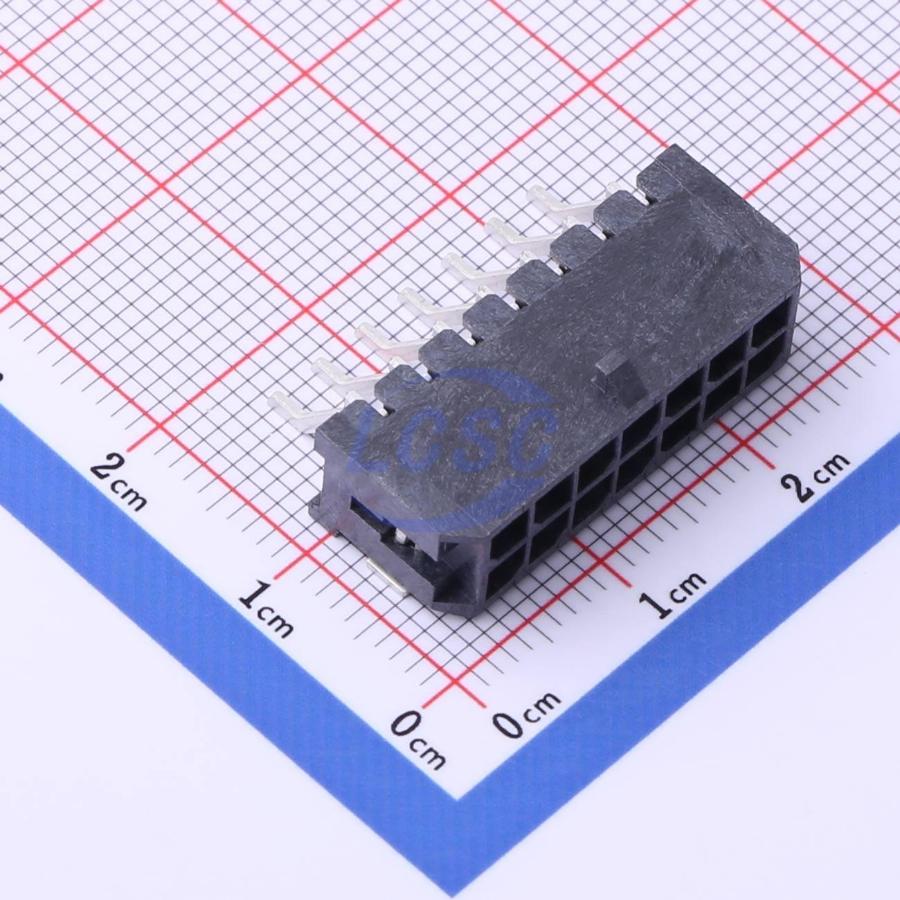

X3025WRS-2x07E-LPSW XKB Connection
XKB Connection

X3025WRS-2x07E-LPSW

Connector Header 14 position 3mm Pitch 5A Surface Mount, Right Angle

SMD,P=3mm,Surface Mount,Right AngleRoHSActive

CONN HEADER SMD R/A 14POS 3mm

Manufacturer
XKB Connection
Manufacturer part #
X3025WRS-2x07E-LPSW
Store part #
C2882813
Package / case
SMD,P=3mm,Surface Mount,Right Angle
Category
Headers, Male Pins
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

133 in stock

#C2882813

Stock & price checked 2 days ago

QuantityUnit pricePack price
1+₹187.72₹187.72
10+₹156.87₹1,568.70
30+₹139.93₹4,197.90
100+₹120.87₹12,087.00
500+₹108.22₹54,110.00
1,000+₹104.37₹1,04,370.00

1 × ₹187.72

₹187.72

excl. GST

₹221.51 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 200 per reel

X3025WRS-2x07E-LPSW

₹187.72 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Connector Type
Surface Mount, Right Angle
Voltage Rating (Max)
250V
Contact Material
Brass
Number of PINs Per Row
7
Number of Rows
2
Pitch
3mm
Flame Retardant Rating
UL94V-0
Current Rating
5A
Supplementary Features
Auxiliary Solder Pin
Number of PINs
14P
Contact Plating
Tin
Operating Temperature
-40℃~+105℃
Plastic Material
LCP
X-Length of Bottom Edge on Board (Spacing Line)
24.65mm
Pin Structure
2x7P

Packaging & compliance

RoHS
RoHS
Lifecycle
Active
Packaging
Tape & Reel (TR)
Standard pack
200 / Reel
Sold per
Piece
Minimum order
1
Unit weight
4.105 g
