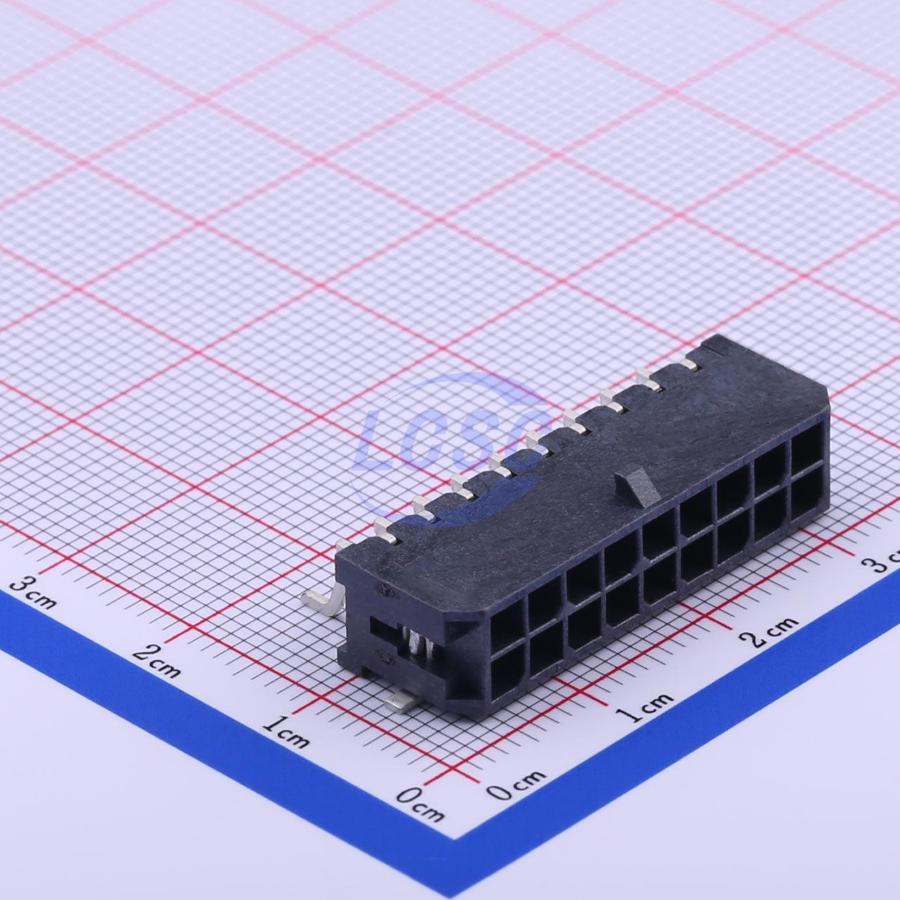

X3025WRS-2x09D-LPSW XKB Connection
XKB Connection

X3025WRS-2x09D-LPSW

Connector Header 18 position 3mm Pitch 5A Surface Mount, Right Angle

SMD,P=3mm,Surface Mount,Right AngleRoHSActive

CONN HEADER SMD R/A 18POS 3mm

Manufacturer
XKB Connection
Manufacturer part #
X3025WRS-2x09D-LPSW
Store part #
C400362
Package / case
SMD,P=3mm,Surface Mount,Right Angle
Category
Headers, Male Pins
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

259 in stock

#C400362

Stock & price checked 8 days ago

QuantityUnit pricePack price
1+₹103.91₹103.91
10+₹92.62₹926.20
30+₹86.99₹2,609.70
100+₹80.69₹8,069.00
500+₹77.44₹38,720.00
1,000+₹75.70₹75,700.00

1 × ₹103.91

₹103.91

excl. GST

₹122.61 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 200 per reel

X3025WRS-2x09D-LPSW

₹103.91 for 1 + GST

Specifications

Connector Type
Surface Mount, Right Angle
Voltage Rating (Max)
250V
Contact Material
Brass
Number of PINs Per Row
9
Number of Rows
2
Pitch
3mm
Flame Retardant Rating
UL94V-0
Current Rating
5A
Supplementary Features
Auxiliary Solder Pin
Number of PINs
18P
Contact Plating
Tin
Operating Temperature
-25℃~+85℃
Plastic Material
LCP
Pin Structure
2x9P
Row Spacing
3mm

Packaging & compliance

RoHS
RoHS
Lifecycle
Active
Packaging
Tape & Reel (TR)
Standard pack
200 / Reel
Sold per
Piece
Minimum order
1
Unit weight
5 g
