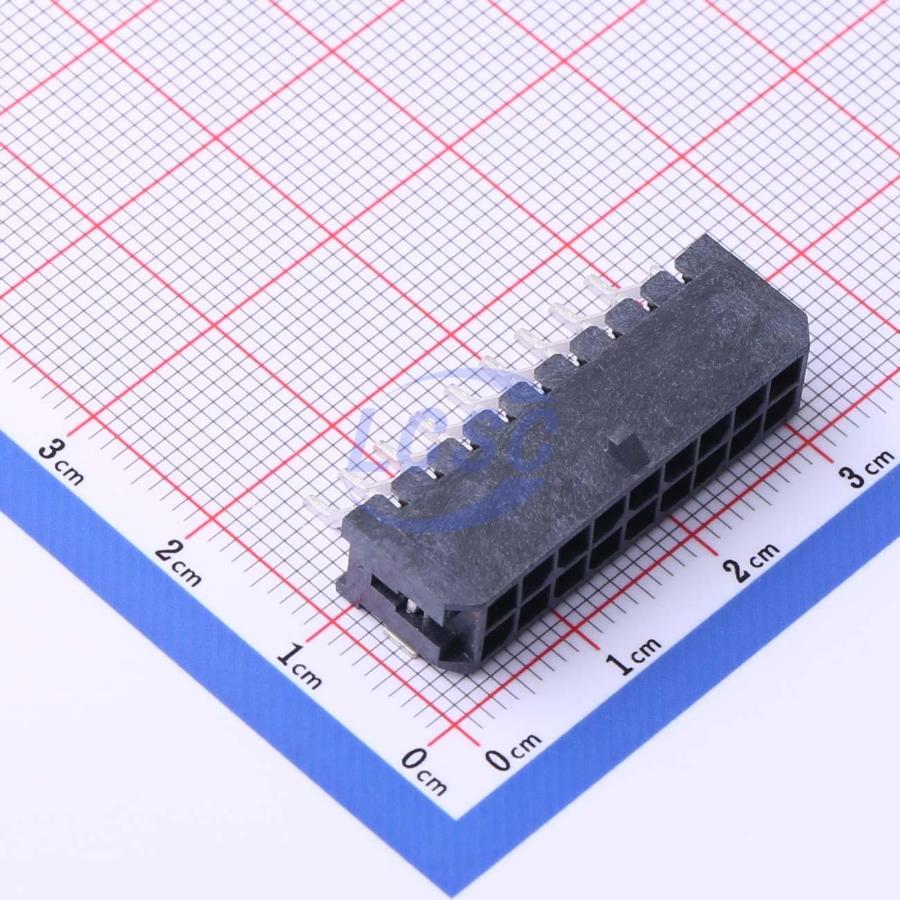

X3025WRS-2x09E-LPSW
Connector Header 18 position 3mm Pitch 5A Surface Mount, Right Angle
SMD,P=3mm,Surface Mount,Right AngleRoHSActive
CONN HEADER SMD R/A 18POS 3mm
- Manufacturer
- XKB Connection
- Manufacturer part #
- X3025WRS-2x09E-LPSW
- Store part #
- C2882815
- Package / case
- SMD,P=3mm,Surface Mount,Right Angle
- Category
- Headers, Male Pins
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C2882815
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹189.00 | ₹189.00 |
| 10+ | ₹175.30 | ₹1,753.00 |
| 30+ | ₹166.72 | ₹5,001.60 |
| 100+ | ₹141.87 | ₹14,187.00 |
| 500+ | ₹137.79 | ₹68,895.00 |
| 1,000+ | ₹136.08 | ₹1,36,080.00 |
1 × ₹189.00
₹189.00
excl. GST
₹223.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 200 per reel
X3025WRS-2x09E-LPSW
₹189.00 for 1 + GST
Specifications
- Connector Type
- Surface Mount, Right Angle
- Voltage Rating (Max)
- 250V
- Contact Material
- Brass
- Number of PINs Per Row
- 9
- Number of Rows
- 2
- Pitch
- 3mm
- Flame Retardant Rating
- UL94V-0
- Current Rating
- 5A
- Supplementary Features
- Auxiliary Solder Pin
- Number of PINs
- 18P
- Contact Plating
- Tin
- Operating Temperature
- -40℃~+105℃
- Plastic Material
- LCP
- X-Length of Bottom Edge on Board (Spacing Line)
- 30.65mm
- Pin Structure
- 2x9P
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 200 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.755 g
