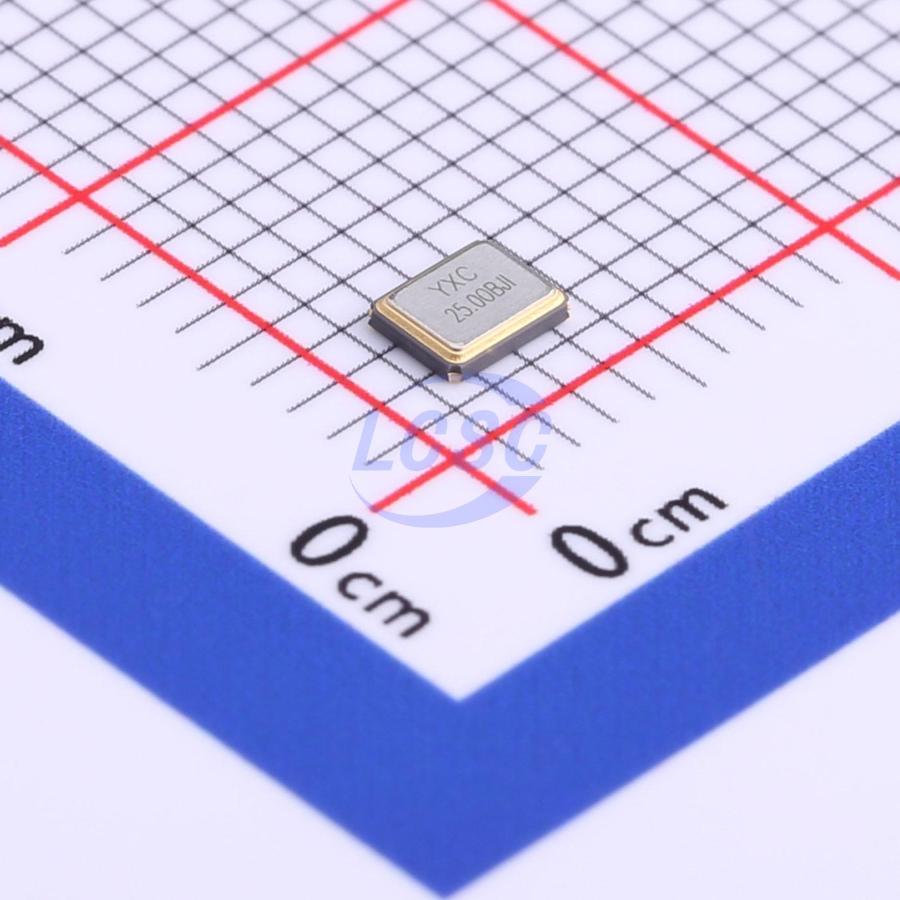

X322525MOB4SI

To ensure compatibility with the YXC Crystal Oscillators X322525MOB4SI, your microcontroller or IC must support a fundamental frequency of 25MHz and be configurable to work with a 12pF load capacitance ($C_L$). You will also need to select matching external load capacitors based on your circuit board's stray capacitance to ensure stable oscillation.

You can find drop-in replacements by clicking the "Show similar products" option on the LCSC product page. When looking for alternatives, ensure they share the same SMD3225-4P package dimensions ($3.20 \times 2.50 \times 0.70\text{ mm}$), a nominal frequency of 25MHz, and a matching 12pF load capacitance to maintain standard performance.

This high-accuracy component features reduced EMI, high frequency stability, and an operating temperature range of $-40^\circ\text{C}$ to $+85^\circ\text{C}$. This makes it highly suitable for IoT devices, smart wearables, and various consumer or industrial communication modules.

The X322525MOB4SI features a nominal frequency of 25MHz, a frequency stability of $\pm20\text{ppm}$, and a normal temperature frequency tolerance of $\pm10\text{ppm}$. It operates within a load capacitance of 12pF and has an Equivalent Series Resistance (ESR) of $50\Omega$.

Yes, this crystal comes in a standard SMD3225-4P surface-mount package. During PCB layout and implementation, place the crystal as close to the microcontroller's oscillator pins as possible to minimize stray capacitance and loop area, which helps reduce electromagnetic interference (EMI) and ensures reliable startup.
