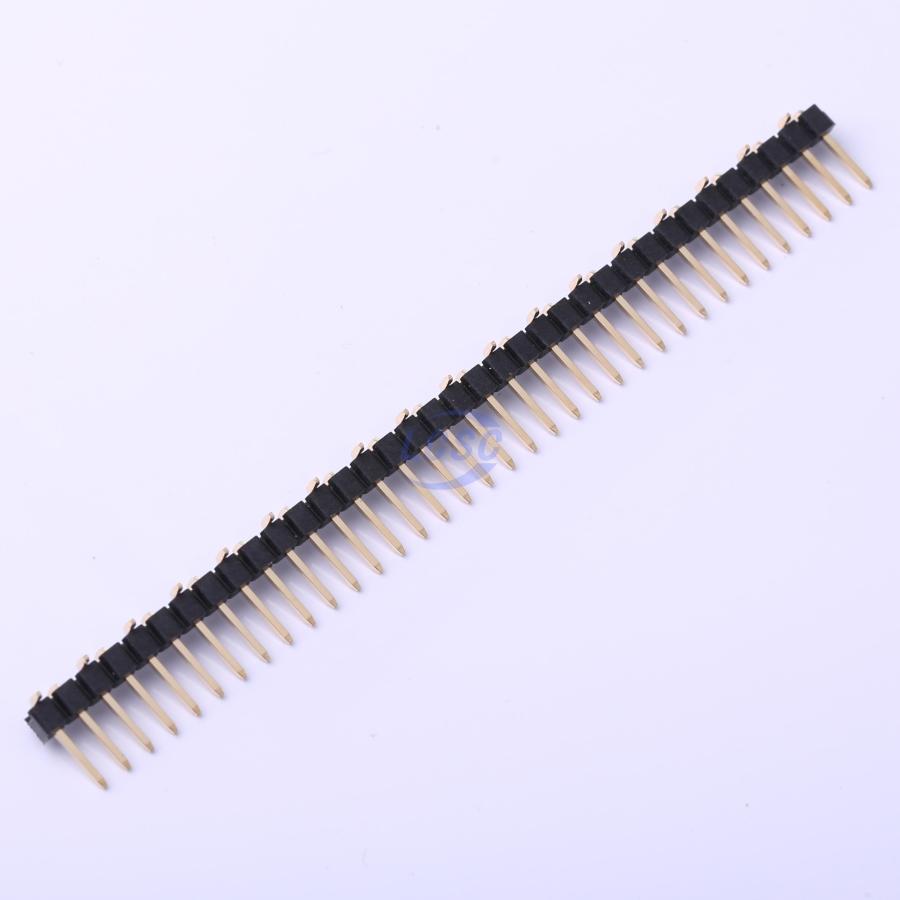

X6511WVS-36H-C60D48R1
Pin Header 36 Position 2.54mm Pitch Single Row -40℃~+105℃
SMD,P=2.54mm(Staggered Pins)RoHSActive
CONN HEADER 36POS 2.54mm SINGLE ROW SMD
- Manufacturer
- XKB Connection
- Manufacturer part #
- X6511WVS-36H-C60D48R1
- Store part #
- C2883832
- Package / case
- SMD,P=2.54mm(Staggered Pins)
- Category
- Headers, Male Pins
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
143 in stock
#C2883832
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.00 | ₹90.00 |
| 10+ | ₹73.29 | ₹732.90 |
| 30+ | ₹64.72 | ₹1,941.60 |
| 300+ | ₹54.86 | ₹16,458.00 |
| 600+ | ₹49.93 | ₹29,958.00 |
| 900+ | ₹47.36 | ₹42,624.00 |
1 × ₹90.00
₹90.00
excl. GST
₹106.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 300 per bag
X6511WVS-36H-C60D48R1
₹90.00 for 1 + GST
Specifications
- Connector Type
- Surface Mount,Vertical
- Voltage Rating (Max)
- 250V
- Contact Material
- Brass
- Number of Rows
- 1
- Pitch
- 2.54mm
- Circluar Pins/Square Pins
- Square pin
- Current Rating
- 3A
- Insulation Height
- 2.5mm
- Length of Mating Pin
- 6mm
- Number of PINs
- 36P
- Contact Plating
- Gold
- Operating Temperature
- -40℃~+105℃
- Color
- Black
- Pin Structure
- 1x36P
- Row Spacing
- 2.54mm
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 300 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.86 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | X6511WVS-36H-C60D48R2#C2883793XKB Connection · SMD,P=2.54mm(Staggered Pins) | XKB Connection | SMD,P=2.54mm(Staggered Pins) | 271 | ₹90.86 · 271 in stock | View |
