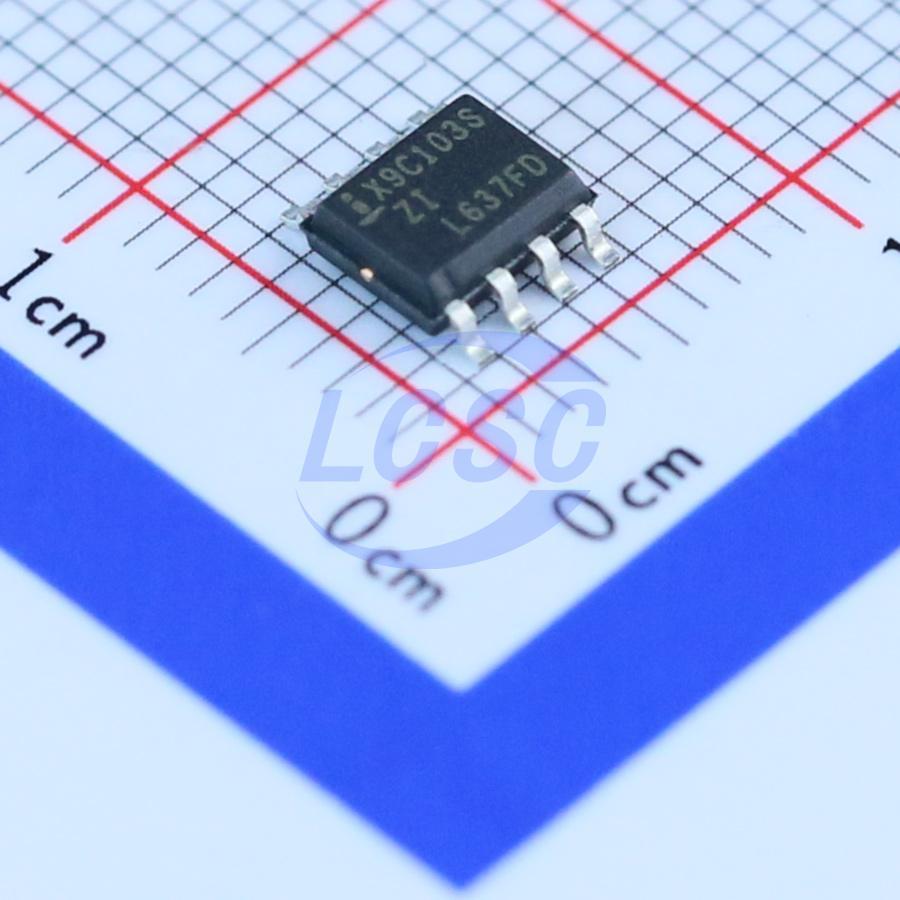

X9C103SIZT1

The X9Cxxx are digitally controlled (XDCP) potentiometers. The device consists of a resistor array, wiper switches, a control section, and nonvolatile memory. The wiper position is controlled by a three- wire interface. The potentiometer is implemented by a resistor array composed of 99 resistive elements and a wiper switching network. Between each element and at either end are tap points accessible to the wiper terminal. The position of the wiper element is controlled by the CS, U/D, and INC inputs. The position of the wiper can be stored in nonvolatile memory and then be recalled upon a subsequent power- up operation.

Applications

• control
• parameter adjustments
• signal processing

Key features

• Solid-state potentiometer
• 3-wire serial interface
• 100-wiper tap points
• Wiper position stored in nonvolatile memory and recalled on power-up
• 99 resistive elements
• Temperature compensated
• End to end resistance, ±20%
• Terminal voltages, ±5V
• Low power CMOS
• VCC = 5V
• Active current, 3mA max.
• Standby current, 750μA max.
• High reliability
• Endurance, 100,000 data changes per bit
• Register data retention, 100 years
• Packages: 8 Ld SOIC and 8 Ld PDIP
• Pb-free plus anneal available (RoHS compliant)
