XBLWDatasheet (PDF)

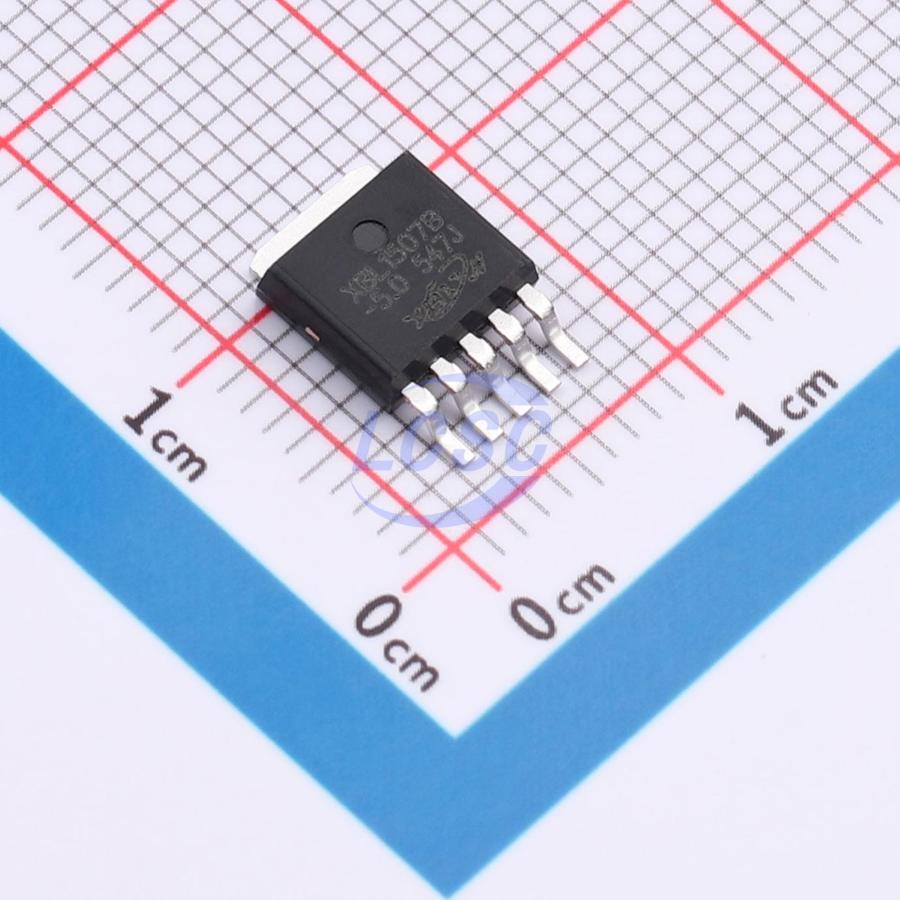

XBL1507B-5.0
150kHz Step-down type Fixed 5V 3A TO-252-5L Voltage Regulators - DC DC Switching Regulators RoHS
TO-252-5LROHS CompliantActive
150KHz PWM buck DC-DC converter, fixed 5V output, drives 3A load
- Manufacturer
- XBLW
- Manufacturer part #
- XBL1507B-5.0
- Store part #
- C53202472
- Package / case
- TO-252-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,715 in stock
#C53202472
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.64 | ₹54.64 |
| 10+ | ₹43.37 | ₹433.70 |
| 30+ | ₹38.38 | ₹1,151.40 |
| 100+ | ₹32.31 | ₹3,231.00 |
| 500+ | ₹29.49 | ₹14,745.00 |
| 1,000+ | ₹27.76 | ₹27,760.00 |
1 × ₹54.64
₹54.64
excl. GST
₹64.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XBL1507B-5.0
₹54.64 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 150kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Fixed
- Topology
- Buck
- Operating Voltage
- 7V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 5V
- Output Current
- 3A
- Quiescent Current
- 4.5mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.397 g
Overview
XBL1507B is a 150 KHz fixed-frequency PWM step-down DC/DC converter capable of driving a 3A load, featuring high efficiency, low ripple, and excellent line and load regulation. This regulator requires minimal external components, is easy to use, and integrates internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit can linearly adjust the duty cycle from 0% to 100%. Enable functionality and overcurrent protection are integrated on-chip. When the secondary current limit is triggered, the operating frequency reduces from 150 KHz to 50 KHz. The built-in compensation module minimizes the external component count.
Applications
- Portable DVD
- LCD monitor / TV
- Battery charger
- ADSL modem
- Telecom / networking equipment
Key features
- 4.5V to 40V wide input voltage range
- Available in 3.3V, 5V, 12V fixed voltage and adjustable versions
- Output voltage adjustable from 1.23V to 37V
- Maximum duty cycle 100%
- Minimum dropout voltage 1.0V
- Fixed 150KHz switching frequency
- 3A continuous output current capability
- Internal optimized power transistor
- High efficiency
- TTL shutdown capability
- Excellent line and load regulation
- Built-in thermal shutdown
- Built-in current limiting
- Built-in output short-circuit protection
- Available in TO252-5L package
