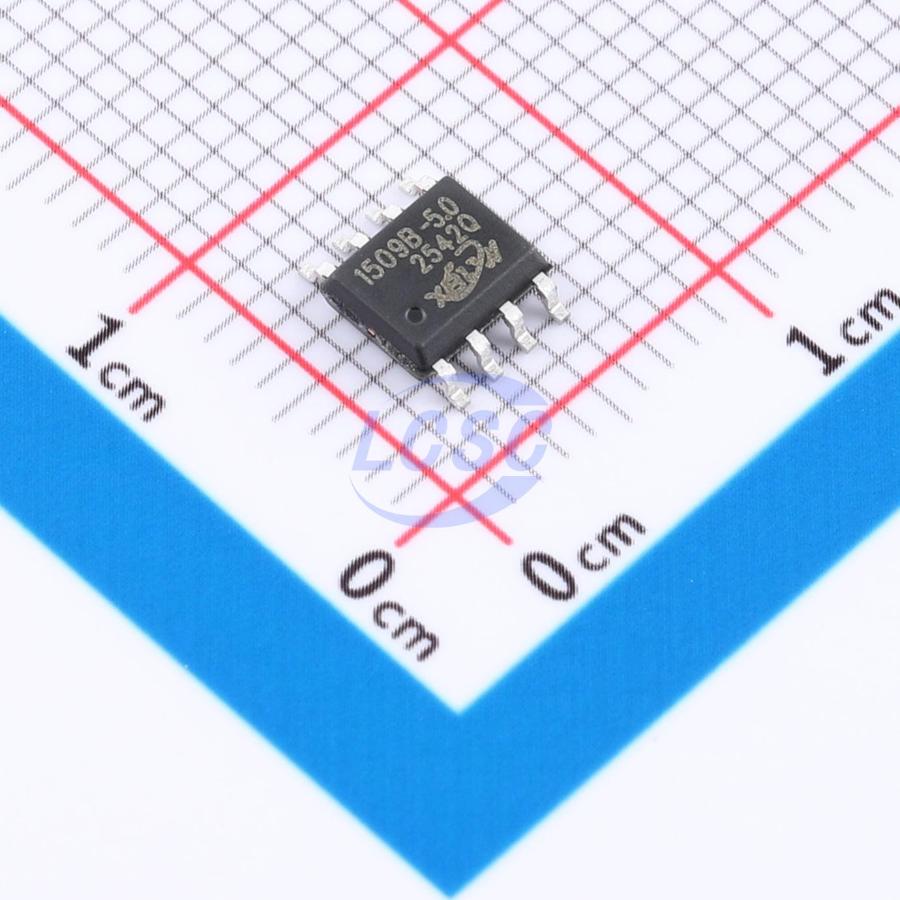

XBL1509B-5.0
150kHz Step-down type Fixed 2A 5V SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
150KHz fixed-frequency PWM buck DC-DC converter, high efficiency low ripple, supports 2A load drive
- Manufacturer
- XBLW
- Manufacturer part #
- XBL1509B-5.0
- Store part #
- C52711687
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,130 in stock
#C52711687
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.70 | ₹103.50 |
| 50+ | ₹16.35 | ₹817.50 |
| 150+ | ₹14.49 | ₹2,173.50 |
| 500+ | ₹12.17 | ₹6,085.00 |
| 2,500+ | ₹11.13 | ₹27,825.00 |
| 4,000+ | ₹10.52 | ₹42,080.00 |
5 × ₹20.70
₹103.50
excl. GST
₹122.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
XBL1509B-5.0
₹103.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 150kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Fixed
- Topology
- Buck
- Operating Voltage
- 7V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Output Voltage
- 5V
- Quiescent Current
- 4.5mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.157 g
Overview
XBL1509B is a 150KHz fixed-frequency PWM step-down DC-DC converter capable of driving a 2A load, featuring high efficiency, low ripple, and excellent line and load regulation. The regulator requires minimal external components, is easy to use, and integrates internal frequency compensation and a fixed-frequency oscillator. Its PWM control circuit enables linear duty cycle adjustment from 0% to 100%. Enable functionality and overcurrent protection are integrated internally. When the secondary current limiting function is triggered, the operating frequency reduces from 150KHz to 50KHz. The built-in compensation module minimizes the number of external components.
Applications
- Portable DVD
- LCD Monitor / TV
- Battery Charger
- ADSL Modem
- Telecom / Network Equipment
Key features
- 4.5V to 40V wide input voltage range
- Available in 3.3V, 5V, 12V and adjustable versions
- Output voltage adjustable from 1.23V to 37V
- Maximum duty cycle 100%
- Minimum dropout voltage 1.0V
- Fixed 150KHz switching frequency
- 2A continuous output current capability
- Internal optimized power transistor
- High efficiency
- TTL shutdown capability
- Excellent line and load regulation
- Built-in thermal shutdown protection
- Built-in current limiting
- Built-in output short-circuit protection
- Available in SOP-8 package
