XBLW

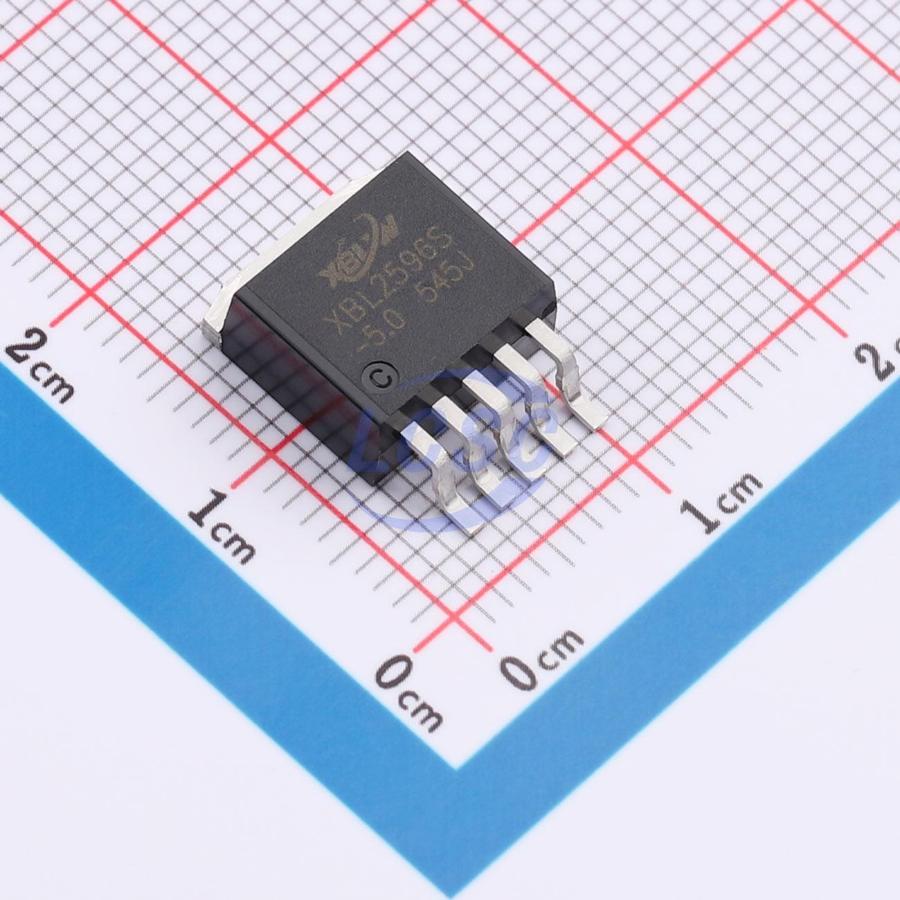

XBL2596S-5.0

150kHz Step-down type Fixed 5V 3A TO-263-5L Voltage Regulators - DC DC Switching Regulators RoHS

TO-263-5LROHS CompliantActive

150KHz PWM buck DC-DC converter, fixed 5V output, drives 3A load

Manufacturer: XBLW
Manufacturer part #: XBL2596S-5.0
Store part #: C53202470
Package / case: TO-263-5L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,825 in stock

#C53202470

Stock & price checked 22 h ago

Quantity	Unit price	Pack price
5+	₹41.49	₹207.45
50+	₹32.78	₹1,639.00
150+	₹29.04	₹4,356.00
1,000+	₹24.38	₹24,380.00
2,000+	₹22.31	₹44,620.00
5,000+	₹21.06	₹1,05,300.00

Quantity (min 5, multiples of 5)

5 × ₹41.49

₹207.45

excl. GST

₹244.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

XBL2596S-5.0

₹207.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 150kHz
Function: Step-down type
Number of Outputs: 1
Features: Overcurrent Protection
Output Type: Fixed
Topology: Buck
Operating Voltage: 7V~40V
Switch tube (built-in/external): Built-in
Output Voltage: 5V
Output Current: 3A
Quiescent Current: 4.5mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.863 g

Overview

XBL2596 is a 150KHz fixed-frequency PWM step-down DC/DC converter capable of driving a 3A load, featuring high efficiency, low ripple, and excellent line and load regulation. This regulator requires minimal external components, is easy to use, and integrates internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit enables linear duty cycle adjustment from 0% to 100%. Enable functionality and overcurrent protection are integrated internally. When the secondary current limit is triggered, the operating frequency reduces from 150KHz to 50KHz. A built-in compensation module minimizes the number of external components required.

Applications

Portable DVD
LCD monitor / TV
Battery charger
ADSL modem
Telecom / networking equipment

Key features

Wide input voltage range: 4.5V to 40V
Available in 3.3V, 5V, 12V and adjustable versions
Output voltage adjustable from 1.23V to 37V
Maximum duty cycle 100%
Minimum dropout voltage 1.0V
Fixed 150KHz switching frequency
Constant 3A output current capability
Internally optimized power transistor
High efficiency
TTL shutdown capability
Excellent line and load regulation
Built-in thermal shutdown
Built-in current limiting
Built-in output short-circuit protection
Available in TO220-5L/TO263-5L packages
