XBLWDatasheet (PDF)

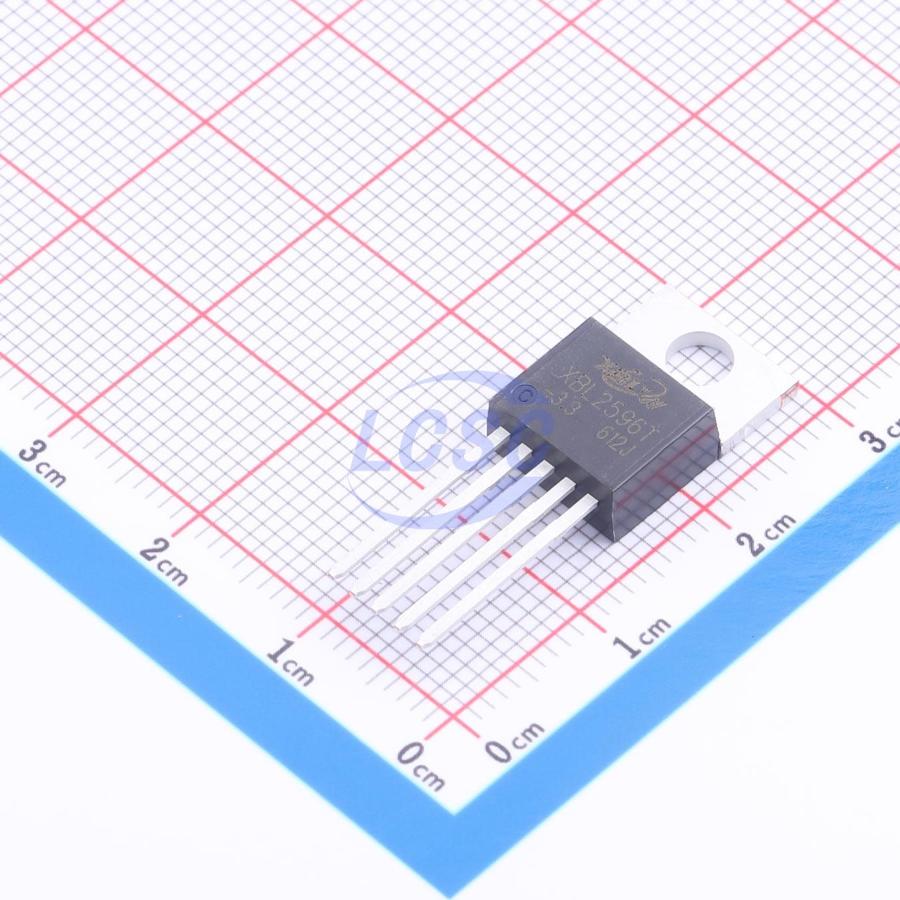

XBL2596T-3.3
150kHz Step-down type Fixed 3.3V 3A TO-220-5L Voltage Regulators - DC DC Switching Regulators RoHS
TO-220-5LROHS CompliantActive
150kHz fixed-frequency PWM buck DC-DC converter, drives 3A load, high efficiency low ripple, excellent line and load regulation
- Manufacturer
- XBLW
- Manufacturer part #
- XBL2596T-3.3
- Store part #
- C54525276
- Package / case
- TO-220-5L
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C54525276
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.67 | ₹203.35 |
| 50+ | ₹32.14 | ₹1,607.00 |
| 150+ | ₹28.47 | ₹4,270.50 |
| 500+ | ₹23.91 | ₹11,955.00 |
| 2,000+ | ₹21.87 | ₹43,740.00 |
| 5,000+ | ₹20.65 | ₹1,03,250.00 |
5 × ₹40.67
₹203.35
excl. GST
₹239.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
XBL2596T-3.3
₹203.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 150kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Fixed
- Topology
- Buck
- Operating Voltage
- 4.5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3.3V
- Output Current
- 3A
- Quiescent Current
- 4.5mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.804 g
Overview
XBL2596 is a 150KHz fixed-frequency PWM step-down DC/DC converter capable of driving a 3A load, featuring high efficiency, low ripple, and excellent line and load regulation. This regulator requires minimal external components, is easy to use, and integrates internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit enables linear duty cycle adjustment from 0% to 100%. Enable functionality and overcurrent protection are integrated internally. When the secondary current limit is triggered, the operating frequency reduces from 150KHz to 50KHz. A built-in compensation module minimizes the number of external components required.
Applications
- Portable DVD
- LCD monitor / TV
- Battery charger
- ADSL modem
- Telecom / networking equipment
Key features
- Wide input voltage range: 4.5V to 40V
- Available in 3.3V, 5V, 12V and adjustable versions
- Output voltage adjustable from 1.23V to 37V
- Maximum duty cycle 100%
- Minimum dropout voltage 1.0V
- Fixed 150KHz switching frequency
- Constant 3A output current capability
- Internally optimized power transistor
- High efficiency
- TTL shutdown capability
- Excellent line and load regulation
- Built-in thermal shutdown
- Built-in current limiting
- Built-in output short-circuit protection
- Available in TO220-5L/TO263-5L packages
