XBLWDatasheet (PDF)

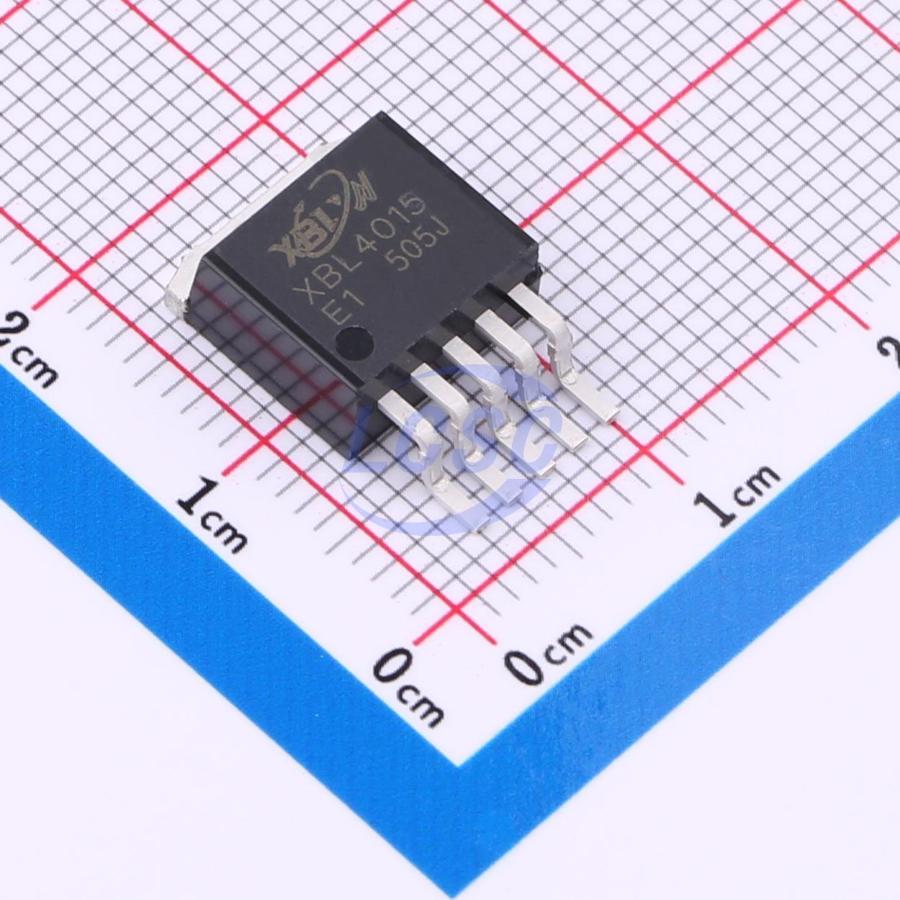

XBL4015E1DTR
Step-down type 180kHz Adjustable 1.25V~32V 5A TO-263-5L Voltage Regulators - DC DC Switching Regulators RoHS
TO-263-5LROHS CompliantActive
5A 180KHz PWM Buck DC/DC Converter
- Manufacturer
- XBLW
- Manufacturer part #
- XBL4015E1DTR
- Store part #
- C45351500
- Package / case
- TO-263-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,004 in stock
#C45351500
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.92 | ₹55.92 |
| 10+ | ₹50.12 | ₹501.20 |
| 30+ | ₹47.32 | ₹1,419.60 |
| 100+ | ₹44.31 | ₹4,431.00 |
| 500+ | ₹42.59 | ₹21,295.00 |
| 800+ | ₹41.73 | ₹33,384.00 |
1 × ₹55.92
₹55.92
excl. GST
₹65.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 800 per reel
XBL4015E1DTR
₹55.92 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Number of Outputs
- 1
- Frequency - Switching
- 180kHz
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~36V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.25V~32V
- Output Current
- 5A
- Quiescent Current
- 2.8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.059 g
Overview
XBL4015 is a 180KHz fixed-frequency PWM buck (step-down) DC/DC converter capable of efficiently driving a 5A load, featuring low ripple and excellent line and load regulation. The regulator requires a minimum number of external components for ease of use, incorporating internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit enables linear duty cycle adjustment from 0 to 100%. Built-in overcurrent protection is included; during short-circuit protection, the operating frequency reduces from 180KHz to 48KHz. An internal compensation module is integrated to minimize external component count.
Applications
- Portable DVD
- LCD monitor/TV
- Battery charger
- ADSL modem
- Telecom/networking equipment
Key features
- Wide input voltage range: 4.5V ~ 36V
- Adjustable output voltage: 1.25V ~ 32V
- Maximum duty cycle: 100%
- Minimum dropout voltage: 0.3V
- Fixed 180KHz switching frequency
- 5A continuous output current capability
- Internally optimized power MOSFET
- Up to 96% high efficiency
- VC with TTL compatibility
- Excellent line and load regulation
- Built-in thermal shutdown protection
- Built-in current limiting protection
- Built-in output short-circuit protection
- TO-263-5L package
